Cardio WAVE EXCITE +: Service & maintenance manual - rev. 4.1
Pagina 7.45

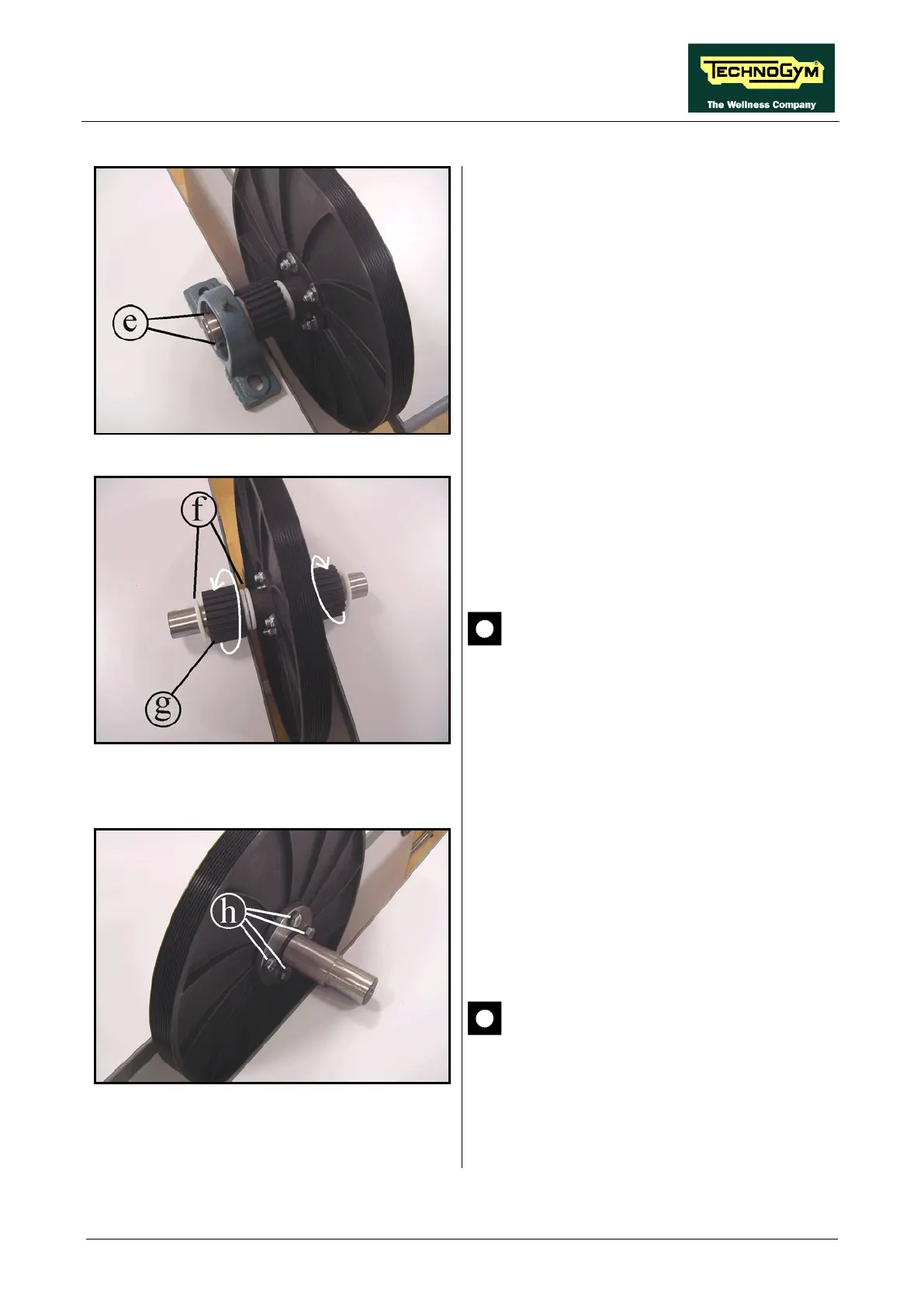

Figure 7.16-1
10. Back off the grub screws (e)
hexagonal wrench, on both the bearings.
11. Remove the bearings from the primary shaft
Figure 7.16-2
12. Remove from the shaft the plastic washers (f)
and the free wheel (g) (
the washers are one
on the external side and two on the internal
side of the free wheel).
CAUTION: During reassembly, take
care to fit the free wheels in the correct
direction, so that they are able to rotate
freely in the direction indicated by the
arrows.
Figure 7.16-3
13. Back off the 4 screws (h) locking down the
nuts on the o
pposite side of the pulley, using
a 13mm wrench
14. Remove the pulley from the shaft.
To reassemble the primary shaft assembly, carry
out the above steps in reverse order.
CAUTION: After completing the
reassembly, carry out the adjustment
procedure described in paragraphs: 8.1.
“Belt tension” and 8.4. “
connecting the primary and secondary
shafts”.
