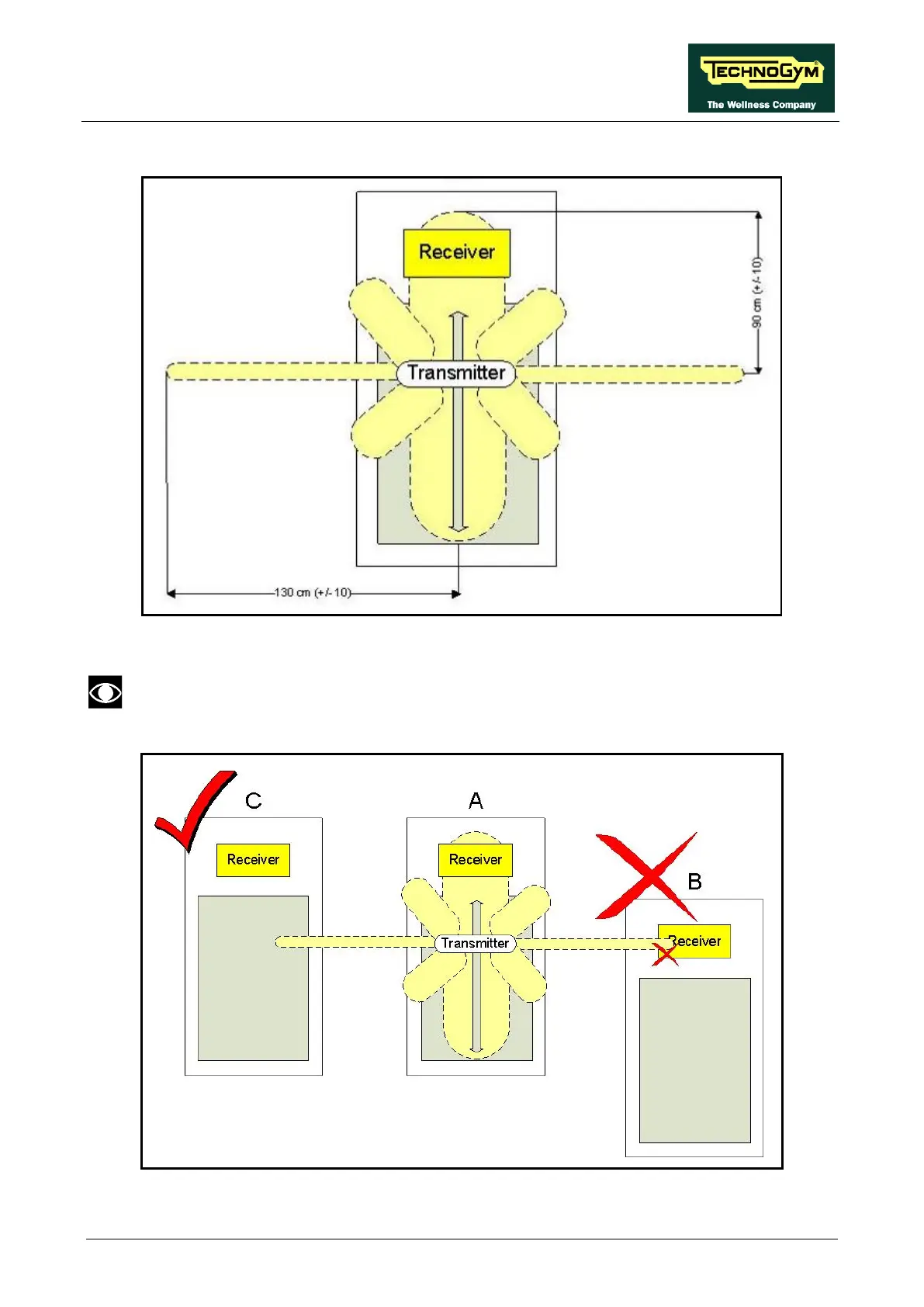

(2) Take care of the following diagram to correctly position the machines:
Figure 6.15-1
The active area of the transmitter is wider on the lateral side (130 cm) instead of the
front or the back side (90 cm). Take care of the following diagram:
Figure 6.15-2
