Chapter 1 TP03 Introduction
Introduction
1-4
Fig 3 Fig 4

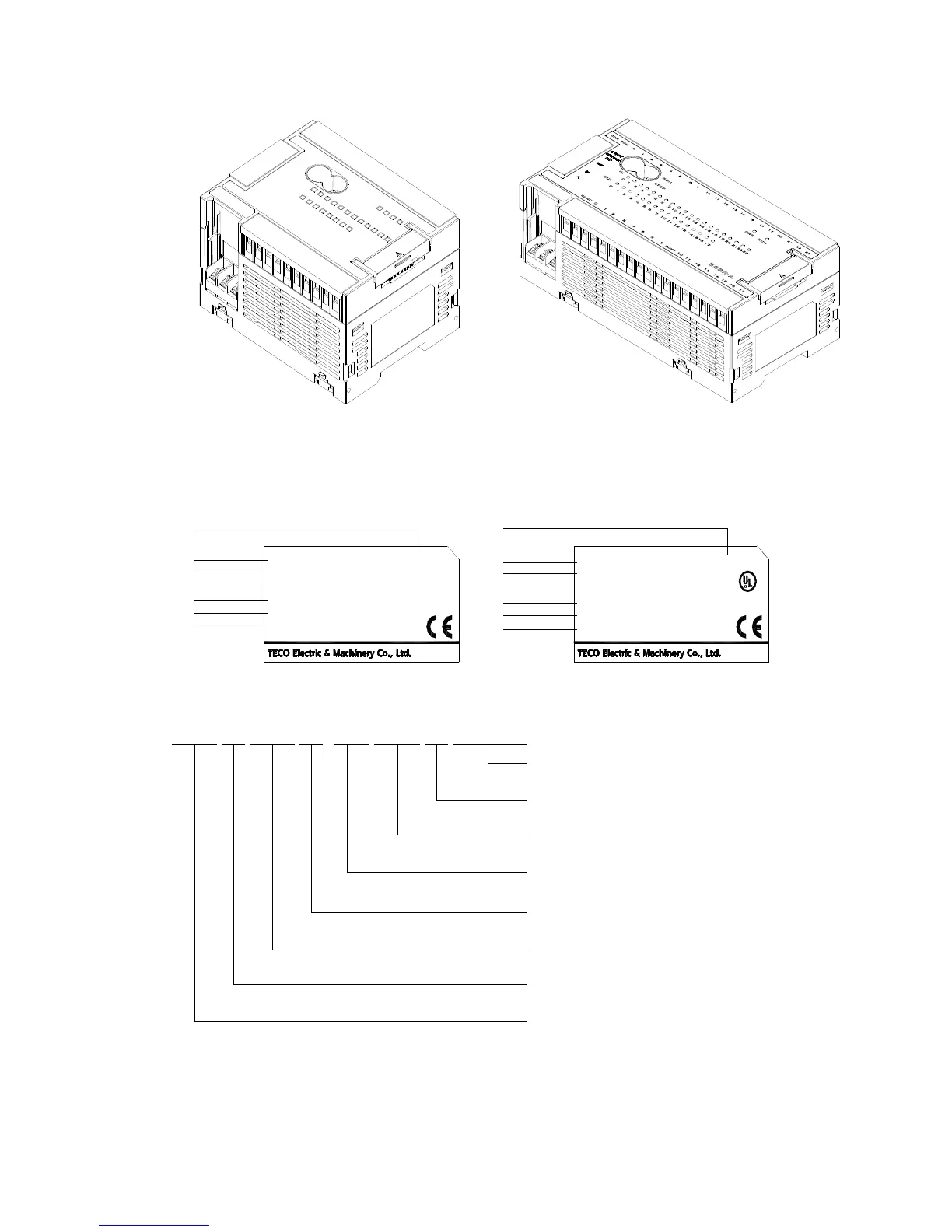

Nameplate description
Model : TP03-60HR-A VX.X
Power : 100~240VAC 50/60Hz
50VAmax.
Input : 24VDC/7mA
Output : 250VAC/2A; DC30V/2A
AUX. Output: 24VDC/500mAmax.
Input specification
Auxi l i ar y power output
Output specification
TP03 model
Power specification
Sof t ware versi on
Model : TP03-60HR-A VX.X
Power : 100~240VAC 50/60Hz
50VAmax.
Input : 24VDC/7mA
Output : 250VAC/2A; DC30V/2A
AUX. Output: 24VDC/500mAmax.
Input specification
Output specification
Auxi l i ar y power output
C
Sof t ware versi on
Power specification
TP03 model
LISTED 85FM
IND. CONT. EQ.
E205406
C
R
US
CC
Series number/Bar Code description
(21) Y WW A BCD XXX 28 01020304
Hardware version (01~99)
Software version(01~99)
Manufacture s/n000~999
Product code (000~999)
Producing plant code(0)
Producing Week (01~53)
Producing year (0~9)
Fixed code (21)
