Chapter 3 Expansion unit specification
expansion unit 3-24

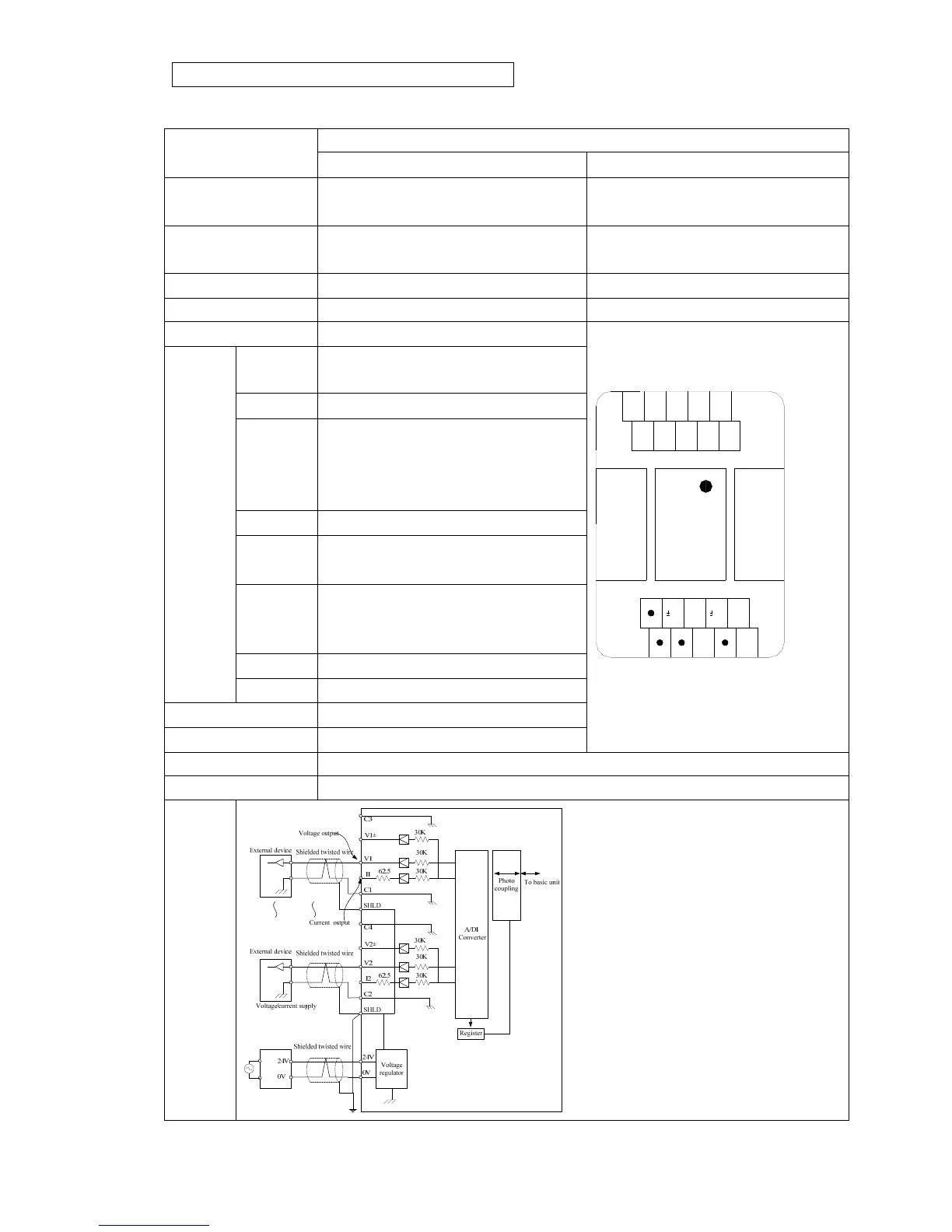

2.5.5 TP02-2DA+ Specification
Specification
Item
Voltage Current
Analog output range
0V~10V or 1V~5V, external impendence
should be less than 500Ω
0mA~20mA or 4mA~20Ma, Principle
figure 500Ω.
Data range
0000(0V)~4000(10V) or
0000(1V)~2000(5V)
0000(0mA)~2000(20mA) or
0000(4mA)~2000(20mA)
Resolution 2.5 mV 10 μA
Accuracy ±5% or less (at 25 )℃ ±1% or less (0~55 )℃
Transmit speed 1scan time/ 4 Channel
V1~V2 Voltage output terminal, input voltage
signal between VC
C1~C2 Common ground
V1±~V2± Voltage output terminal, output voltage
signal (-10V~+10V)between V and C
terminal (V1,V2 and V1±,V2± can not
be used at same time)
C3~C4 Common ground
I1~I2 output terminals for Current signal
between I,C .
SHLD
Please connect Shielded terminal to FG
on the House. And all shielded terminals
are internally connected.
24V 24VDC Power input terminal(+)
Terminal
block
0V 24VDC Power input terminal(-)
Power indicator LED (5V power LED: Green)
Internal power supply 5VDC:Max current 50mA
V1 V2
C4C3
SHLDSHLD
Power
11
0V
+24V V1
12
SHLD SHLD
V2C1 C2
Outline figure
External power 24VDC±10%(Consumption current: Max 100 mA)
Accessory Installation manual, Expansion cable(TP-042EC : 4cm，14pin)
Principle
figure
To Next Page
