TECO TP03 PLC User Manual

Chapter 3 Expansion unit specification
expansion unit 3-23

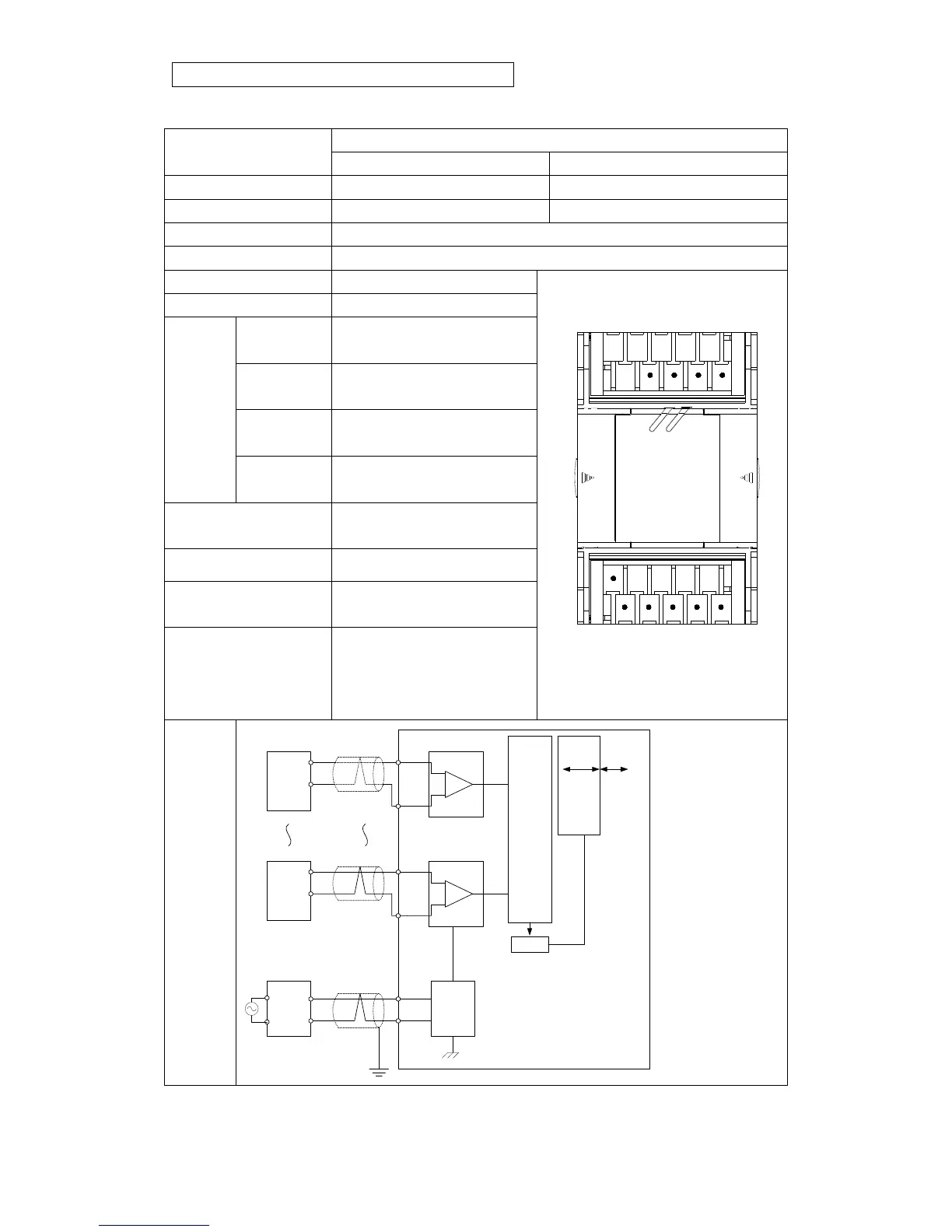

2.5.4 TP03-4TM Specification
Specification
Item
J-type K-type
Temperature range 0℃~700℃ 0℃~1200℃
Digital output 0000~4000 0000~4000
Resolution 2.5 mV
Accuracy ±0.5% FSR (0℃~1200 ) ℃
Sensor type Thermocouple J-type /K-type
Transmit speed 1scan time/ 4 Channel
TC0+~TC3+
Thermistor (J,K type) signal
input+ terminal
TC0-~TC3-
Thermistor (J,K type) signal
input- terminal
24V
24VDCPower input
terminal(+)
Terminal
block
0V 24VDCPower input
terminal(-)
Power indicator
PWR:+24 V Power LED(Green)
LNK: Link LED(Green)
internal power 5VDC:Max current 50mA
External power
24VDC±20% (Consumption
current: Max 100 mA)
Accessory
Installation manual,
Expansion
cable(TP03-304EC : 6cm,
26pin)
TC2+ TC3+
TC2- TC3-
TC0-
TC1+
TC1-
TC0++24V
PWR
0V
LNK
Outline figure
Principle
figure
A/Dl
Converter
coupling
Register
0V
24V
To basic unit
J，K
J，K
TC0+
TC0-
TC3+
TC3-
0V
24V
Voltage
regulator
External device
Shielded twisted wire
External device
Shielded twisted wire
External device
Shielded twisted wire
