TECO TP03 PLC User Manual

Chapter 3 Expansion unit specification
expansion unit 3-26

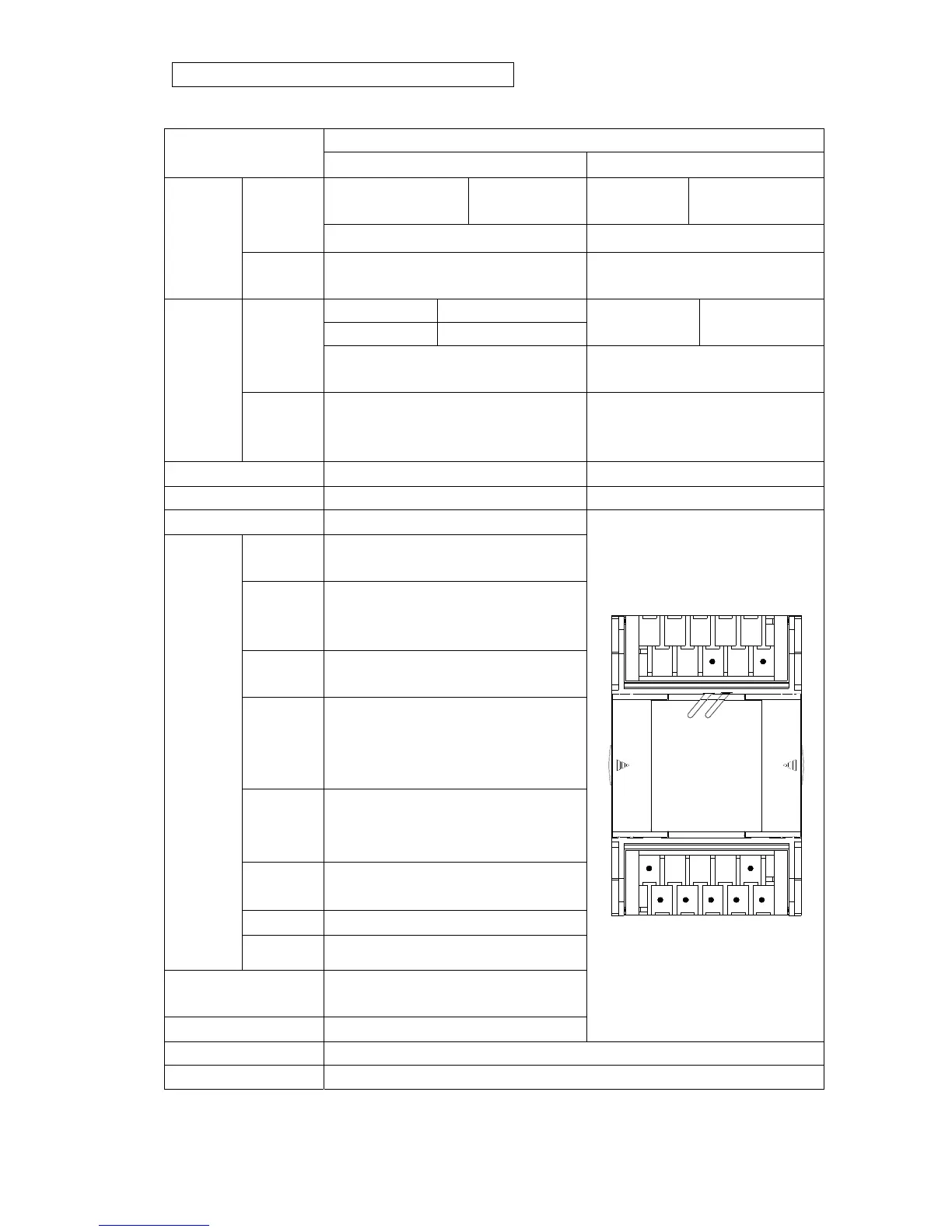

2.5.7 TP03-3MA Specification
Specification
Item
Voltage Current
Vin0-COM0
Vin1-COM1
0V~10V or
1V~5V
Iin0-COM0
Iin1-COM1
0mA~20mA or
4mA~20mA ,
Input
range
Input impedance 30KΩ Input impedance 250Ω
Input
Data
range
0000(0V)~4000(10V) or
0000(1V)~2000(5V)
0000(0mA)~2000(20mA) or
0000(4mA)~2000(20mA)
Vout -COM 0V~10V or 1V~5V
Vout± -COM -10V~ +10V.
Iout -COM 0mA~20mA or
4mA~20mA.
Output
range
external impendence should be more
than 500Ω
external impendence should be less
than 500Ω.
Output
Data
range
0000(0V) ~ 4000(10V) or
0000(1V) ~ 2000(5V) or
0000(-10V)~4000(+10V)
0000(0mA) ~ 2000(20mA) or
0000(4mA) ~ 2000(20mA)
Resolution 2.5 mV 10 μA
Accuracy ±1% or less (at 25 )℃ ±1% or less (0~55 )℃
Transmission speed 1scan time/ 3 Channel
Vin0～Vin1
Voltage output terminal, output voltage
signal between terminal V and C.
Iin0～Iin1
Current input terminals for Current
signal between I,C and short circuit V,
I.
Com0~Co
m1
Common ground for Vin0~Vin1or
Iin1~Iin1
Vout or
Vout±
Voltage output terminal, output voltage
signal (-10V~+10V)between Vout
and Cout terminal (Vout and Vout±
can not be used at same time)
Iout
Current output terminal ,output current
signal(0~20mA) between Iout and
Com.
Com Common ground for Vout, Vout±,Iout
24V 24VCD input terminal(+)
Terminal
block
0V 24VCD input terminal(-)
Power indicator
PWR:+24 V Power LED(Green)
LNK: Link LED(Green)
internal power supply 5VDC:Max current 30mA
V2
V2㊣
C2
V0 C0 V1 C1
+24V
PWR
0V
I0 I1
LNK
Outline figure
External power supply 24VDC±20%(Consumption current: Max 85 mA)
Accessory Installation manual, Expansion cable(TP03-304EC : 6cm, 26pin)
