TECO TP03 PLC User Manual

Chapter 3 Expansion unit specification
expansion unit 3-6

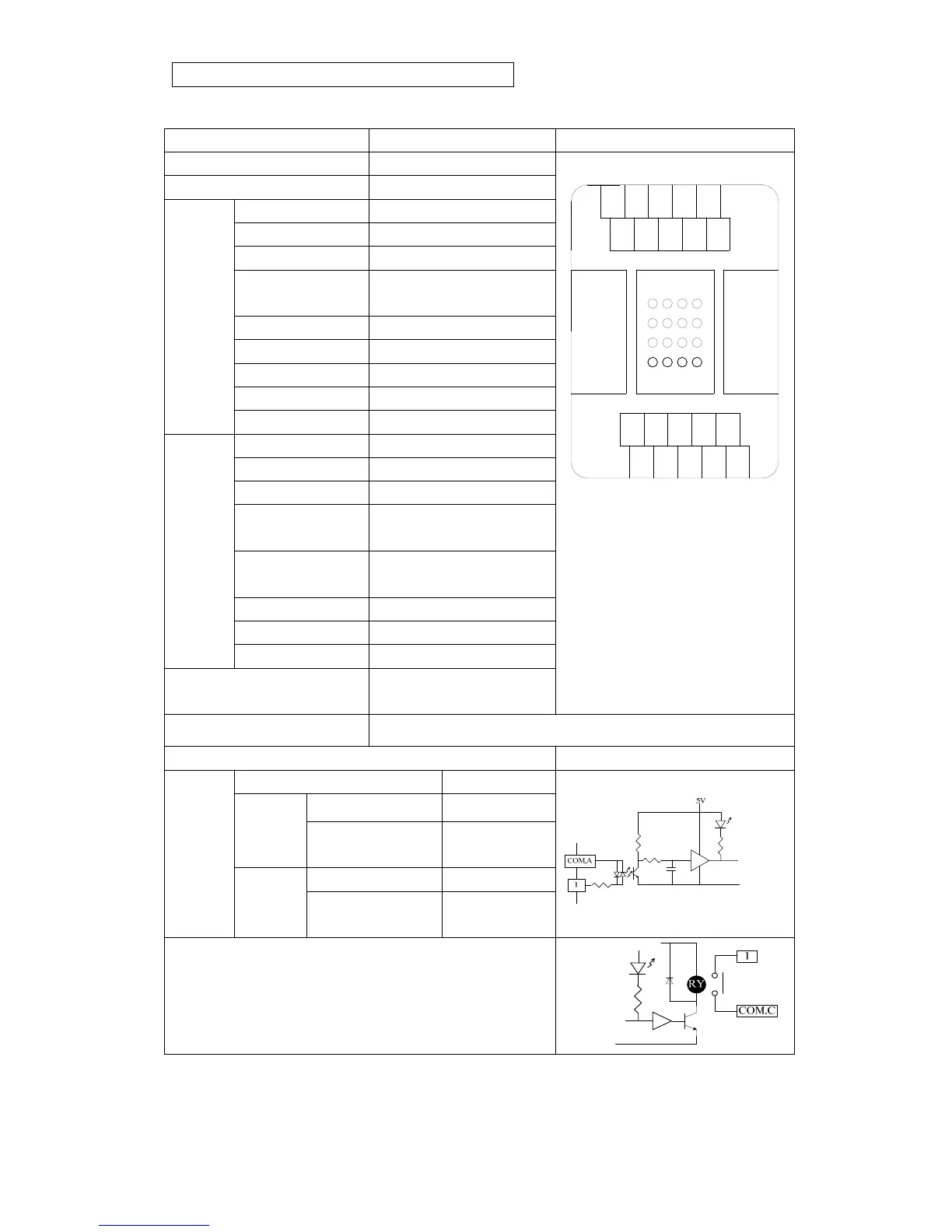

1.3.4 TP02-16EMR Specification
Item Specification Outline figure
Input point 8
Output point 8
Voltage AC250V/DC30V
Current 2A/1 Point; 5A/1 common
type Relay
Mechanical
lifespan
20,000,000 times
Electric lifespan 150,000 times @ 3A
Responding time Below 10ms
Min load 1 mA @ 5vDC
Output indicator LED lit when output ON
Output
Insulation method Relay
Voltage
DC24V +10%～-20%
Current 4.8mA @24VDC
Impedance 5 kΩ Typ.
ON level
Above 20Vdc (3.5mA)
(min.)
OFF level
Below 8Vdc (1.5mA)
(max.)
Responding time 10ms
Indicator LED lit when input ON
Input
Insulation method Photo-coupling insulation
Internal power supply:
Current consumption
For 5VDC: Max 50mA
For 24VDC: Max 80mA
Upside terminal block
3
2
1
4
5
COMB
6
COMC
7
8
COMA
7
COMA
2
1
4
6
53
8
Downside terminal block
accessory Expansion cable(TP-042EC : 4cm，14pin)
Internal circuit
Symbol Content
1 ~ 8 Input terminal
Upside
COM.A
Common
terminal
1 ~ 8 Output terminal
Terminal
block
Downside
COM.B~COM.C
Common
terminal
Input
Note:
a. 4 points share one common terminal.
b. The common terminals with same symbol in upside and
downside are not connected internally.
Output
