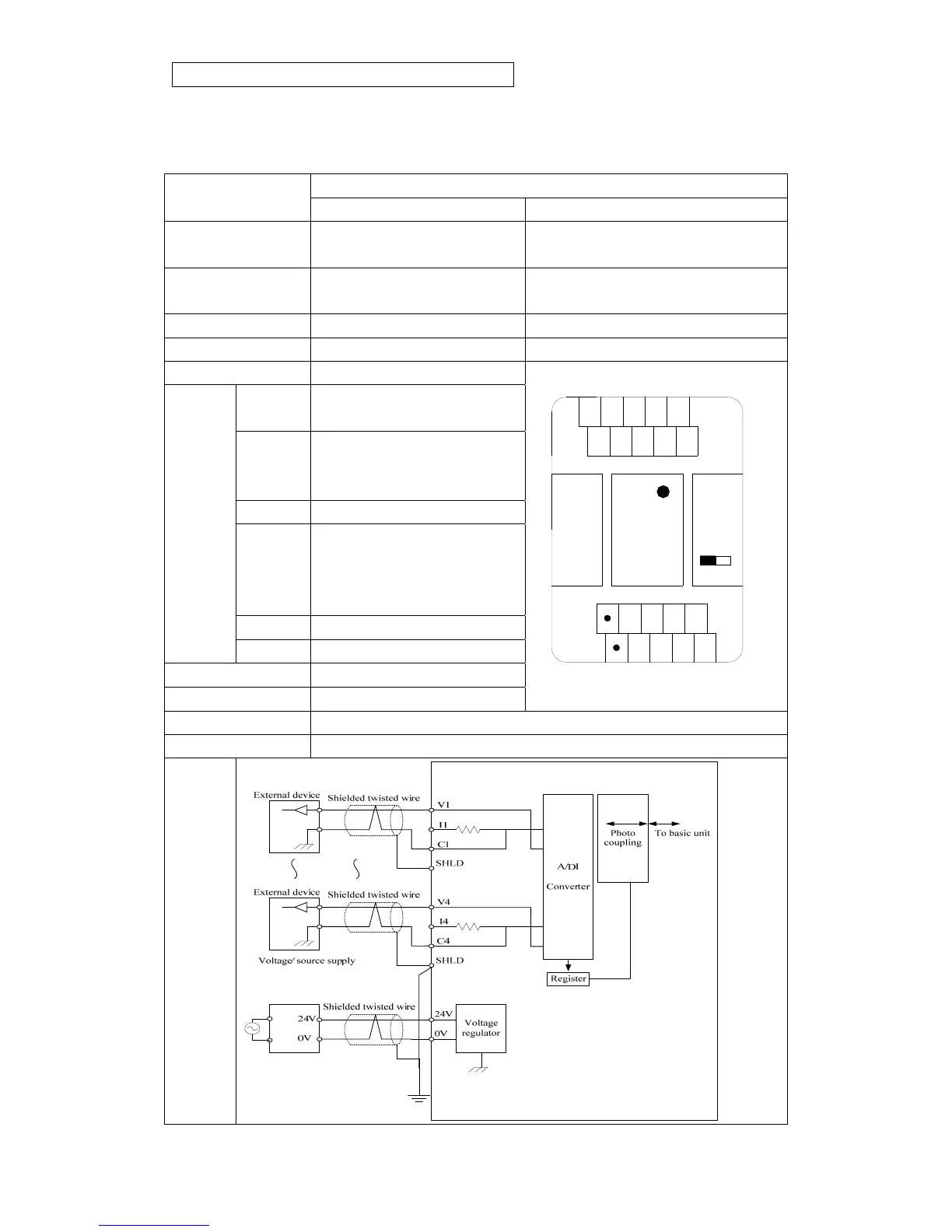

2.5 Electric Specification
2.5.1 TP02-4AD+ Specification
Specification
Item
Voltage Current
Analog input range
0V~10V or 1V~5V ,
Input impedance 30KΩ
0mA~20mA or 4mA~20mA ,
Input impedance 250Ω
Data range
0000(0V)~4000(10V) or
0000(1V)~2000(5V)
0000(0mA)~2000(20mA)or
0000(4mA)~2000(20mA)
Resolution 2.5 mV 10 μA
Accuracy ±5% or less(at 25 )℃ ±1%or less(at 0~55 ℃)
Transmit speed 1scan time/ 4 Channel
V1~V4
Voltage input terminals for
Voltage signal between V,C.
I1~I4
Current input terminals for
Current signal between I,C and
short circuit V, I.
C1~C4 V or I Common terminal
SHLD
Please connect Shielded
terminal to FG on the House.
And all shielded terminals are
internally connected.
24V 24VDC input terminal (+)
Terminal
block
0V 24VDC input terminal (-)
Power indicator LED (5V power LED: Green)
Internal power 5VDC:Max current 50mA
V3 V4 C4C3
Power
11
0V
+24V V1
12
V2C1 C2
I3
I4
Switch
SHLD
SHLDSHLD
SHLD
Outline figure
External power 24VDC±10%(Consumption current: Max 100 mA)
Accessory Installation manual, Expansion cable(TP-042EC : 4cm，14pin)
Principle
figure
To Next Page
