Chapter 1 TP03 Introduction
Introduction
1-9

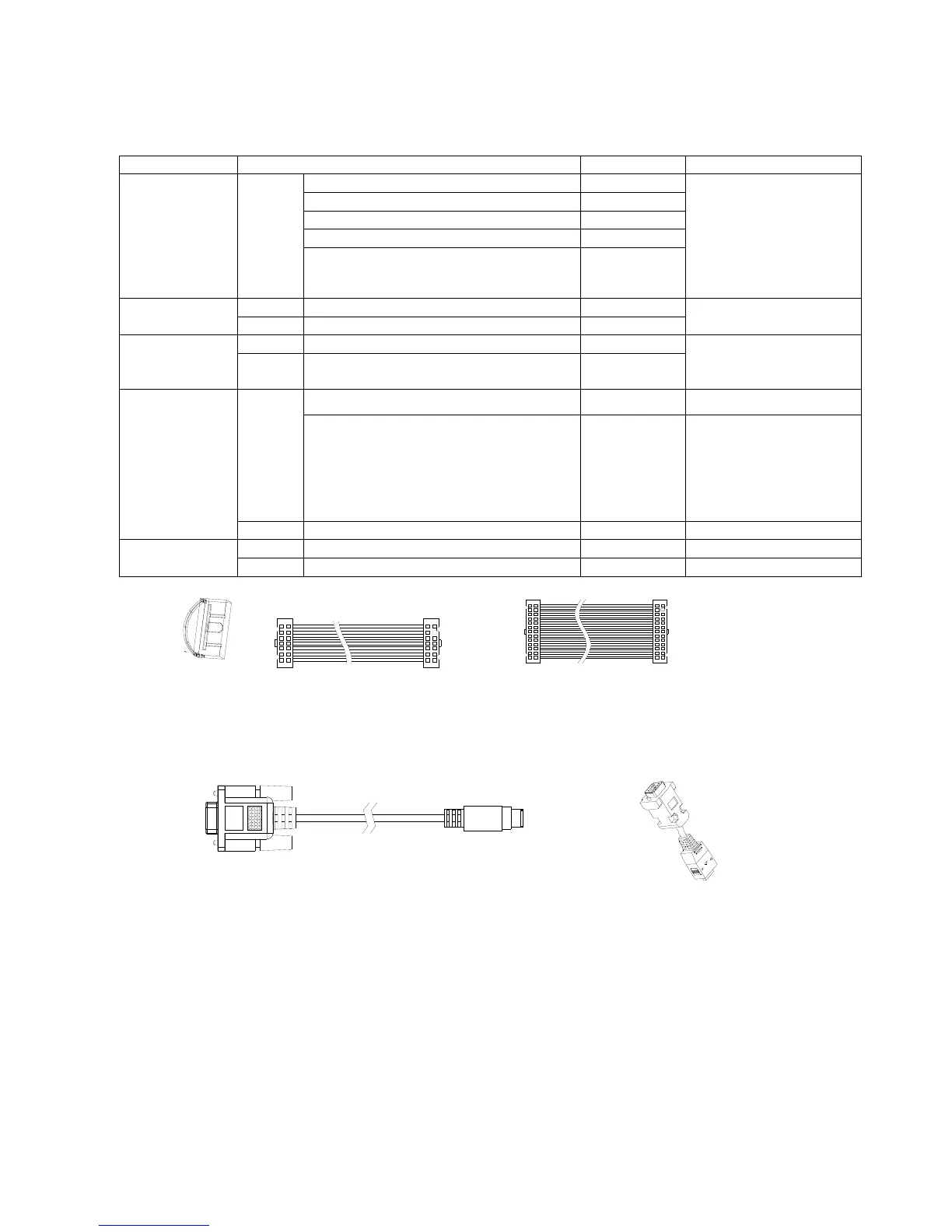

2.4 Accessory list
Built-in accessory
description Type No. Remark
Terminal connector (Fig 24) TP-200EC
Battery ( for 5years)
RS-485 built-in (H type only)
Standard cover for Expansion card TP03-0CV
Basic module Built-in
Installation manual
Install TP-200EC into the
connector in the last
expansion module in
order to form a I/O
loop,if no expansion
module must install into
the TP03 host
Built-in 4cm cable for expansion module (Fig 25) TP-042EC TP02 expansion
module
Option 40cm cable for expansion module (Fig 25) TP-402EC
14 pins, Only for TP02
expansion module
Built-in 6cm cable for expansion module (Fig 26) TP03-304EC
TP03 expansion
module
Option
40cm cable for expansion module (Fig
26)
TP03-340EC
26 pins, Only for TP03
expansion module
1.8M cable(black) (Fig 27) TP03-302PC
Built-in
Compact Disk TP03-CD06
Include:
TP03-PC
TP03-DPA
PDF files of instruction
manual & operation
manual
PC06
Option PDA adapter (Fig 28) JNSWPDA
Built-in 1.8M cable (grey) (Fig 27) TP03-302MC
OP07/OP08
Option 5M cable (grey) (Fig 27) TP03-305MC Only for OP08
Profile referring figure:
Fig 24 Fig 25 Fig 26
TP-200EC TP-042EC(4cm)/ TP-402EC(40cm) TP03-304EC(6cm)/TP03-340EC(40cm)
Fig 27
Fig 28 TP03-302PC(black) / TP03-302MC(grey)
(both items are different in outline, color and internal wiring)
TP03-305MC(grey)
(same outline and color as TP03-302MC, but different in
length and internal wiring)
PDA Adapter (JNSWPDA)
