TECO TP03 PLC User Manual

Chapter 3 Expansion unit specification
expansion unit 3-21

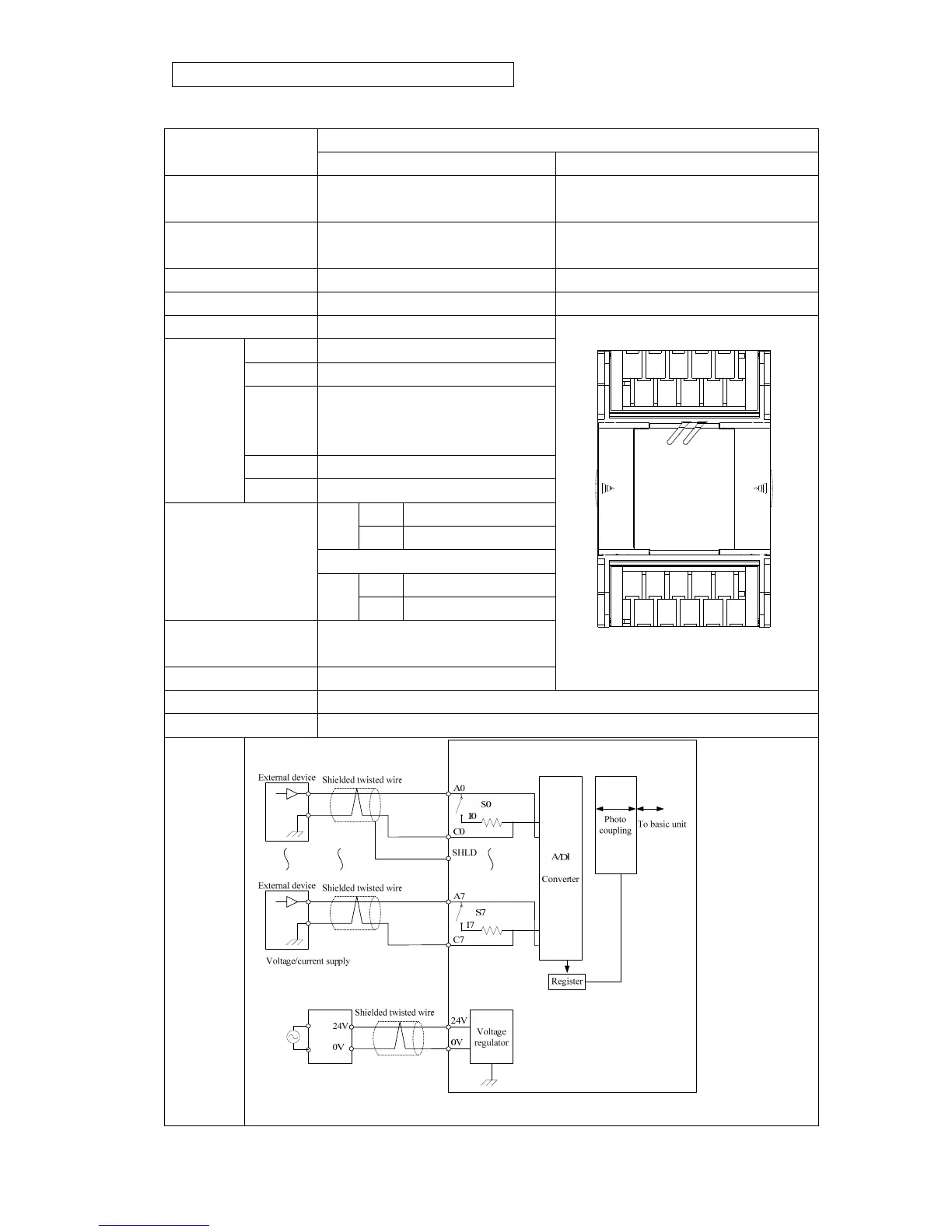

2.5.2 TP03-8AD Specification
Specification
Item
Voltage Current
Analog input range
0V~10V or 1V~5V ,
Input impedance 30KΩ
0mA~20mA or 4mA~20mA ,
Input impedance 250Ω
Data range
0000(0V)~4000(10V)or
0000(1V)~2000(5V)
0000(0mA)~2000(20mA)or
0000(4mA)~2000(20mA)
Resolution 2.5 mV 10 μA
Accuracy ±1% or less(at 25 )℃ ±1%or less(at 0~55 )℃
Transmit speed 1scan time/ 8 Channel
A0~A7 Analog input terminal
C0~C7 Common terminal for A0~A7
SHLD
Please connect Shielded terminal to
FG on the House. And all shielded
terminals are internally connected.
24V
24VDC input terminal(+)
Terminal
block
0V 24VDC input terminal(-)
I A0: Current input
S0
V A0: Voltage input
:
I A7: Current input
Voltage /Current input
switch
S7
V A7: Voltage input
Power indicator
PWR:+24 V Power LED(Green)
LNK: Link LED(Green)
Internal power 5VDC:Max current 30mA
A4
shld
shld
C4 C5
C6
C7
A6
A5 A7
A0
+24V
0V
A3A2A1
C3
PWR
C1C0 C2
LNK
Outline figure
External power 24VDC±10% (Consumption current: Max 50mA)
Accessory Installation manual, Expansion cable(TP03-304EC : 6cm, 26pin)
Principle
figure
