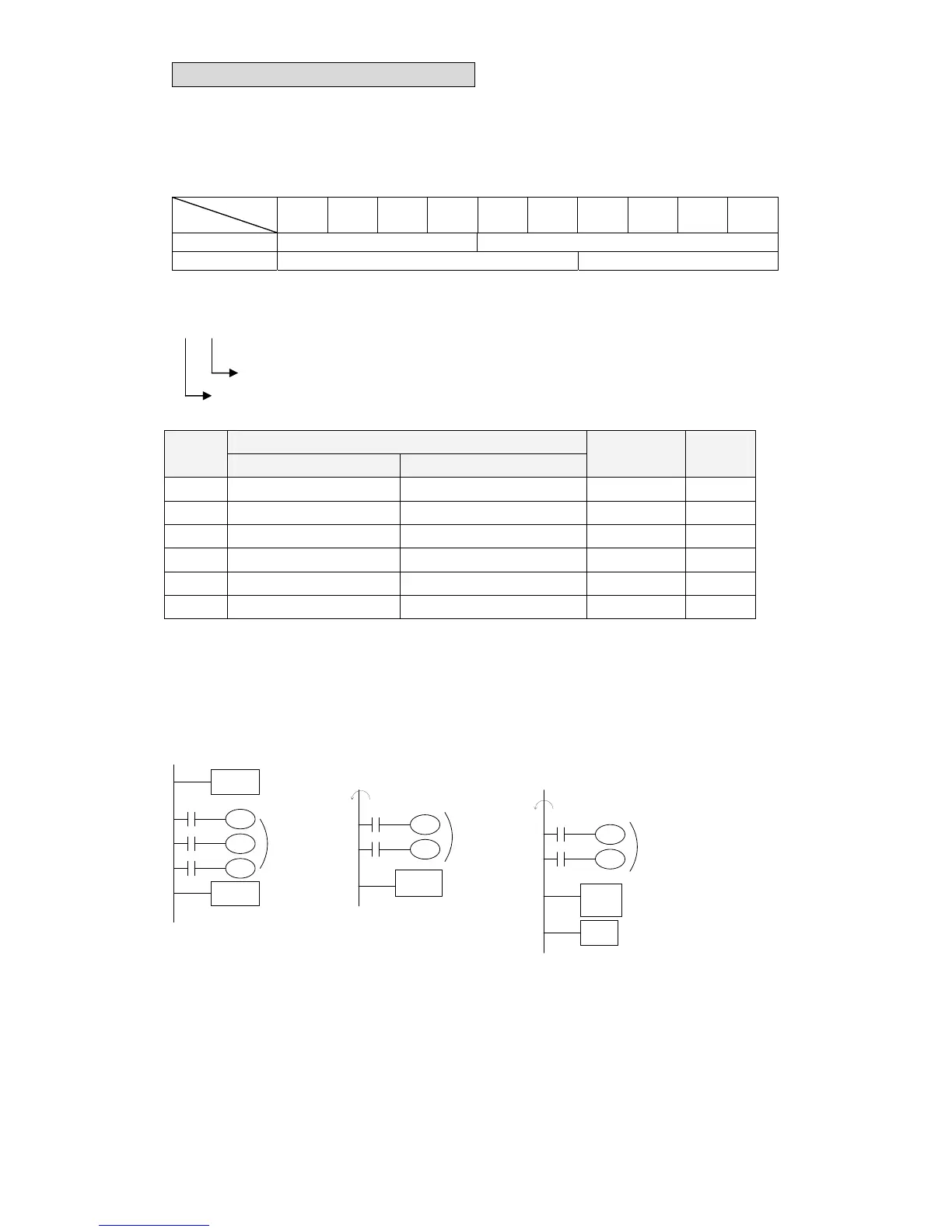

Chapter 2 Basic Unit Specification
5. Interruption input
2-31
5 Interruption Input
The input X000~X005 can be set to do interruption.
Basic specification
Type
Item
-14S -20S -26S -36S -20M -30M -20H -30H -40H -60H
Input X000~X003 X000~X005
Pulse width 50us min. 5us min.
Interruption definition:
I x 0 x
0: Falling edge interruption 1: Rising edge interruption
0~5: X000~X005
Interruption pointer
Input
Rising edge interruption Falling edge interruption
Forbid
Interruption
Pulse
Snap
X000 I001 I000 M8050 M8170
X001 I101 I100 M8051 M8171
X002 I201 I200 M8052 M8172
X003 I301 I300 M8053 M8173
X004 I401 I400 M8054 M8174
X005 I501 I500 M8055 M8175
z The pointer number can not be used repeatedly.
As for the same input, the corresponding rising edge interruption and falling edge interruption
can not be used in a same program.
z M8050~M8055 “ON” to ban corresponding input interruption.
When X000~X005 generates a pulse, the corresponding relay will be set immediately.
Basic program for interruption
F 04 EI
Main
program
Enable
interruption
End
Pointer
I 001
Pointer
I 100
FNC 06
FEND
FNC03
IRET
Interruption
X000 rising edge
FNC 03
IRET
END
Interruption return
X000 falling edge
Interruption
Interruption return
Please refer to Application Instruction F04 for programming information.
