Chapter 1 TP03 Introduction
Introduction
1-6

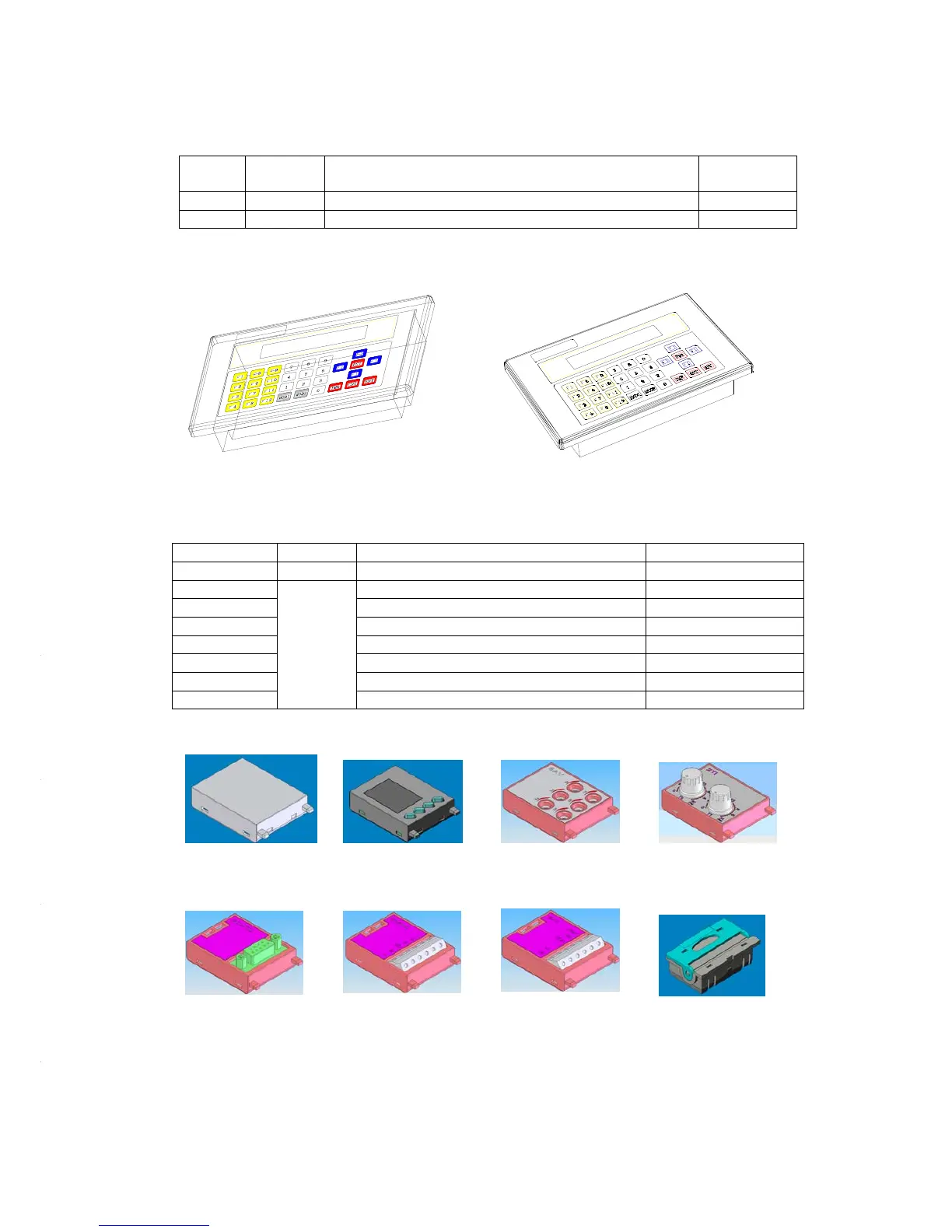

2.2 Expansion module list
Peripheral equipment
Type
No.
Power
Source
Description Remark
OP07 N.A 2 line LCD, timer and counter setting device Fig 5
OP08 24Vdc 2 line LCD, timer and counter setting device Fig 5
Profile referring figure:
OP07/OP08
Fig 5
Expansion card
Type No. description Remark
TP03-0CV Built-in Standard cover (Fig 6)
TP03-1OP Compact timer and counter setting device In developing (Fig 7)
TP03-6AV Analog potentiometer input port*6 In developing (Fig 8)
TP03-2TI Timer (0~30S) input port*2 In developing (Fig 9)
TP03-232RS RS232 communication port (Fig 10)
TP03-485RS RS485 multi-function communication port (Fig 11)
TP03-2AI 0~10V analog input port *2(10 bit) In developing (Fig 12)
TP03-1ME
Optional
Memory pack (Fig 13)
Profile referring figure:
TP03-0CV (Fig 6) TP03-1OP (Fig 7) TP03-6AV (Fig 8) TP03-2TI (Fig 9)
TP03-232RS (Fig 10) TP03-485RS (Fig 11) TP03-2AI (Fig 12) TP03-1ME (Fig 13)
