TECO TP03 PLC User Manual

Chapter 1 TP03 Introduction
Introduction
1-7
 Expansion module
Type No.
Power
Source
In/out
point
Description dimension Remark
TP02-16EXD 16 / 0 16 points DC input
TP02-16EYR 0 / 16 16 points relay output
TP02-16EYT 0 / 16 16 points transistor output
TP02-16EMR 8 / 8
8 points DC input & 8 points relay
output
64 x 90 x
76 mm
TP02-32EMR
N.A
16 / 16
16 points DC input & 16 points
relay output
110 x 90
x 76 mm
TP02-4AD+ 4 / 0
+/-10v,+/-20mA analog input *4
Channel
TP02-2DA+
24Vdc
0 / 2
+/-10v,+/-20mA analog output *2
channel
64 x 90 x
76 mm
These
modules are
all available
for both
TP02 and
TP03.
(Fig 14)
(Fig 15)
(Fig 17)
TP03-01SPS-A
100～
240VAC
N.A
Power source for Expansion
modules
Fig 18
TP03-4RD 4 / 0
PT1000 temperature input *4
channel
In developing
TP03-4TM 4 / 0 J/K temperature input *4 channel In developing
TP03-2DA 0 / 2
+/-10v,+/-20mA analog output
*2 channel
Fig 18
TP03-3MA 2 / 1
+/-20mA analog input *2 channel,
+/-20mA analog output *1 channel
Fig 18
TP03-8AD
24Vdc
8 / 0 +/-20mA analog input *8 channel
57 x 90 x
83 mm
(Fig 14)
(Fig 16)
Fig 18
TP03-16EMR N.A 8 / 8
8 points DC input/ 8 points relay
output module
Fig 16
TP03-16EMT N.A 8 / 8
8 points DC input/ 8 points
transistor output module
Fig 16
TP03-16EXD N.A 8 / 8
8 points DC input/ 8 points relay
output module
Fig 16
TP03-16EYR N.A 8 / 8 16 points relay output module Fig 16
TP03-16EYT N.A 8 / 8 16 points transistor output module Fig 16

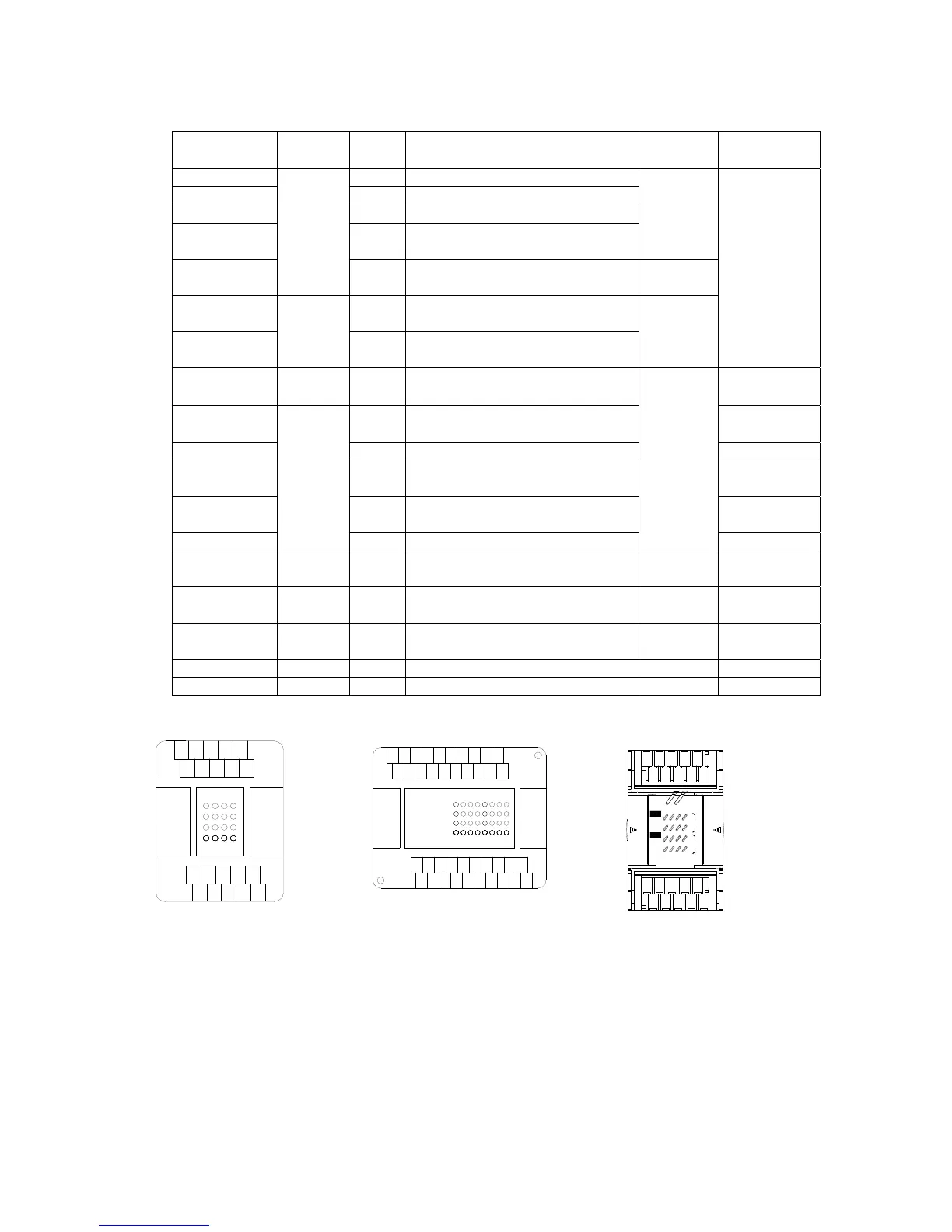

Profile referring figure:
3
2
1
4
5
COMC
6
COMD
8
7
COMA
7
COMA
2
1
46
53
8
COMA
146
COMA
24 1081216
COMc
31
42
5
8
14
16
911
COMd
6
COMb
12
10
137
COMe
15
COMA COMA
35
111
13 1597
0
COMD
2 5
1
COMC
3 4 6
OUT
7
6
COMA
024
COMA
0
4
2
6
1
5
PWR OE
3
7
IN
31 5 7
0123
4657
Fig 14 Fig 15 Fig 16
TP02-16EXD/ TP02-16EYR/
TP02-16EYT/ TP02-16EMR
TP02-32EMR TP03-16EMR/ TP03-16EYR/
TP03-16EXD/TP03-16EMT/
TP03-16EYT
