TECO TP03 PLC - General Specification for Analog Expansion Unit

Chapter 3 Expansion unit specification
expansion unit 3-17
2.2 General Specification for analog expansion unit
Item Analog expansion unit
Storage temperature -25~70 ℃
Ambient
temperature
0~55 ℃
Humidity range 5~90%HR(Non condense)
Installation Install directly or DIN rail
Ground Less than100 ohm
Insulation system Photo-coupling isolation
Insulation
impedance
10M Ω or above, 500V DC (between output terminal and secondary circuit)
Withstand voltage
for insulation
500V AC/1min (between output terminal and secondary circuit)
Indicator LED (5VPower indicator LED: Green)

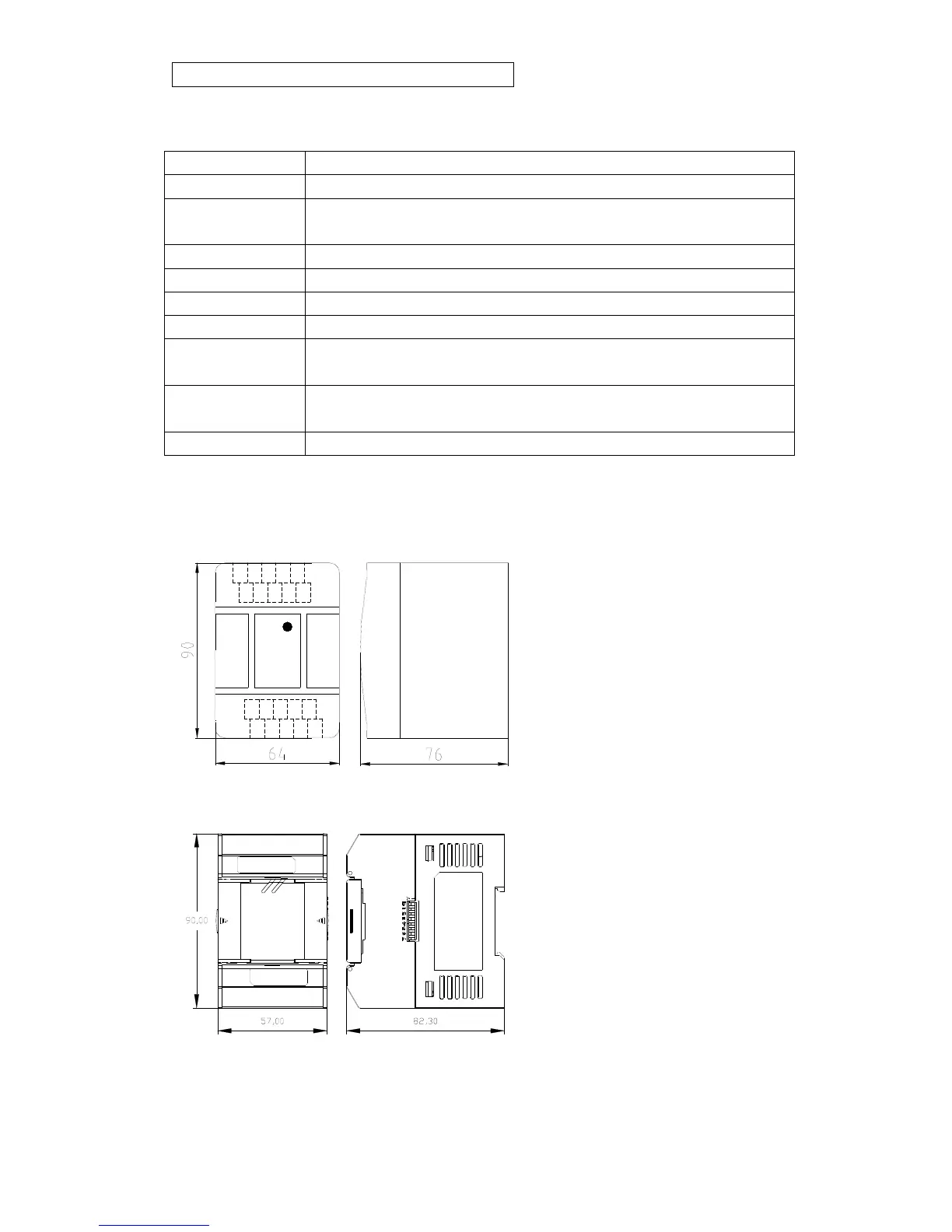

2.3 Dimension
2.3.1 TP02 analog expansion unit
Power
2.3.2 TP03 analog expansion unit
PWR LNK
