Chapter 2 Basic Unit Specification
2. Digital input and output
2-7
With respect to expansion for 20 point basic unit, the input number for the first digital
(analogue) expansion unit should be start from X20 (D8436) and so on. WhileWhile the
output should be start from Y10 (D8381) and so on.
With respect to expansion for 30 point basic unit, the input number for the first digital
(analogue) expansion unit should be start from X20 (D8436) and so on. WhileWhile the
output should be start from Y20 (D8381) and so on.
With respect to expansion for 40 point basic unit, the input number for the first digital
(analogue) expansion unit should be start from X30 (D8436) and so on. WhileWhile the
output should be start from Y20 (D8381) and so on.
With respect to expansion for 60 point basic unit, the input number for the first digital
(analogue) expansion unit should be start from X50 (D8436) and so on. WhileWhile the
output should be start from Y30 (D8381) and so on.

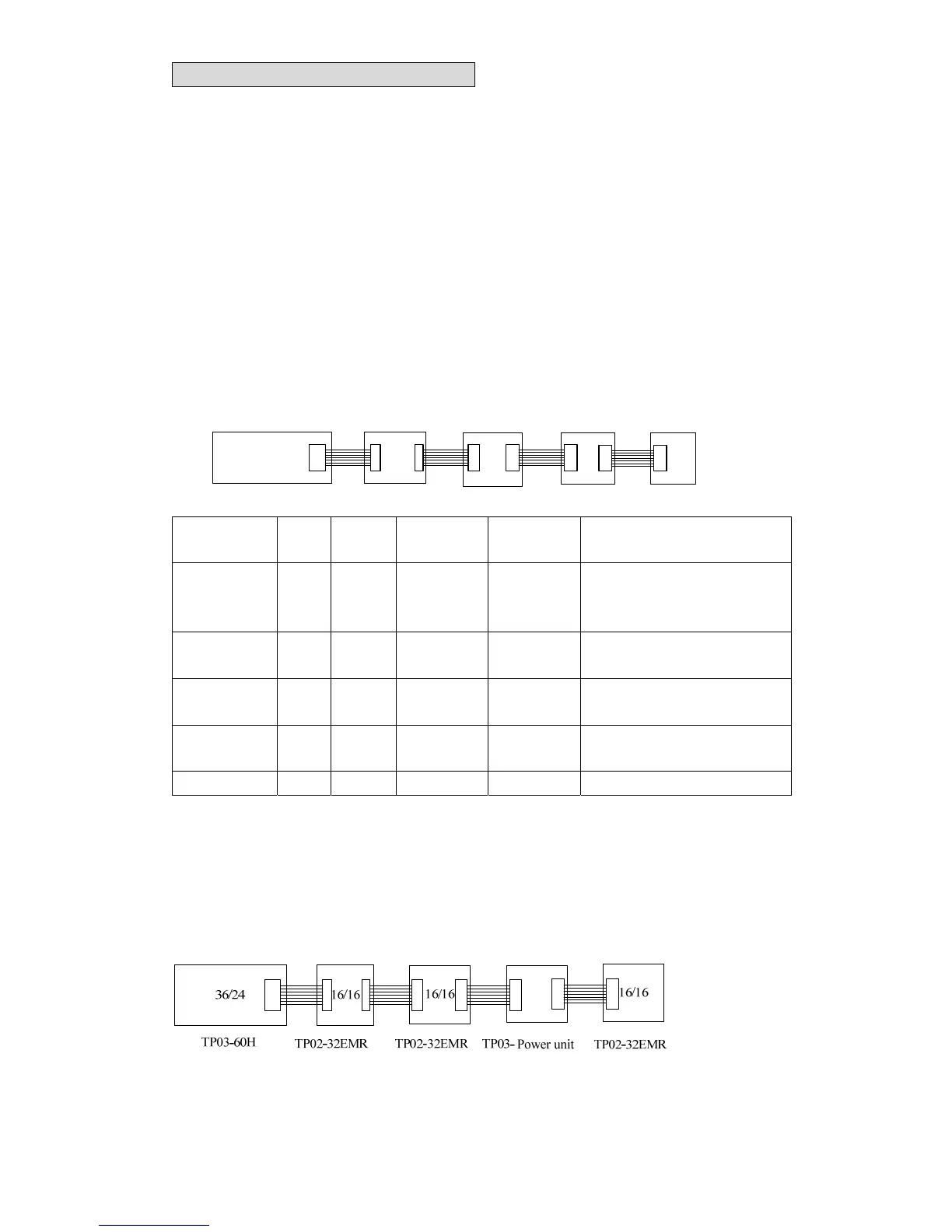

For instance: If the user plans the following system, the number arrangement for I/O is suggested
in the table below:
24/16 0/2
16/0
4/0
TP0
0H
TP03-2DA TP02-16EXD
TP02-4AD+
8/8
TP02-16EMR
Product type
Input
points
Output
points
Input
number
Output
number
Register ( for analogue)
TP03-40H 24 16
X0~X07
X0~X17
X20~X27
Y0~Y7
Y10~Y17
—
TP03-2DA 0 2 — —
D8381 / D8382
(Output channel 1 / channel 2)
TP02-16EXD 16 0
X30~X37
X40~X47
— —
TP02-4AD+ 4 0 — —
D8436/ D8437/ D8438/ D8439
(Input channel 1～/ channel 4)
TP02-16EMR 8 8 X50~X57 Y20~Y27 —
Note:
a. When the basic unit expanded with both the expansion unit TP3-□□□ and
TP02-□□□, TP02-□□□ must be routed after TP3-□□□.
b. The basic unit TP03-20 xxx or TP03-30 xxx can expand maximum 32 points and 3
analogue units.
c. The basic unit TP03-40 xxx or TP03-60 xxx can expand maximum 64 points and 3
analogue units. An external power supply is needed if expansion units are more
than that. (as for the following example, the total I/O reaches 188 points)
