Chapter 2 Basic Unit Specification
3. Comm
unication ports
2-23
C.
W

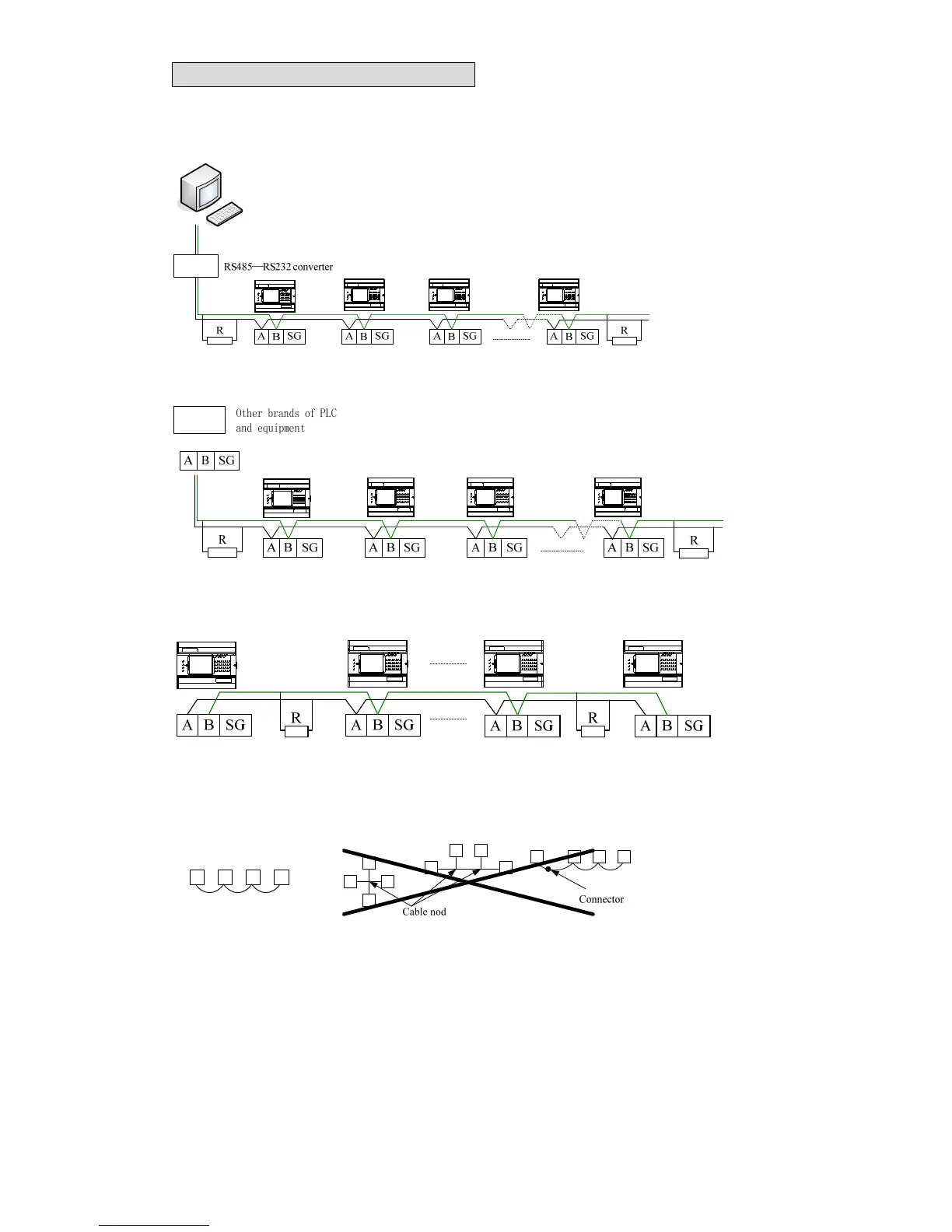

iring for built-in RS485 port or RS485 exp
ansion card.
a.
Linking w
ith controller
Or
b.
DA
T
A
LINK & REMOTE I
/O communication.
Note 1: SHL
terminal should be 3 class
ground or the producti
on will be interrupt
ed to error
operation because of noise.
Note 2: Branch of communication cable should not exceed 3.
○
×
Note 3: R represents
terminal resistor (120
Ω
,1/4W).
44
