Creating and Using Math Waveforms
3- 150
TDS5000 Series User Manual
Overview Control elements and resourcesTo use math waveforms
Take cursor
measurements

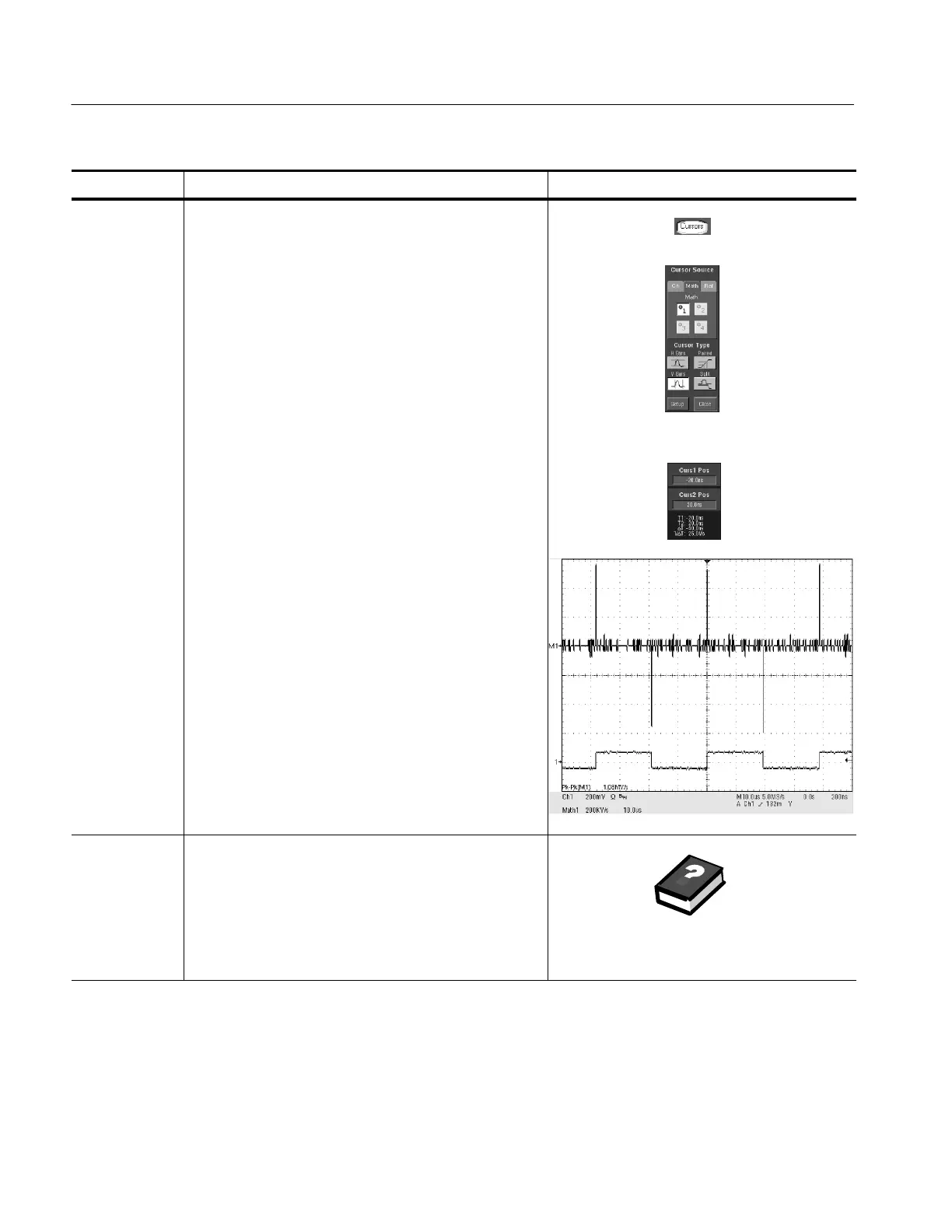

10. Click the Cursor toolbar button to display the cursors
and open the Cursor control window.
11. Select the Math tab, and click the numbered button for
the math waveform that you want to measure.
12. Select the cursor type by clicking either H Bars, V Bars,
Paired, or Split (for more information, see Taking Cursor
Measurements starting on page 3--124).
13. Use the multipurpose knobs to position each cursor on
the math waveform to measure t he feature that interests
you.
14. Read the results in the cursor readout.
The cursor readout is displayed under the multipurpose
readouts or in the upper right corner of the graticule
area.
Note that amplitude measurements on a derivat ive
waveform are in volts per second, and volt-seconds for
an integral waveform measurement.
For further
assistance
15. Access the online help for more assistance on math
waveforms operations.
See Accessing O nline Help on page 3--209 for
overview of the online help system.
