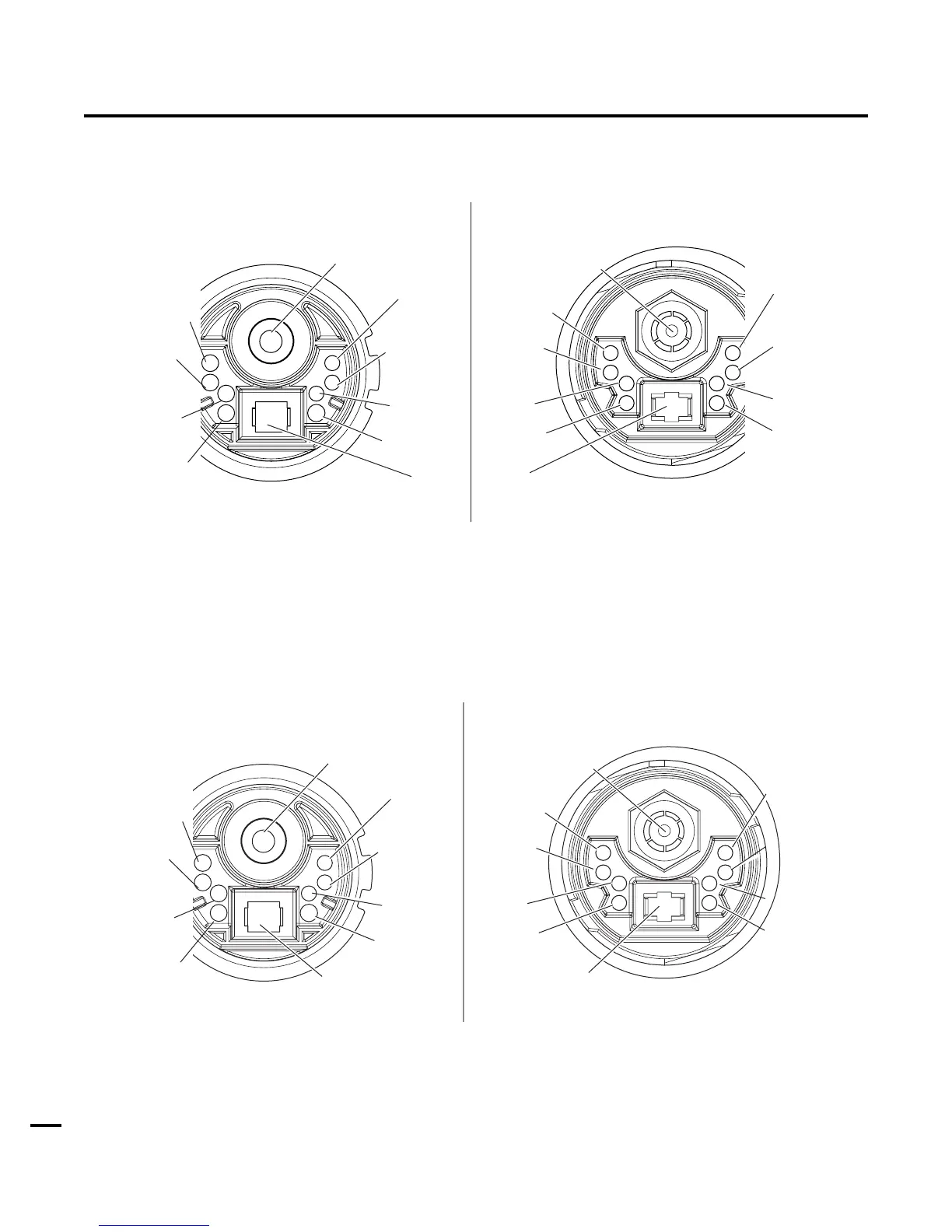

APPENDIX 4: TORCH PIN - OUT DIAGRAM
A. Power Supply and SL100 Torch without Solenoid
ATC Female Receptacle -
Front View
ATC Male Connector -
Front View
Negative / Plasma
Pilot
Negative / Plasma
6 - Open
7 - Open
5 - Open
8 - Open
8 - Open
5 - White /
Not Used
7 - Green /
Not Used
5
6
7
8
1
2
3
4
Pilot
1
2
3
4
5
6
7
8
3 - Open
2 - Orange /
PIP
1 - Black /
PIP
4- Open
2 - PIP Circuit
1 - PIP Circuit
3 - Not Used
4 - Not Used
6 - Open
Art # A-03900
ATC Female Receptacle -
Front View
ATC Male Connector -
Front View
Negative / Plasma
Pilot
Negative / Plasma
6 - Open
7 - Torch
Solenoid
5 - Torch
Solenoid
8 - Open
8 - Open
5 - White /
- Torch
Solenoid
7 - Green /
- Torch
Solenoid
5
6
7
8
1
2
3
4
Pilot
1
2
3
4
5
6
7
8
3 - Open
2 - Orange /
PIP
1 - Black /
PIP
4- Open
2 - PIP Circuit
1 - PIP Circuit
3 - Not Used
4 - Not Used
6 - Open
Art # A-07114
B. Power Supply and SL100SV Torch [withSolenoid]
