APPENDIX 16: AUTOMATION INTERFACE PC BOARD

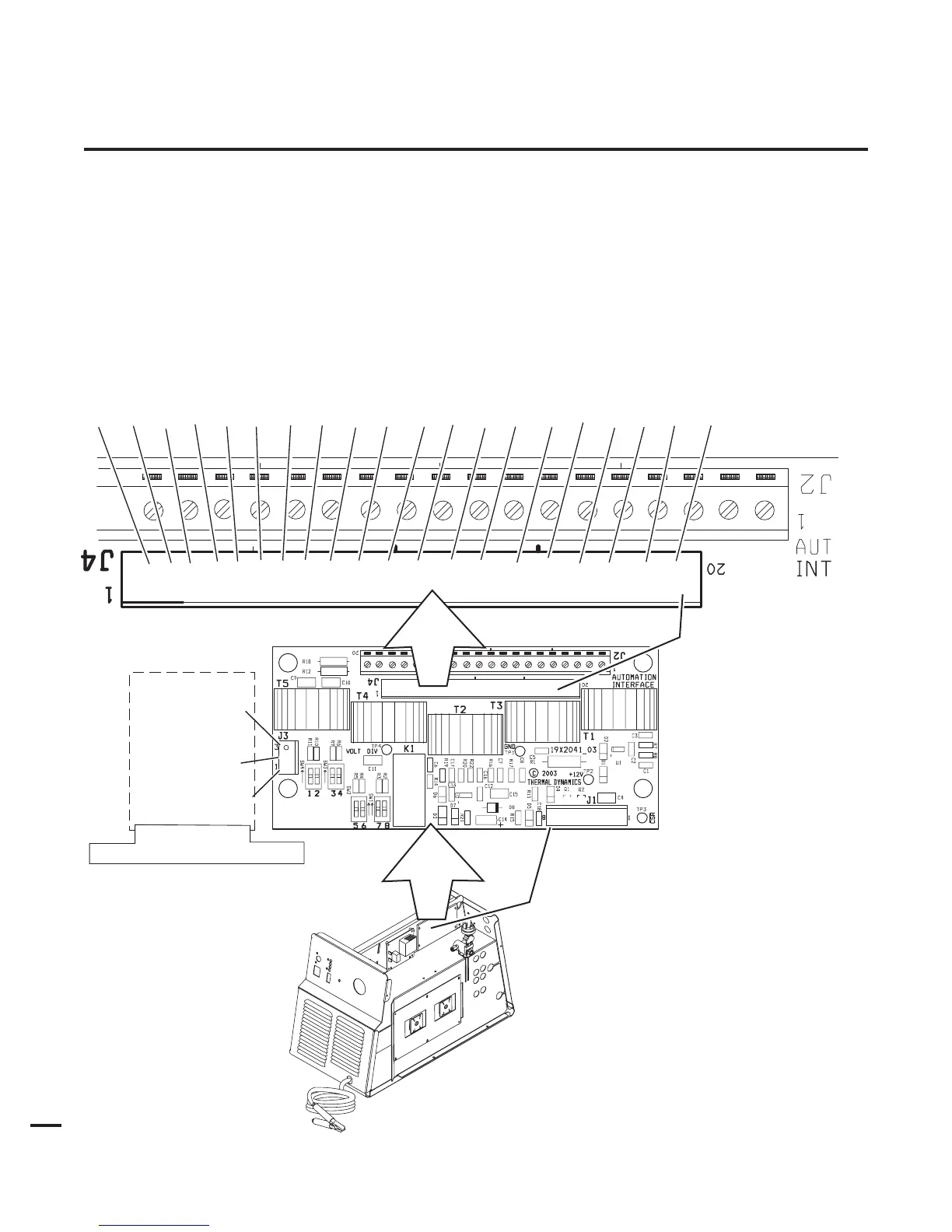

WIRING CONNECTIONS TO OEM CNC HARNESS
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20
Art # A-04148
Torch Switch (Positive)
to CPC Housing, Pin 4
Torch Switch (Negative) to CPC Housing, Pin 3
OK to Move to CPC Housing, Pin 14
OK to Move to CPC Housing, Pin 12
Divided Output (Positive) to CPC Housing, Pin 6
Divided Output (Negative) to CPC Housing, Pin 5
Logic Common to CPC Housing, Pin 8
Open
Open
Open
Open
Open
Open
Open
Open
Arc Volts (Positive) to CPC Housing, Pin 9
Arc Volts (Negative) to CPC Housing, Pin 7
Open
Open
Open
To Main PC Board
Terminal J27-3
To Main PC Board
Terminal J27-1
To Main PC Board
Terminal J27-2
Installed only with
Optional Remote Current Control
Terminal Block J4
Automation Interface PC Board
