INSTALLATION 3-10 Manual 0-4691

3.08 Power Supply Connection to SC-11 Standoff Control

The power supply includes an Automation Interface PC Board connected to a CPC connector on the power supply rear panel.

For connection to the Thermal Dynamics SC-11 Standoff Control, align and connect the cable from the Standoff Control to the

CPC connector. Check for a secure connection.

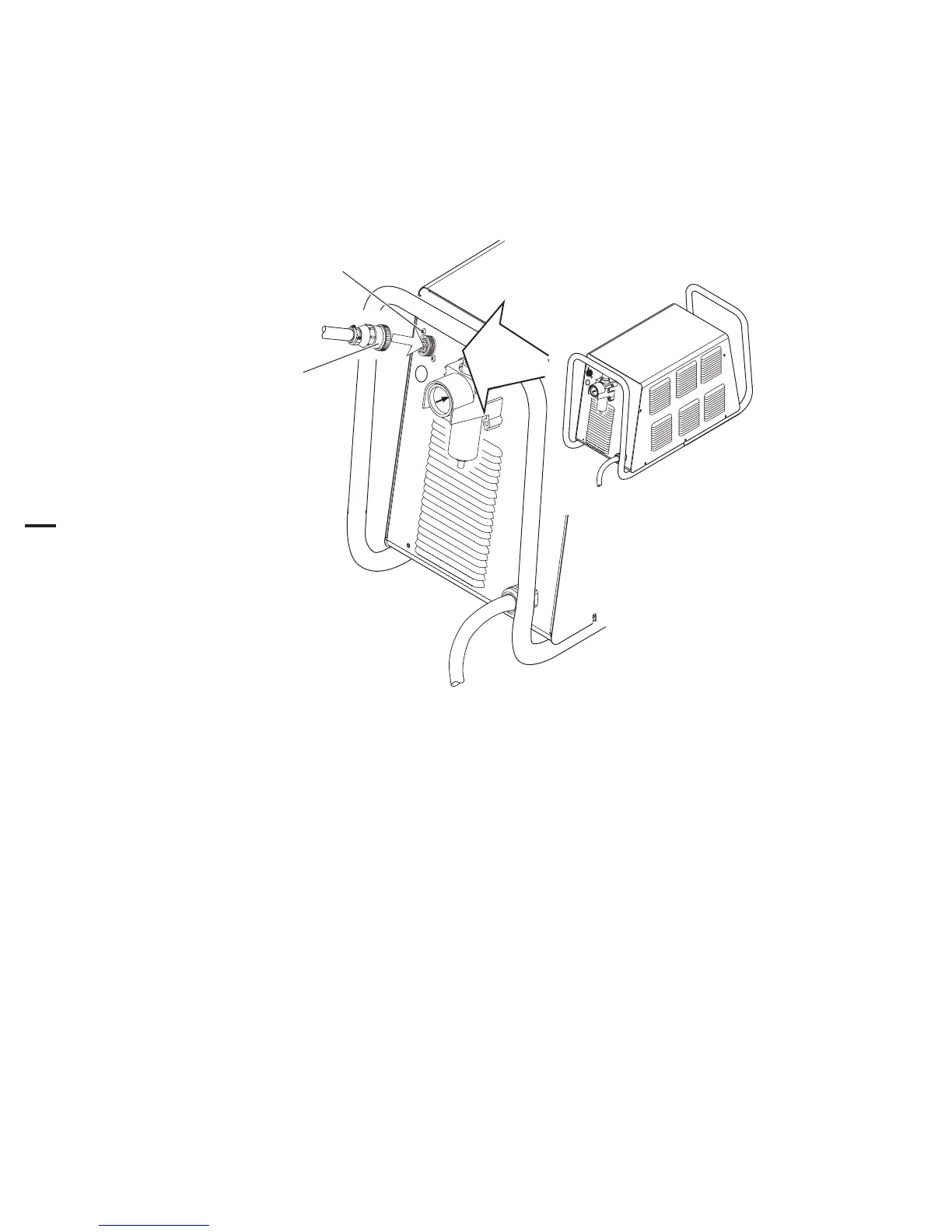

CPC Connector for

Thermal Dynamics CNC Controller

Art # A-04075

Connector for SC-11

Standoff Control / CNC
