Thermal Dynamics CUTMASTER 151 - APPENDIX 6: CONTROL CABLE PIN - OUT DIAGRAM

APPENDIX A-6 Manual 0-4691
A

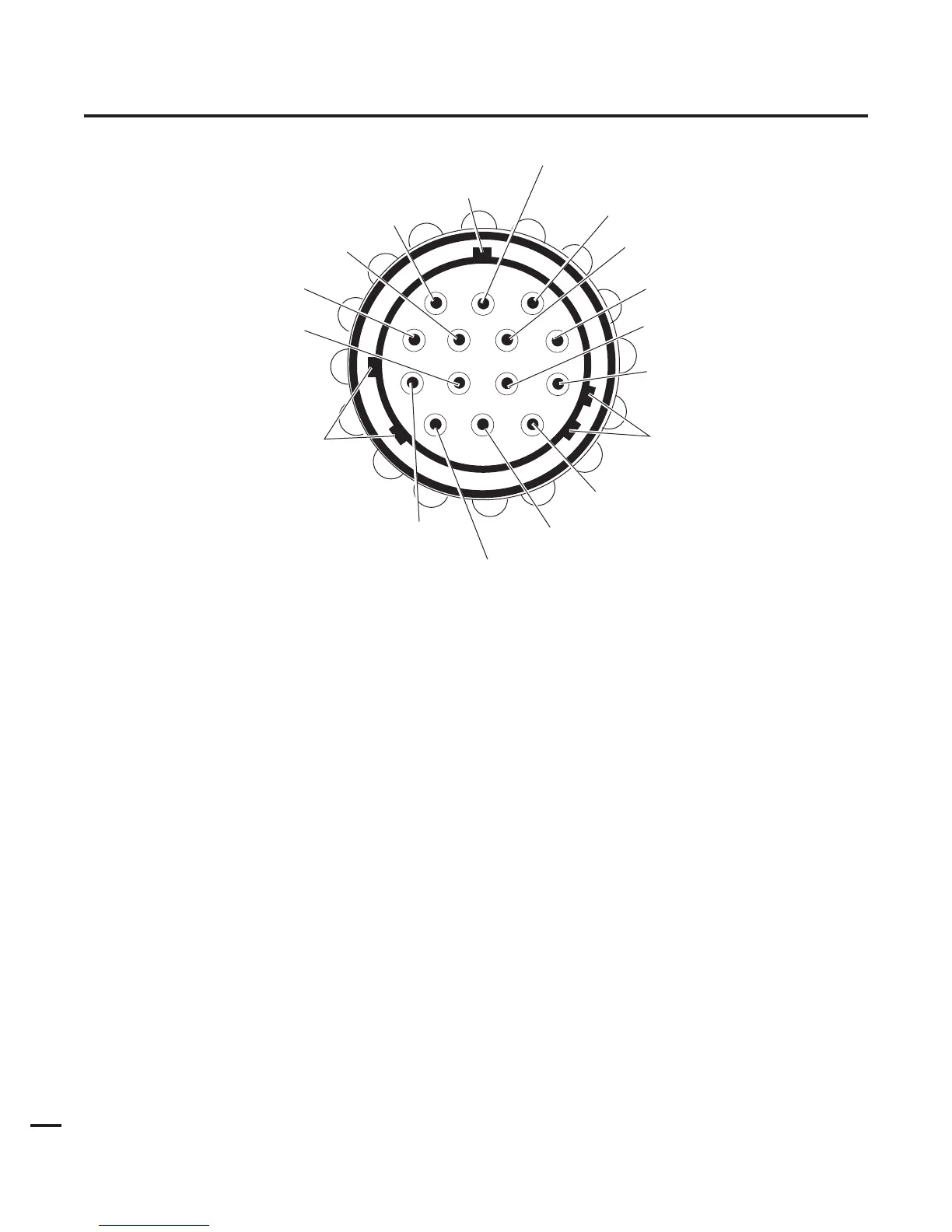

APPENDIX 6: CONTROL CABLE PIN - OUT DIAGRAM
1 / Black
12 / White - Black / OK to Move
6 / Blue / (Positive) SC-11 Controlle
r
7 / Yellow / Arc Volts (Negative)
11 / Gray
10 / Violet
Alignment
Splines
5 / Orange (Negative) SC-11 Controller
4 / Green / Torch Switch
8 / Logic Common
9 / Brown / Arc Volts (Positive)
Alignment
Splines
Art # A-03993
2 / White
13 - Open
14 / White - Red / OK to Move
Alignment
Spline
3 / Red / Torch Switch
