Manual 0-4691 5-29 SERVICE

5.11 Left Side Internal Parts Replacement

A. Fuse (F1) Replacement

1. Remove the power supply cover per Section 5.09-A.

2. Locate the internal fuse on the left side of the center chassis.

3. Replace the fuse. A replacement fuse is located inside the power supply. Refer to Section 6, Parts Lists, for replacement

fuse catalog number.

4. Reinstall the power supply cover.

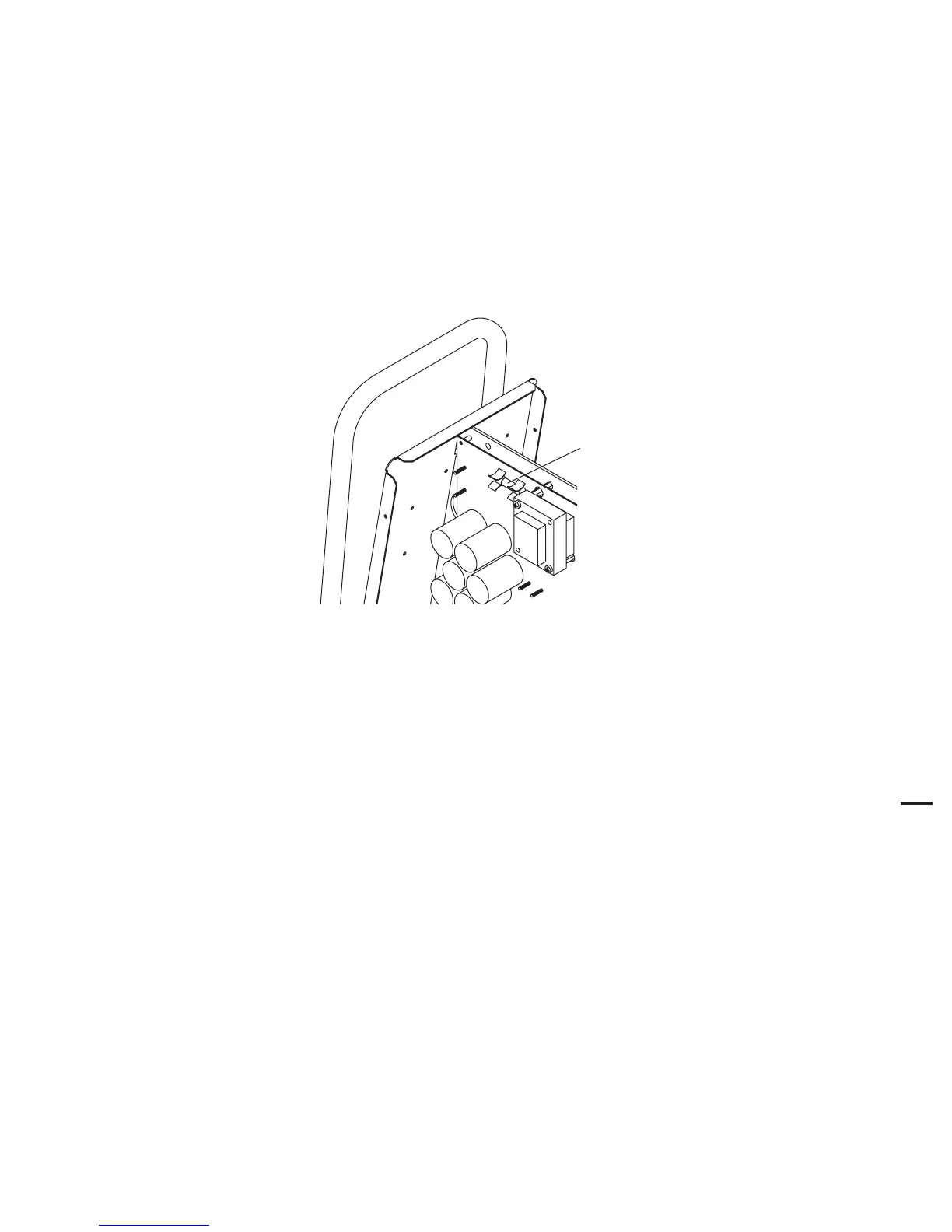

Art # A-03002

Fuse Location

Internal Fuse Location
