INTRODUCTION 2-6 Manual 0-4691
2

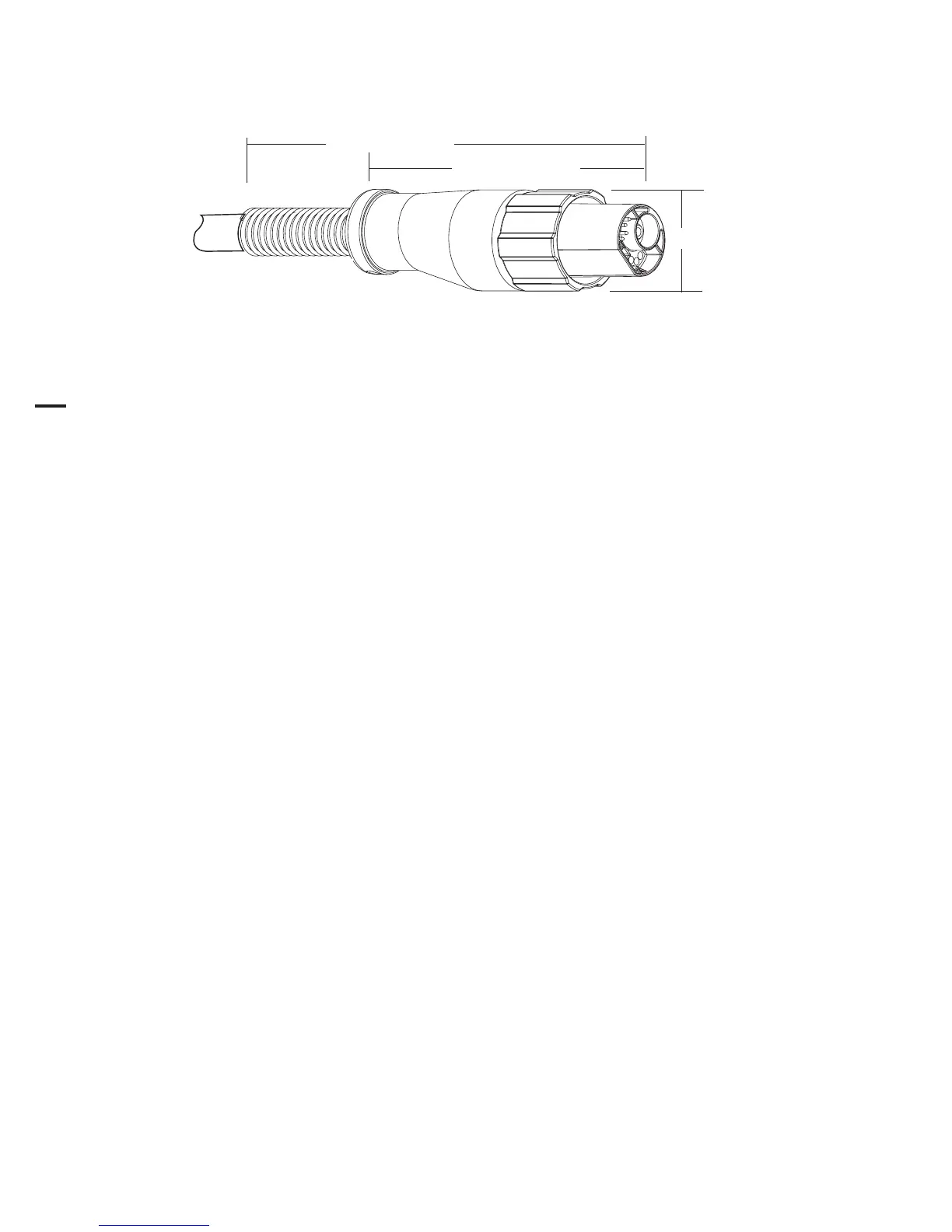

B. Torch Connector Dimensions
8.5" / 216 mm
5.375" / 137 mm
1.9" / 50 mm
Art # A-04056
C. Torch Parts
Start Cartridge, Electrode, Tip, Shield Cup Body, Shield Cap
D. Parts - In - Place (PIP)
Torch Head has built - in switch
12 vdc circuit rating
E. Direct Contact Hazard
For exposed tip the recommended standoff is 3/16 inches / 4.7 mm.
2.07 Torch Options and Accessories
These items can adapt a standard system to a particular application or further enhance performance (refer to Section 6
for ordering information).
• Spare Parts Kits - Various kits containing replacement consumable torch parts.
• Pinion Assembly (for machine torches)
• Leather Leads Covers
