APPENDIX A-26 Manual 0-4691

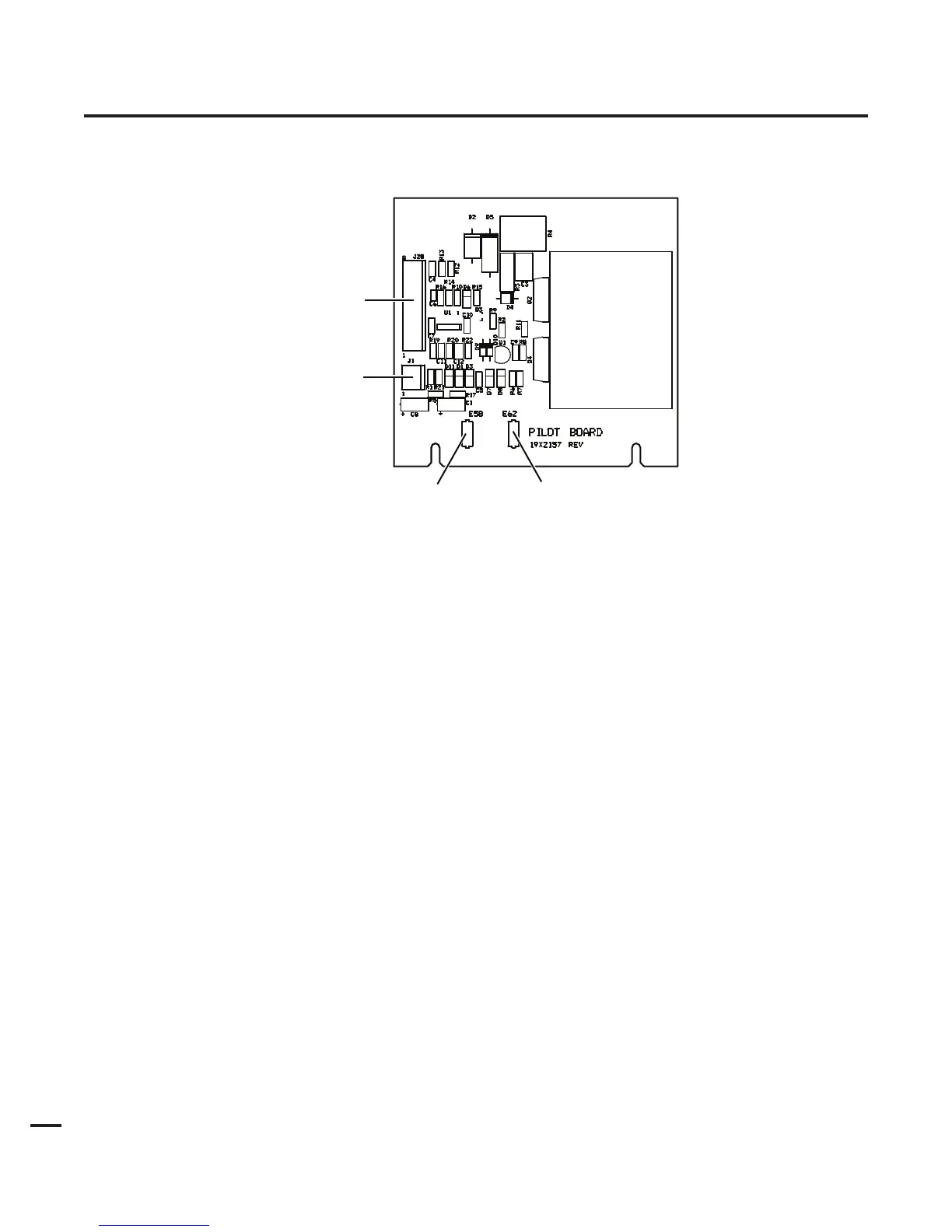

APPENDIX 25: PILOT BOARD LAYOUT

Pilot Board Signals

J1-1 +12 vdc to Automation Interface PC Board J1-3

J1-2 DC Common to Automation Interface PC Board J1-2

J28-1 +12 vdc

J28-2 DC Com

J28-3 Not Used

J28-4 Not Used

J28-5 Logic Low CSR

J28-6 Not Used

J28-7 Not Used

J28-8 Pilot Re-attach

E58 To Power Output PC Board Terminal E58

E62 To Power Output PC Board Terminal E62

Art # A-04582

Connector J28

Connector J1

Connector E62

Connector E58
