G. Set Operating Pressure

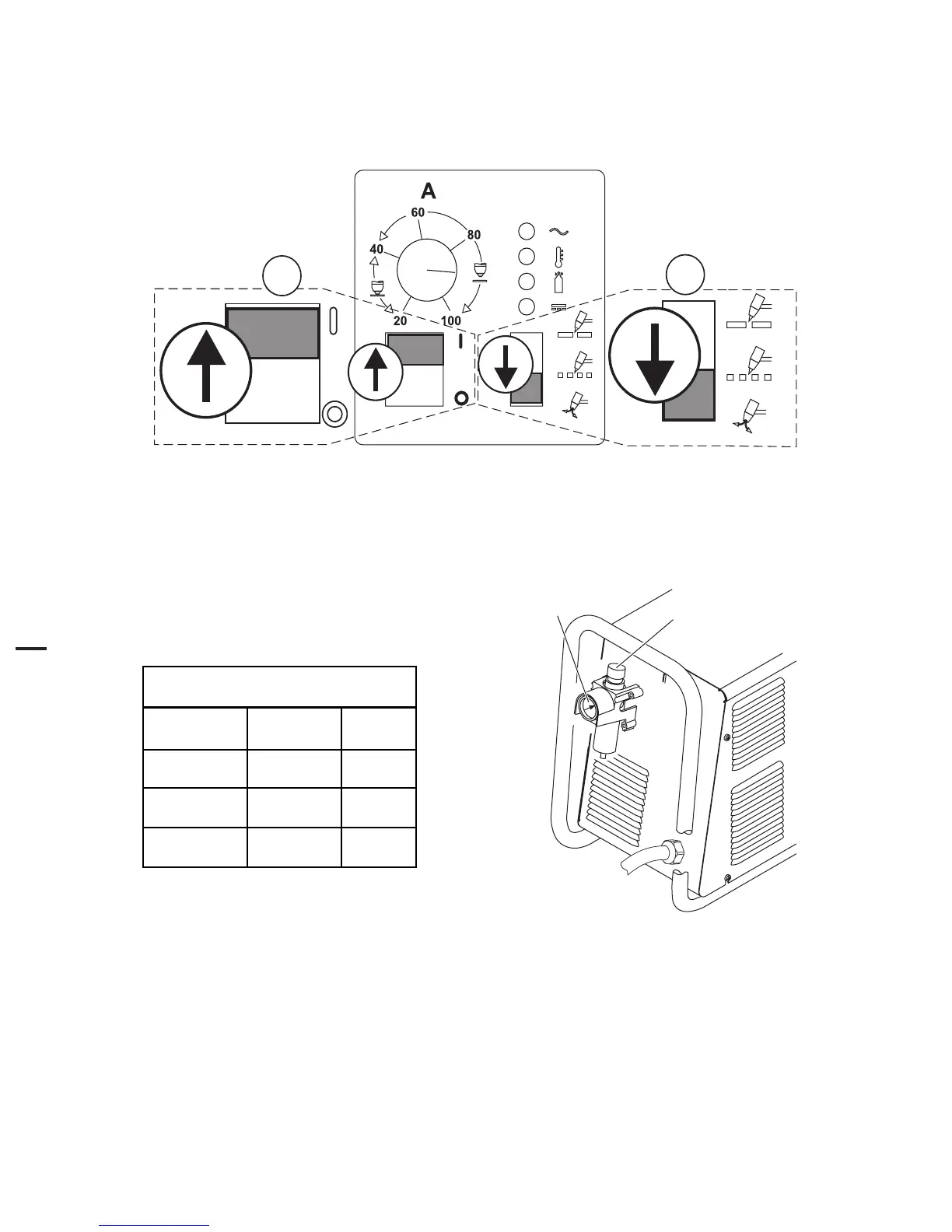

1. Place the Power Supply RUN / Rapid Auto Restart / SET switch to the SET (down) position. Gas will flow.
Art # A-04254
1
2
2. Adjust gas pressure per the settings chart.
Leads
Length
Up to 25'
(7.6 m)
Over 25'
(7.6 m)
40A Cutting
65 psi
4.5 bar
70 psi
4.8 ba
r
60A Cutting
70 psi
4.8 bar
75 psi
5.2 ba
r
80A Cutting
65 psi
4.5 bar
70 psi
4.8 bar
CutMaster 151
Gas Pressure Settings
Art #A-04181
65 - 75 psi /
4.5 - 5.2 bar
Pressure Control Knob
