27-10 Aileron Control
The ailerons are controlled via push-pull rods connected to bell
cranks. The travel stops are located at the bottom of the control sticks
under the seats. Replace protective teflon tape on pushrods whenever
rigging or unrigging of the control system.

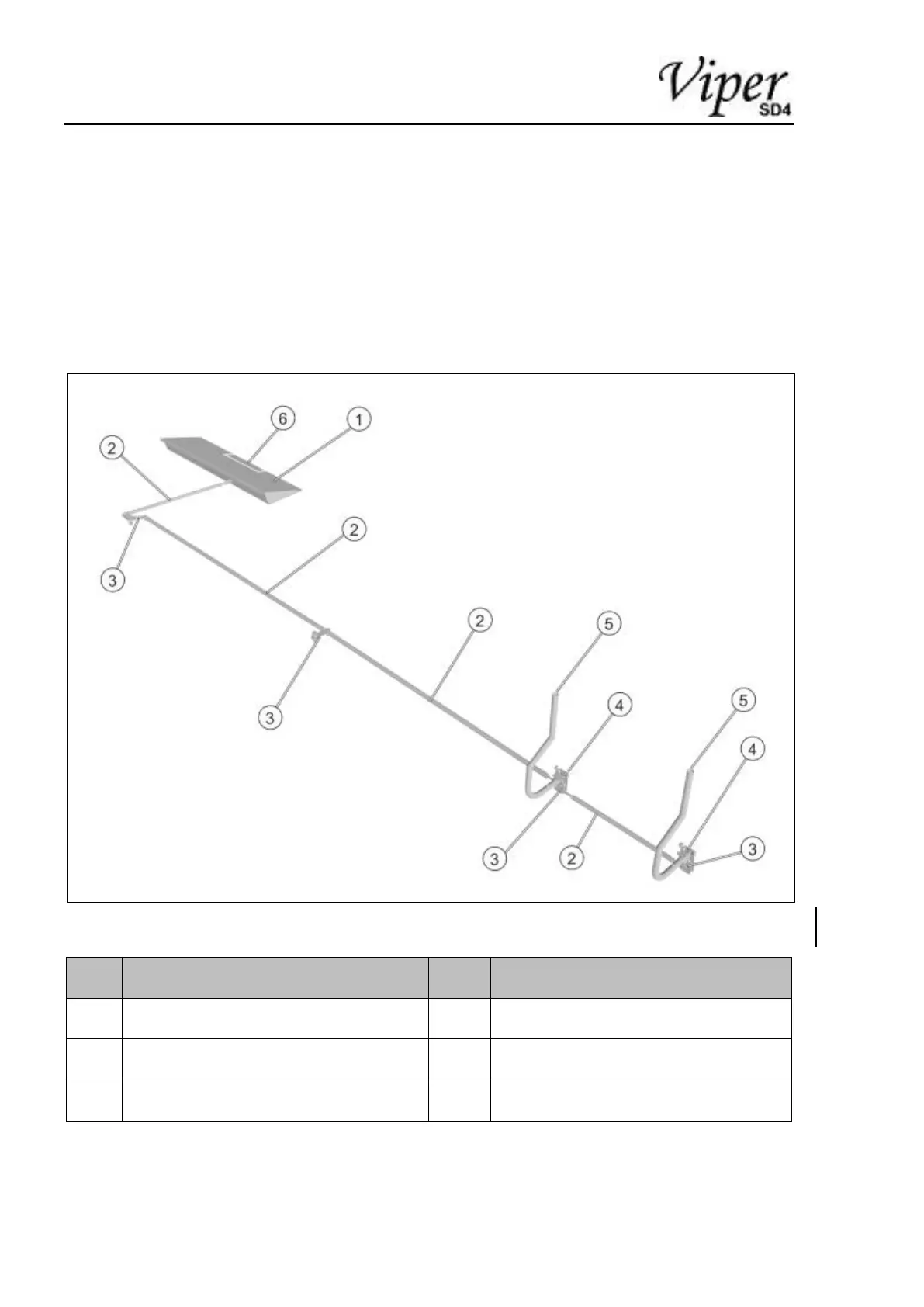

Figure 8 Aileron control (left side symmetrically)
Trim tab (right side only)
