TOMARK Viper SD-4 RTC - Center Wing and Root Fairing

TOMARK, s.r.o.
Airplane Maintenance Manual
Chapter57 Wing
Issue: 28.FEB 2017 Page 169

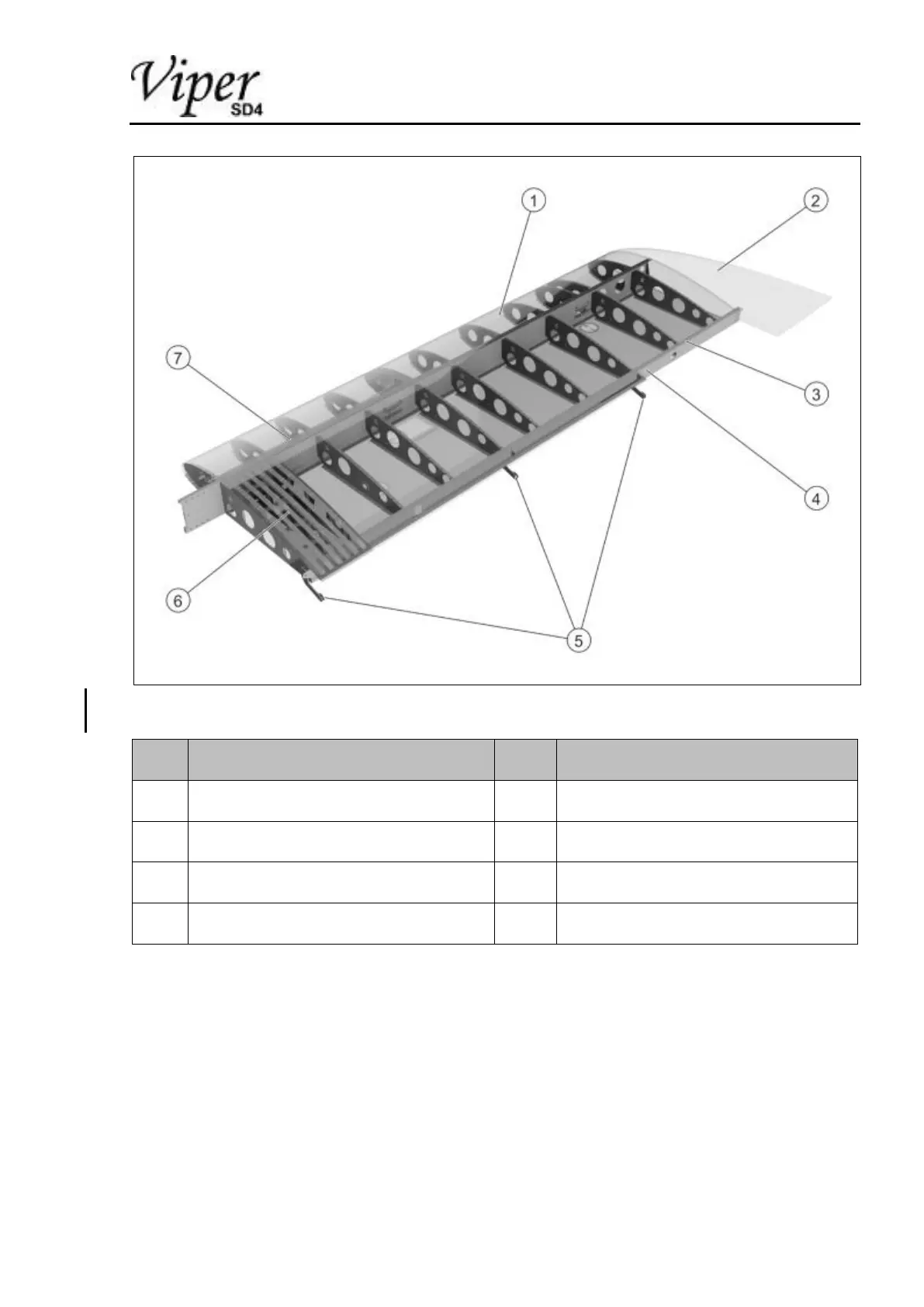

Figure 34 Wing
Item
Description
Item
Description
1
Right wing
5
Cantilever (flap attachment)
2
Wing tip
6
Step reinforcement
3
Piano hinge (aileron attachment)
7
Main spar
4
Rear spar
57-10 Center Wing
57-10-01 Wing Root Fairing
The left and right wing root fairings are attached to the structure by
means of Allen screws.
