Airplane Maintenance Manual
Chapter 90 Emergency Equipment
Issue: 28.FEB 2017 Page 183

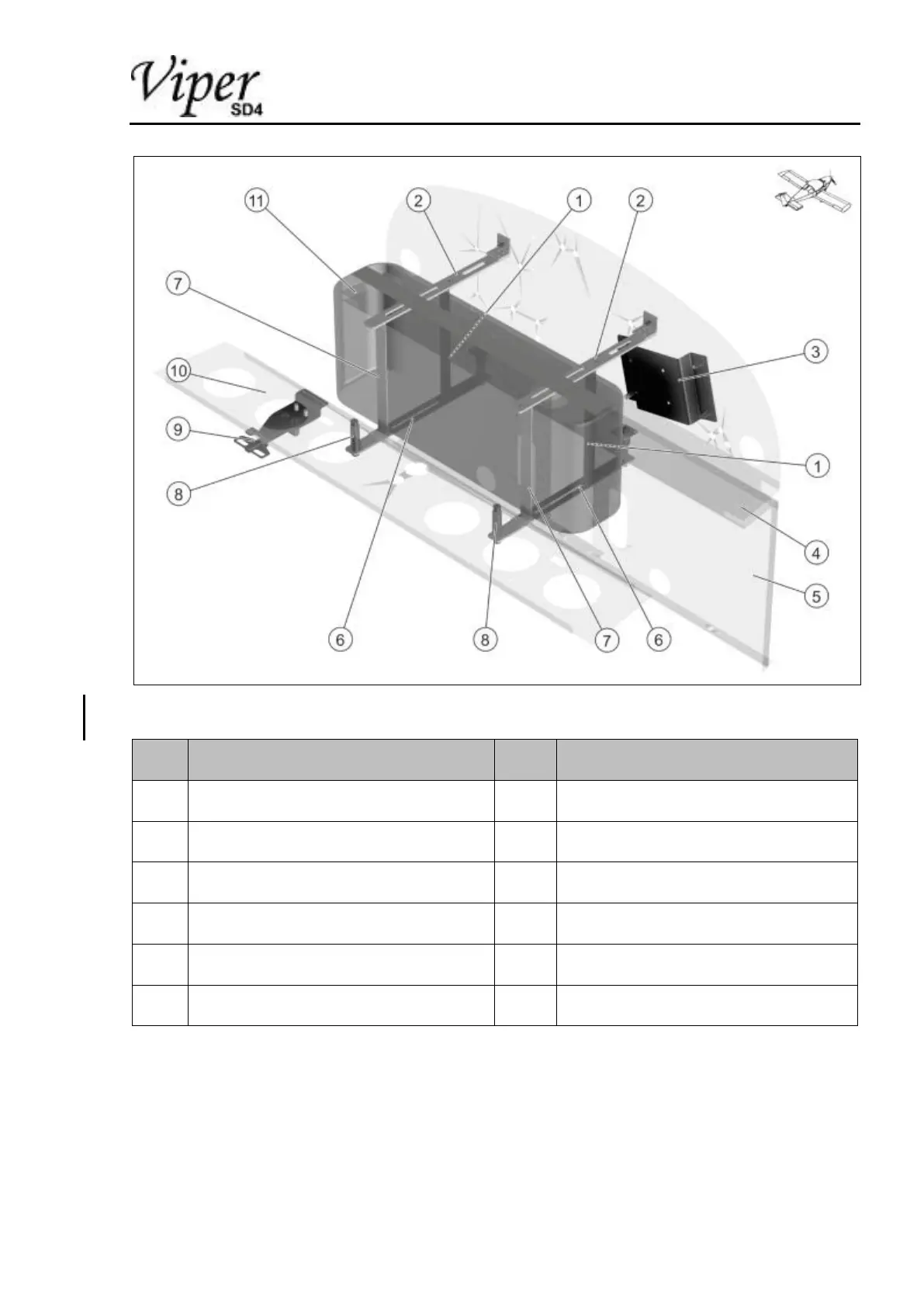

Figure 35 AEPS
Item
Description
Item
Description
1
Front attachment bracket
7
Aft attachment bracket
2
Upper attachment rail
8
Sleeve
3
Rocket support
9
Launching handle
4
Fuselage frame
10
Instrument panel frame
5
Firewall
11
Parachute
6
Lower attachment rail
Removal
The following procedure can be dangerous, if the GRS unit and its
functions, especially the correct installation of safety devices are not
understood. Follow the applicable GALAXY instructions including their
