TOMARK, s.r.o.
Airplane Maintenance Manual
Chapter 27 Flight Controls
Page 106 Issue: 11.AUG 2016

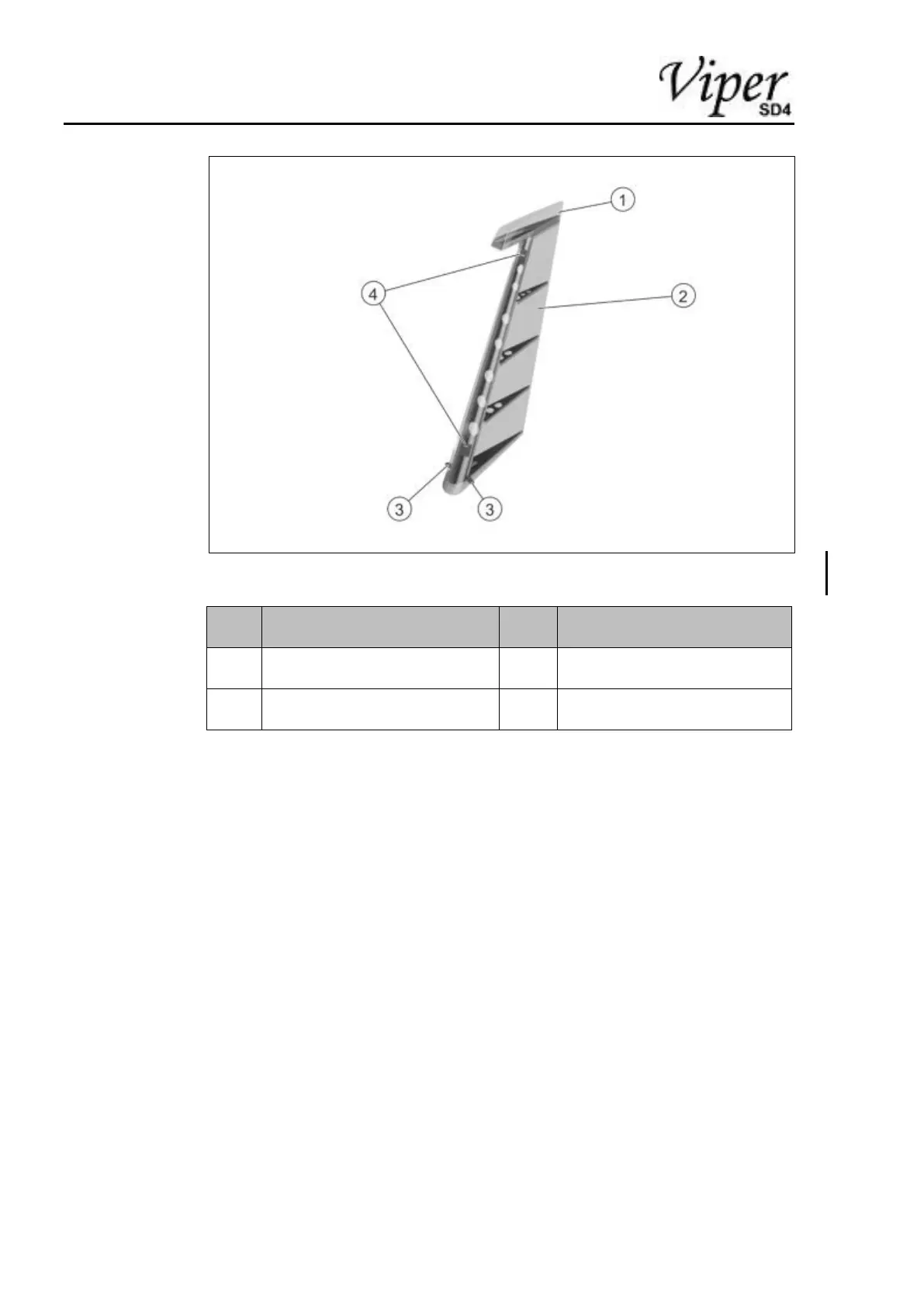

Figure 11 Rudder
Removal
▶ Note positions of bolt sides and washers.
▶ Disconnect rudder control Bowden cables from rudder crank arms
(1 bolt with castle nut each).
▶ Support the rudder.
▶ Note positions of bolt sides and washers.
▶ Remove 2 bolts with castle nuts.
▶ Remove rudder.
Installation
▶ Install in reverse sequence of removal.
▶ Check rudder for free movement.
