TOMARK Viper SD-4 RTC - Fuel System

TOMARK, s.r.o.
Airplane Maintenance Manual
Chapter 28 Fuel
Page 114 Issue: 11.AUG 2016

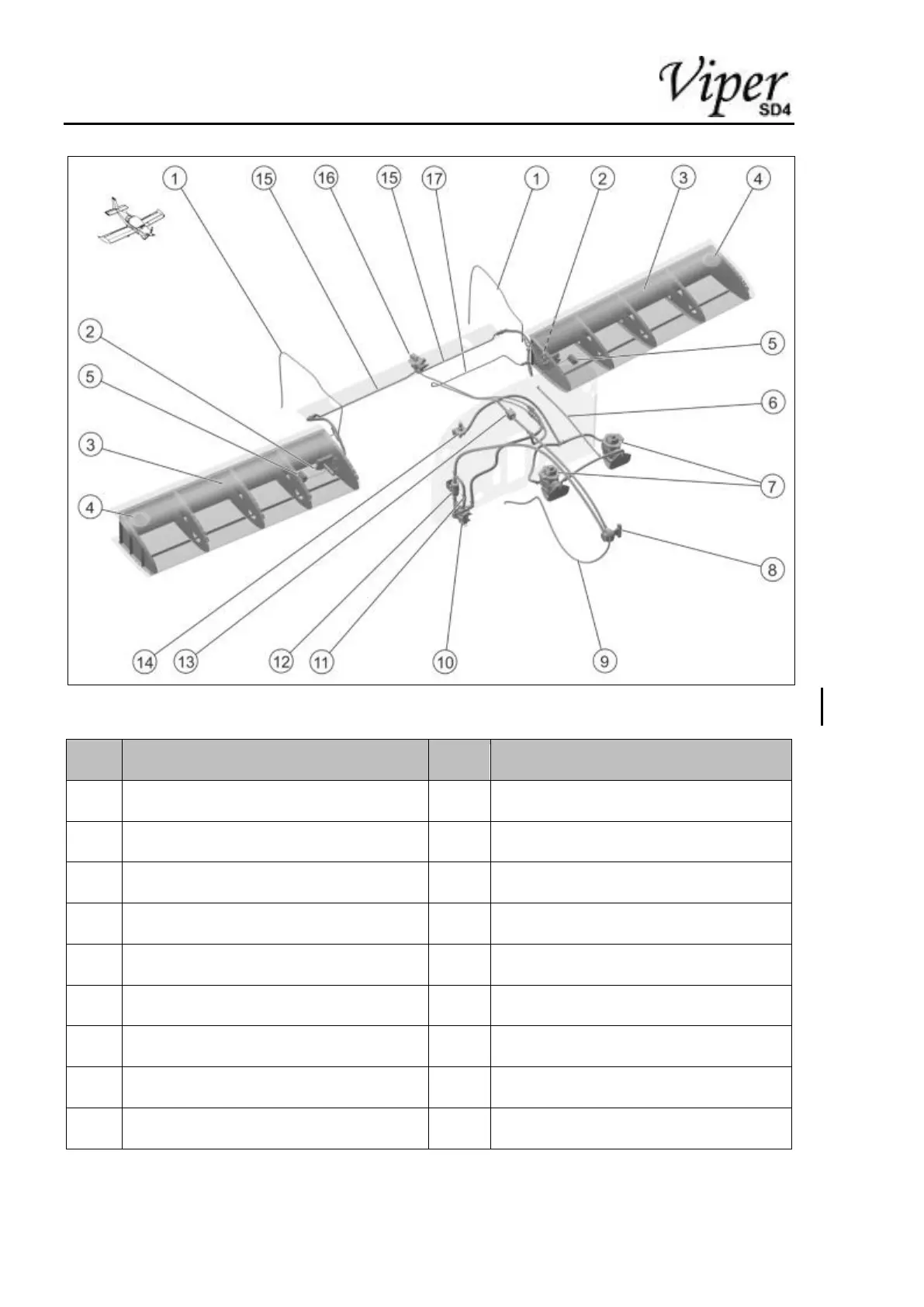

Figure 16 Fuel system
Item
Description
Item
Description
1
Vent line
10
Gascolator (fuel filter) with drain
2
Drain valve
11
Check valve
3
Fuel tank
12
Fuel pump (electrical)
4
Filler cap
13
Fuel flow sensor
5
Fuel gauge float
14
Fuel pressure sensor
6
Instrument line
15
Fuel pipe
7
Carburetor
16
Fuel lane selector
8
Fuel pump (engine driven)
17
Fuel return line
9
Drainage line
