Airplane Maintenance Manual
Chapter33 Lights
Issue: 28.FEB 2017 Page 133

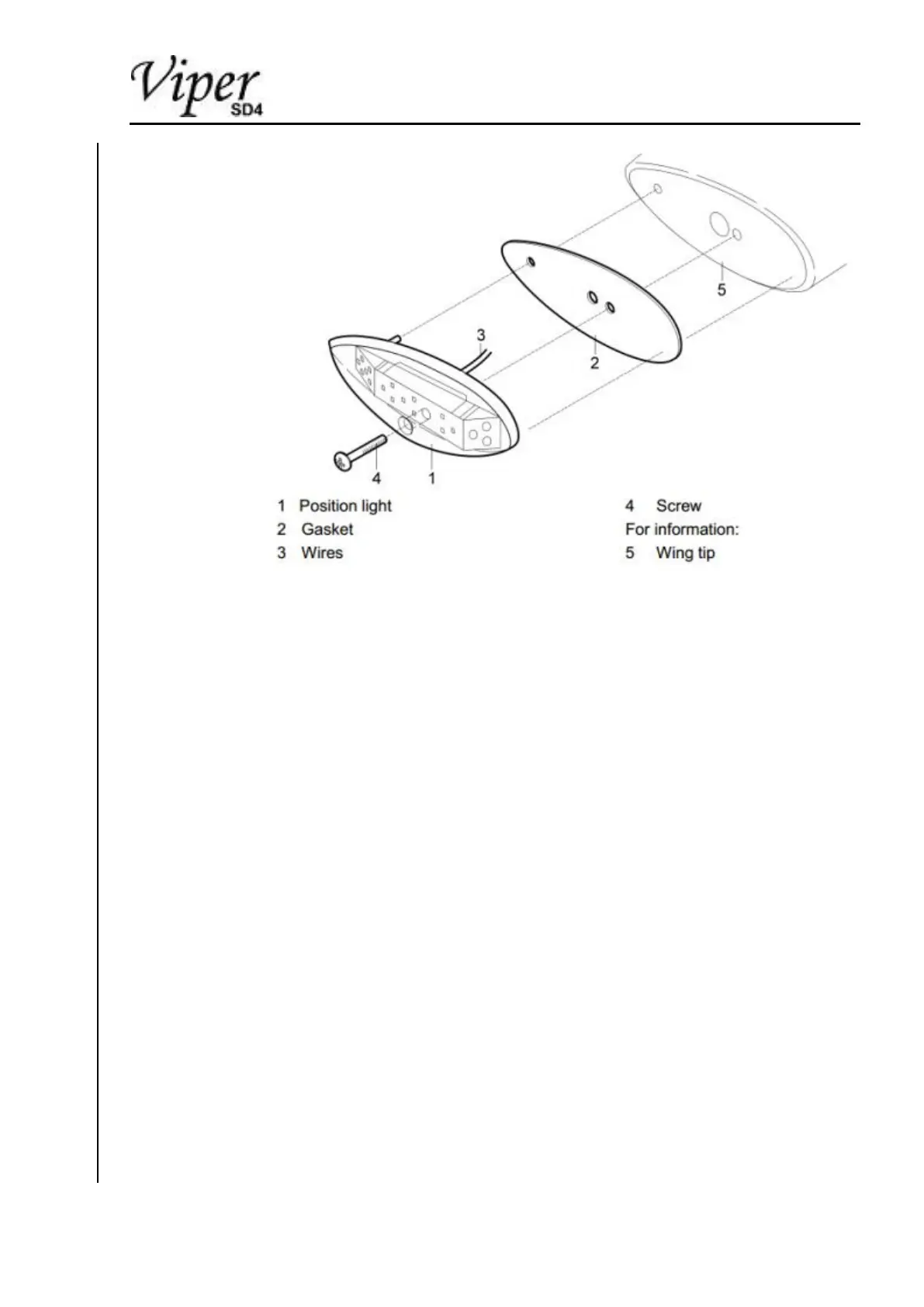

Figure 20 Position light removal / installation
33-02 Landing Light
Removal
▶ Set the MASTER, INSTR, SOCKET 12V/LANDING LIGHT switches to OFF
▶ Remove engine cowlings according chapter 71-00-01 Top Engine
Cowling and 71-00-02 Bottom Engine Cowling
▶ Unscrew screws (4,Figure 21) from the sides of the opening in the
lower engine cowling using allankey and carefully release the light (1,
Figure 21).
▶ Cut the zip-ties attaching the Landing Light cable to the Bottom
Engine Cowling
Installation
▶ Attach the Landing Light by screws to the attachment
Do not forget to place washer 5.3x20 DIN 522 Zn (3, Figure 21)
below each screw head
▶ Fasten the Landing Light cable to the zip-tie holders
▶ Install lower engine cowling according chapter 71-00-02 Bottom
Engine Cowling
Set the MASTER, INSTR, SOCKET 12V/LANDIGN LIGHT switches to ON
