27-10-01 Aileron
The ailerons are connected to the wing by means of a piano hinges.
Each ailerons feature a crank arm on its nose, which is connected to
the respective aileron control rod.

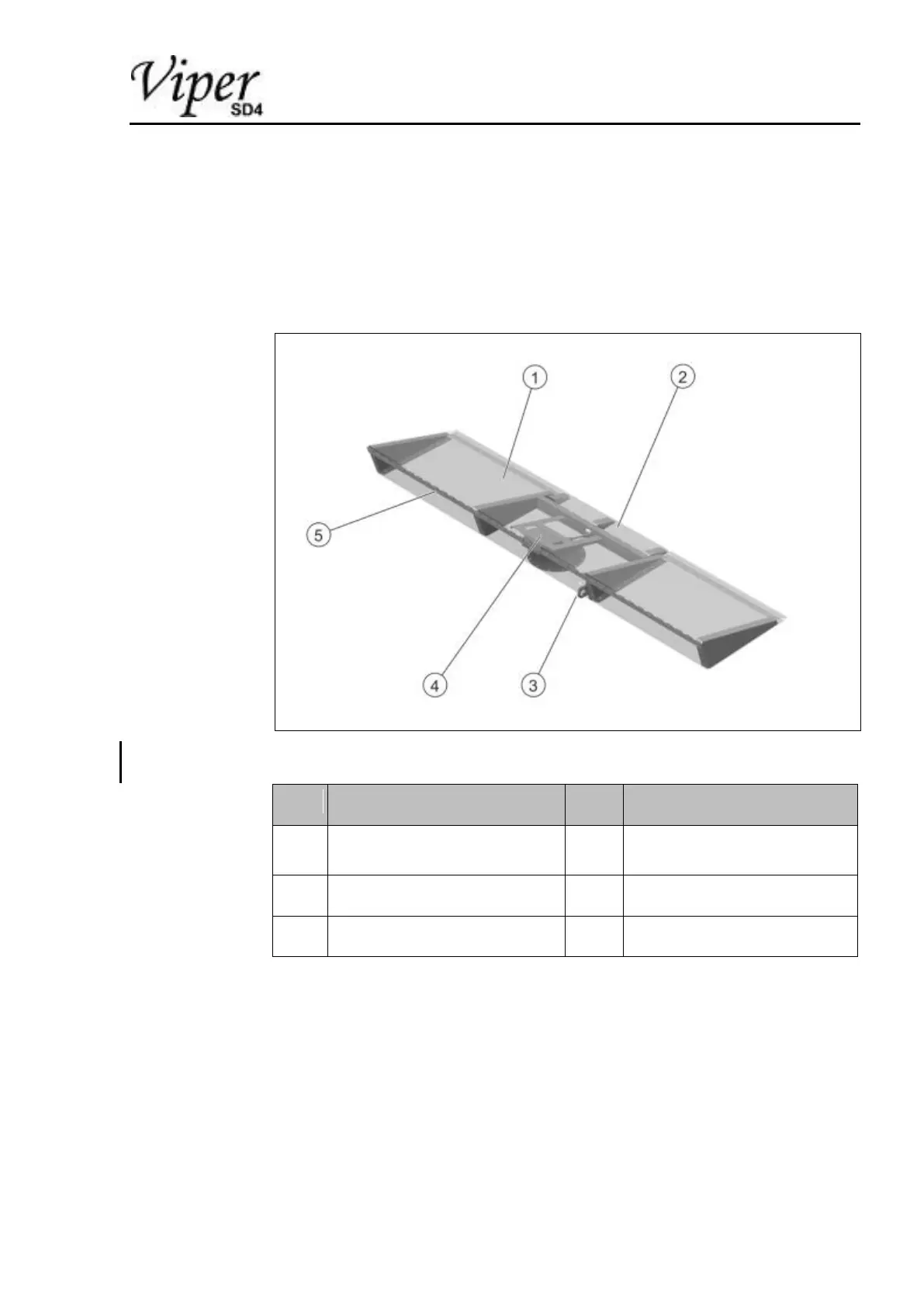

Figure 9 Aileron
Item
Description
Item
Description
1
Right aileron
4
Trim motor support
(RH aileron only)
2
Trim tab (RH aileron only)
5
Piano hinge
3
Crank arm
Removal
▶ Remove win tip fairing as per Chapter 57-30-01Wing Tip Fairing.
▶ Disconnect Control rod from aileron as per Chapter 27-00-02 Control
Rod.
▶ Disconnect electrical wiring from trim tab (RH aileron only).
▶ Support the aileron.
▶ Pull outboard the wire of the aileron piano hinge.
