Airplane Maintenance Manual
Chapter32 Landing Gear
Page 130 Issue: 11.AUG 2016
Assembly
▶ Assemble in reverse sequence of disassembly.
32-40-05 Brake Linings
Adjustment

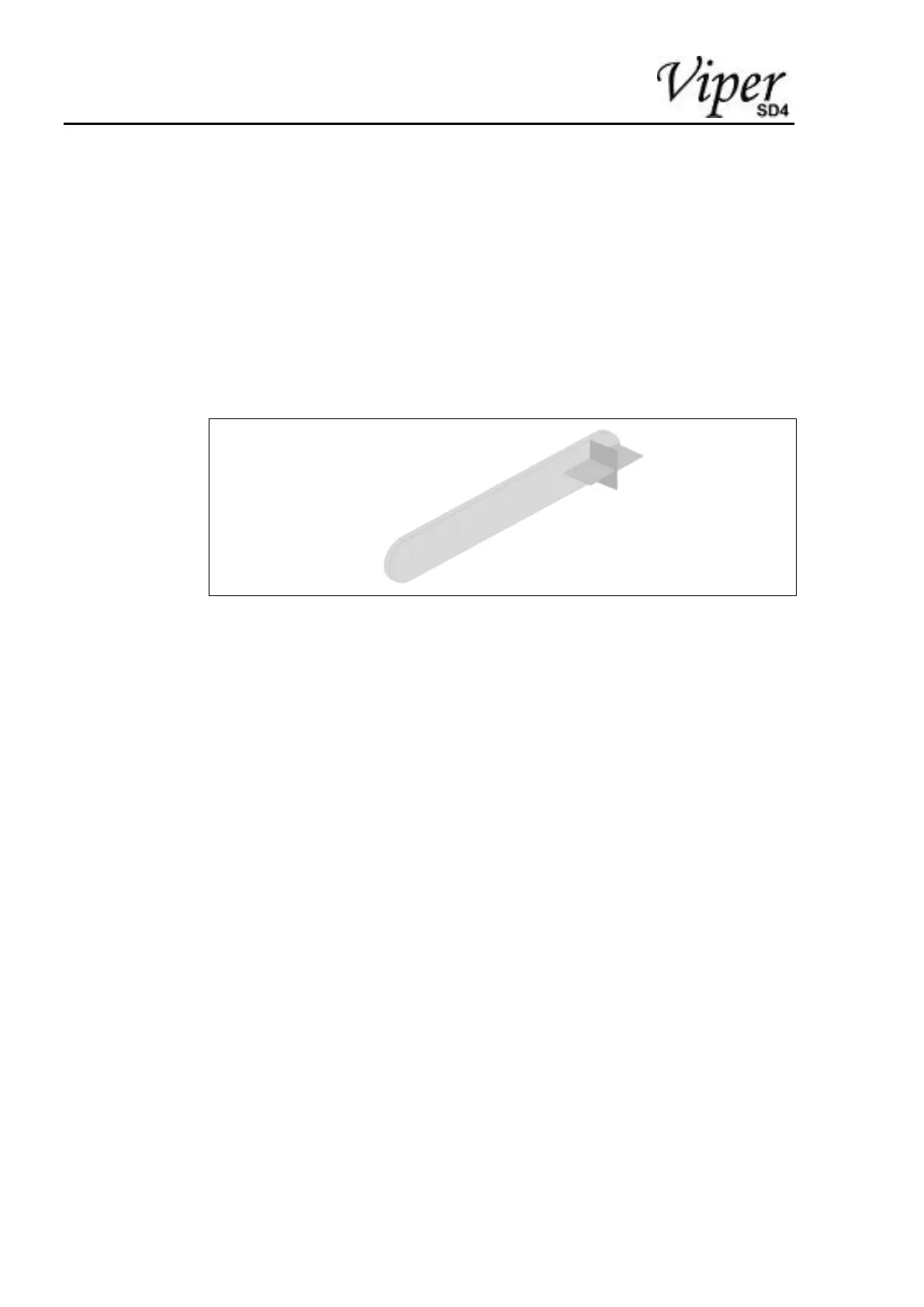

The brake linings are adjusted with brake lever released. Use a special
wrench as shown in the following Figure to rotate the piston.
▶ Rotate the piston of one wheel brake until the brake lining just
touches the brake disc (feel the resistance).
▶ Rotate the piston of the other wheel brake just like that (same
resistance).
▶ Then release both sides by rotating each piston 45° counterclockwise.
Replacement
▶ Disassemble brake as per Chapter
32-40-04 Brake
.
▶ Replace brake linings (2 bolt with spring/2 Allen screws each).
32-40-06 Brake Disc
Replacement
▶ Disassemble brake as per Chapter
32-40-04 Brake
.
▶ Assemble with new brake disc as per Chapter
32-40-04 Brake
.
