27-30 Elevator and Tab
The elevator is controlled via push-pull rods connected to a central
bellcrank and the elevator crank arm. The travel stops are located on
the torque tube connecting the control sticks.

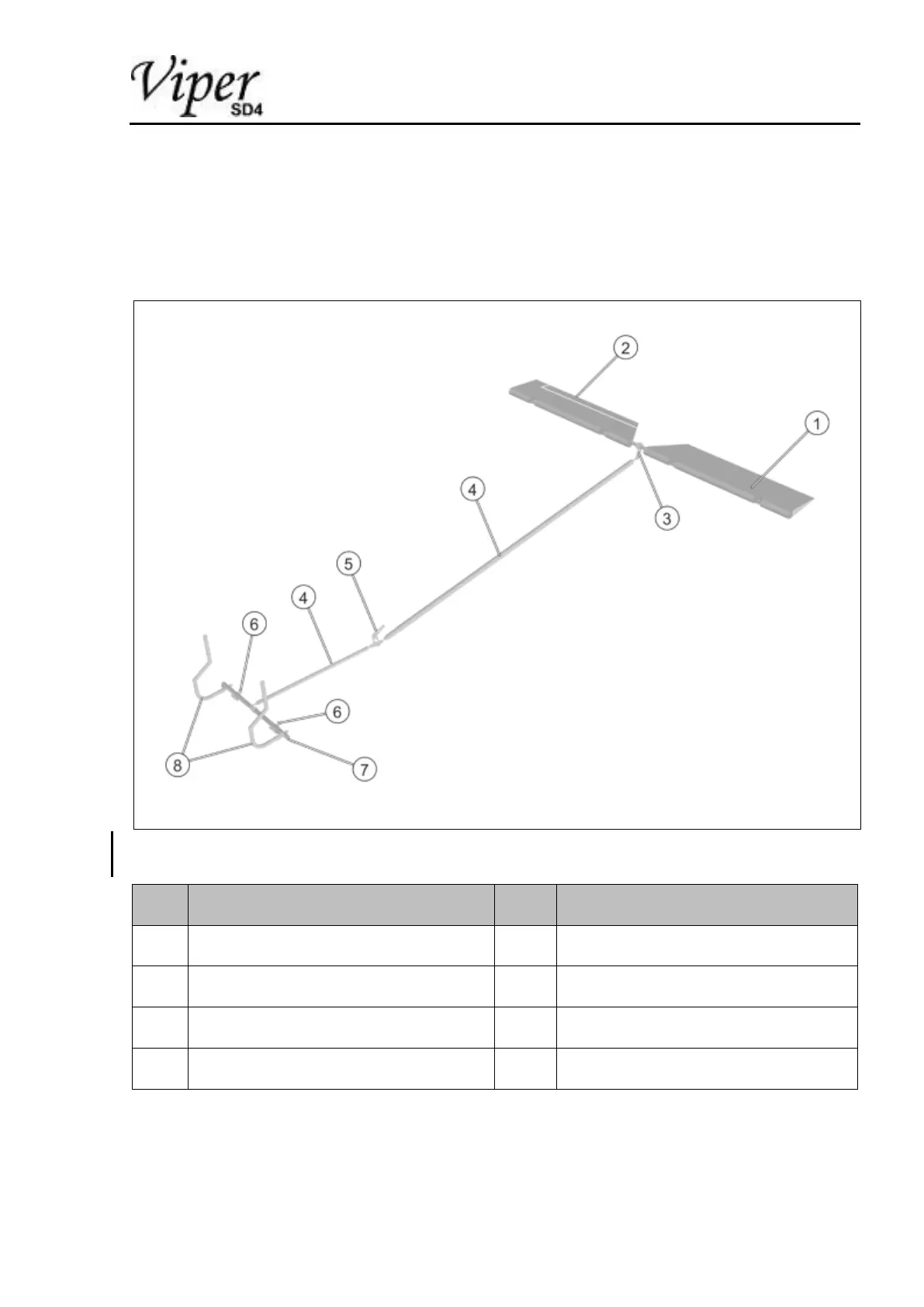

Figure 12 Elevator control
