Tomberlin 2010 E-Merge - Page 130

Battery and Charger
MERGE 11-23
Chapter 11

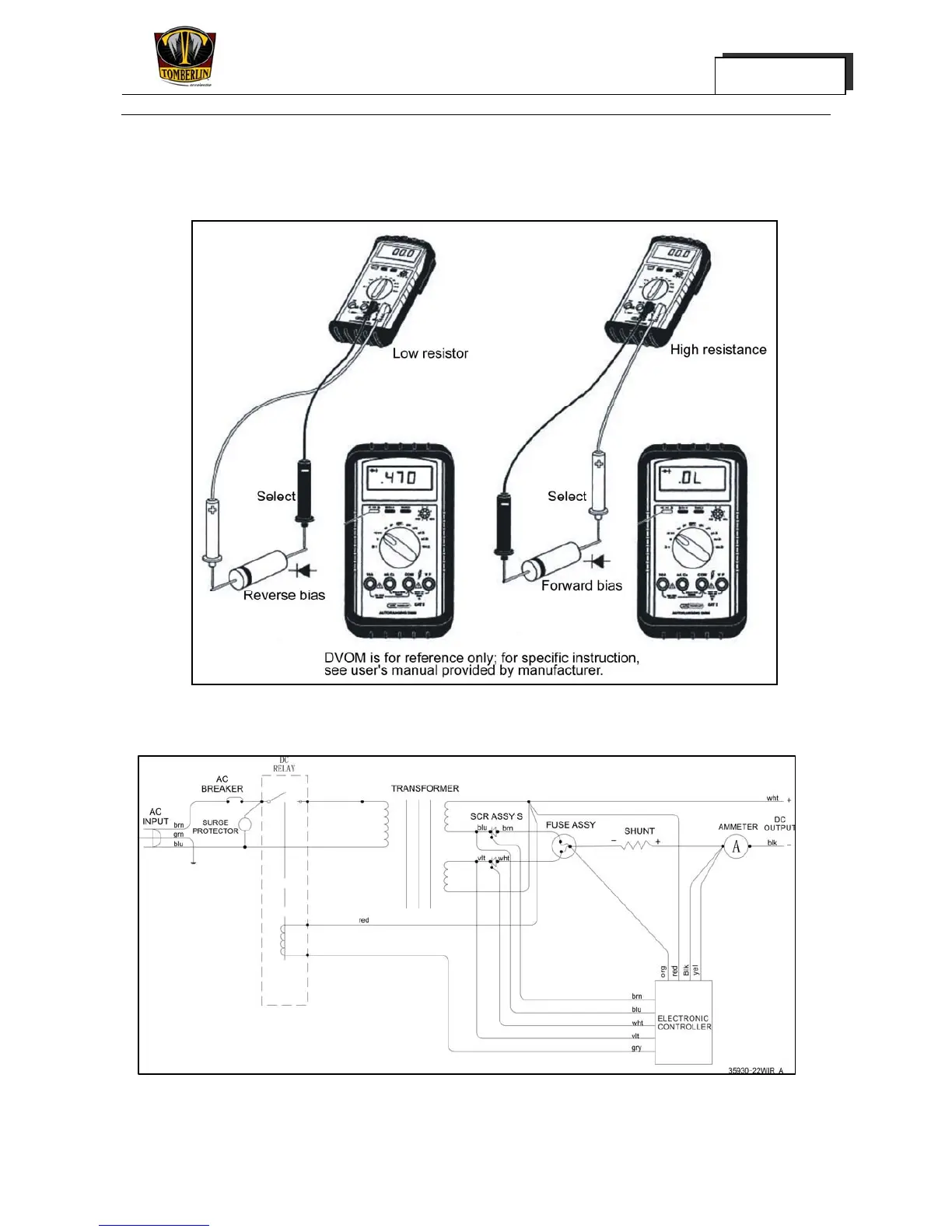

Fig 11-16: diode test procedure
Fig 11-17: lester full automatic controllable silicon charger wiring diagram
Fig 11-15: Charger trouble-shooting procedure
