Electric Component
MERGE 9-16
Chapter 9
5. Disconnect the connector of the high mount stop
lamp③.

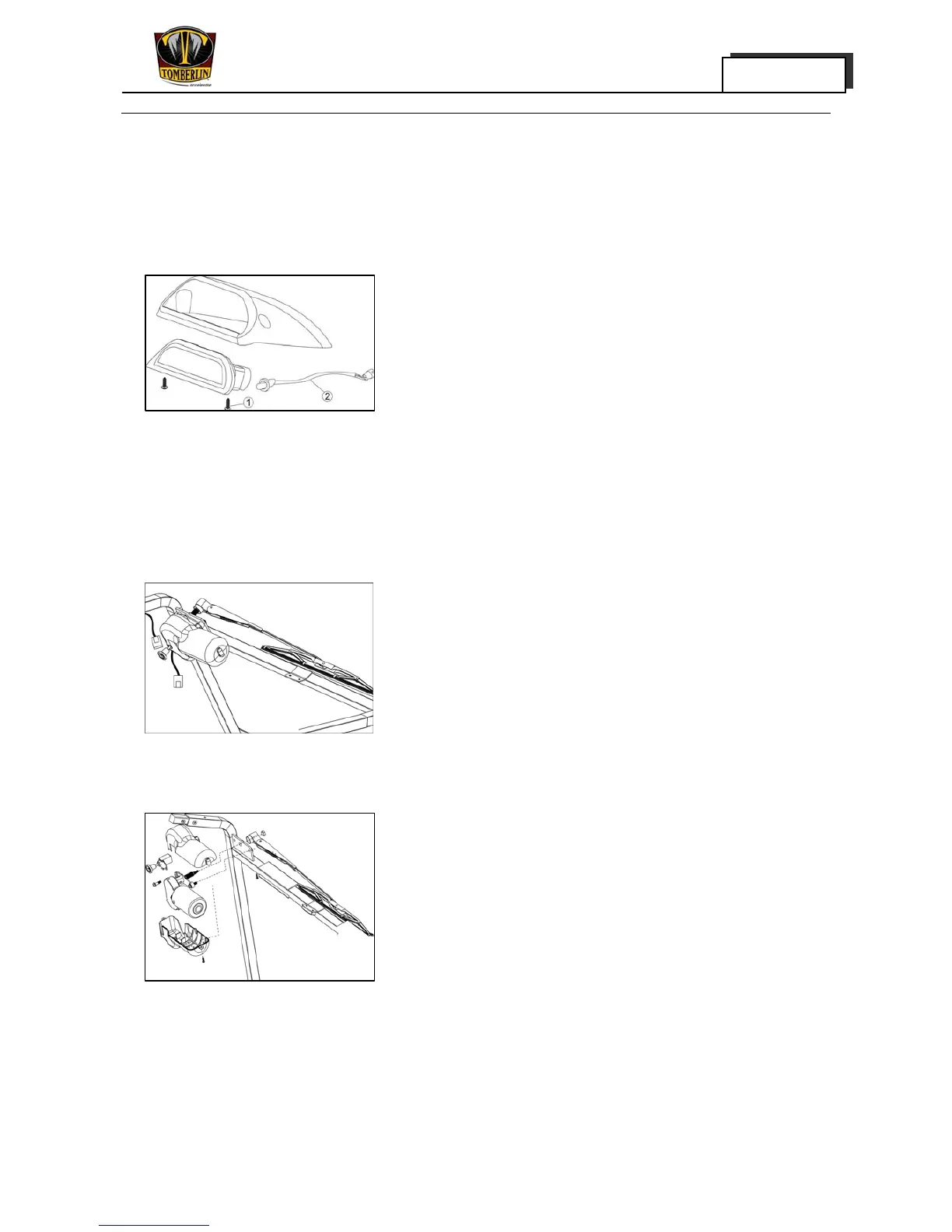

High mount stop lamp disassembly
1. Remove the screw①.
2. Rotate the lamp receptacle; remove the wire
harness with the bulb②.
3. Check the continuity,
Replace the bulb assembly with wire harness in
case of un-continuity②.
High mount stop lamp installation
Back to removal steps
Wiper removal
1. Take out the key from the key switch.
2. Apply the parking brake.
3. Turn Tow/Run switch to TOW.
Please refer to Chapter 1 “Protection for Electrical
Safety”.
4. Disconnect the wiper.
5. Remove the wiper arm.
6. Remove the fixing nut of wiper motor.
To Next Page
