Electric Component
MERGE 9-12
Chapter 9
Installation of DC changeover contactor and
diode assembly
Back to the removal steps.
NOTE:
The diode must be installed with a correct
polarity.

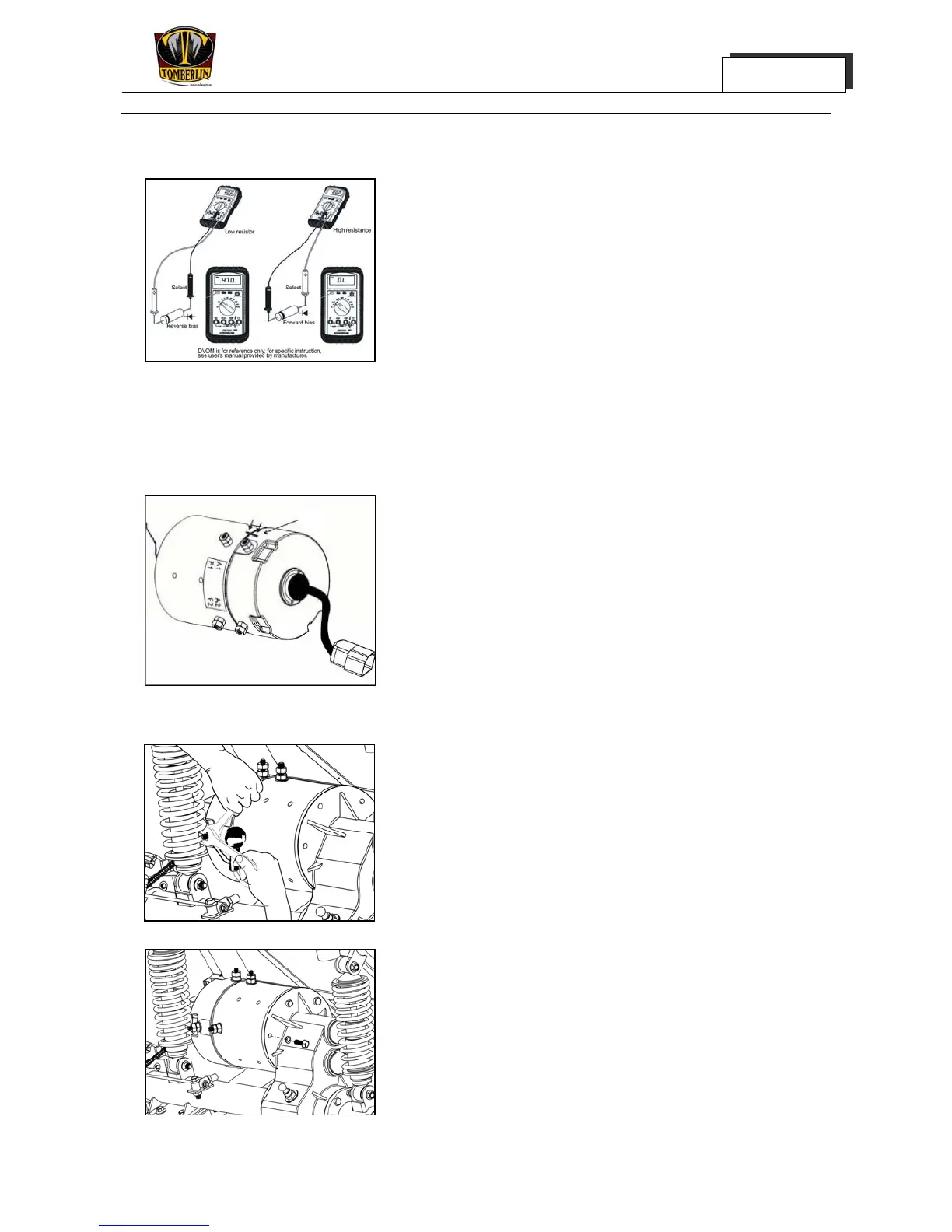

Motor removal
1. Take out the key from the key switch.
2. Apply the parking brake.
3. Turn Tow/Run switch to TOW.
Please refer to Chapter 1 “Protection for Electrical
Safety”.
4. Mark a line at the motor interface with a marking
pen.
5. Hold the binding post with two wrenches;
disconnect the wire from the connecting terminal
of the motor.
6. Remove the 6 bolts fixing the motor.
Marking line
To Next Page
