Front Axle
EMERGE 5-6
Chapter 5

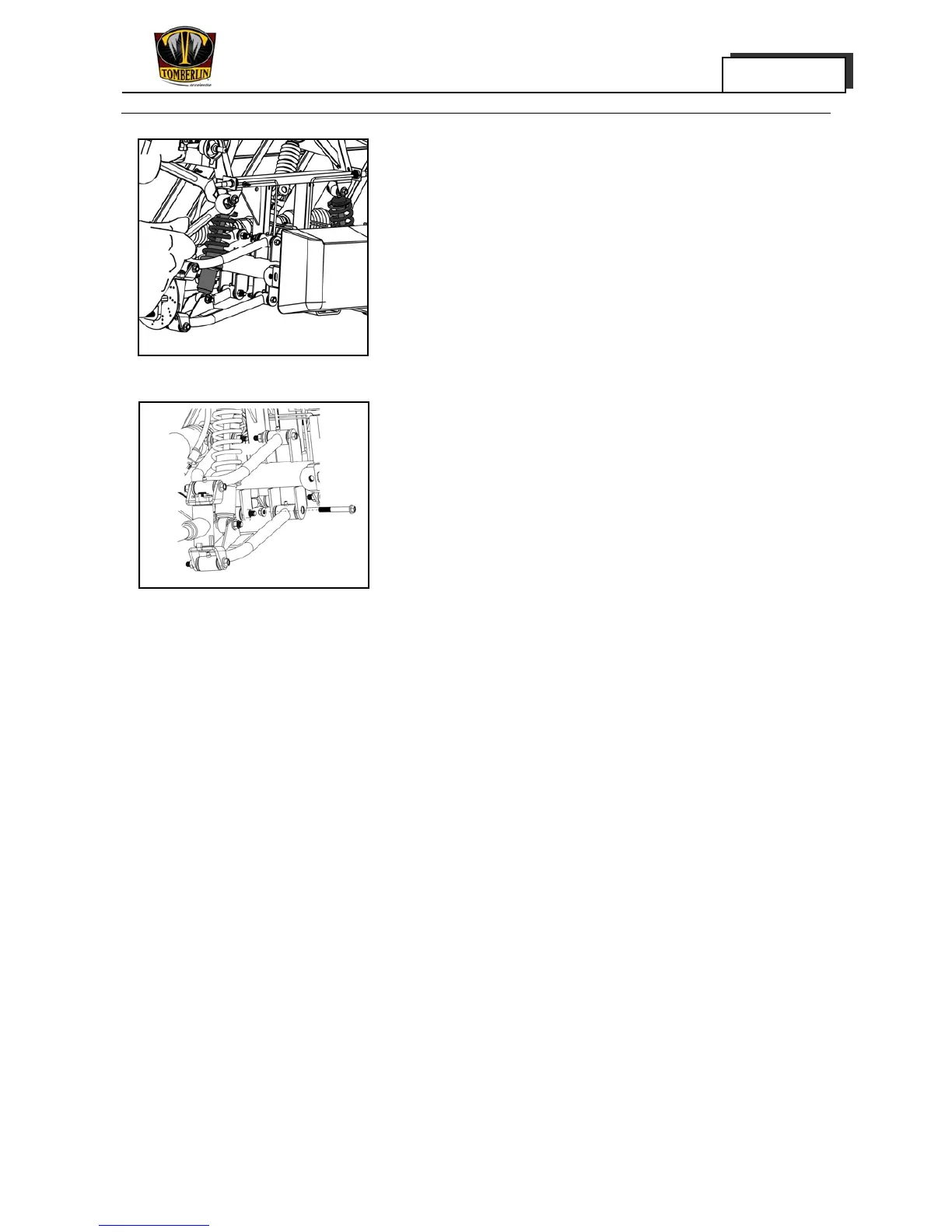

17. Remove:
· Front shock absorber bolt
Tightening torque
60N·m (44.2 ft·1b)
· Front shock absorber
· Swing arm bolt
Tightening torque
60N·m (44.2 ft·1b)
· Upper and lower swing arms
· Dust cover
· Inside spacer
· Nylon sheath
Inspect
1. Wheel：
In case of scrape/bending/deformation, the
wheel is to be replaced.
2. Hub connected plate
In case of scrape/damage, the hub connected
plate is to be replaced.
3. Bearing (of hub connected plate)
In case of unsmooth operation of the
connected plate or wheel as a result of the
bearing, the bearing is to be replaced.
4. Oil seal
In case of abrasion/damage, the oil seal is to
be replaced.
Procedures for the replacement of hub
connected plate bearing and oil seal cover:
· Clean the interior of hub connected plate.
