Electric Component
MERGE 9-15
Chapter 9
Back to the above operation steps
NOTE:
Wiring of positive/negative poles of the bulb,
wiring position of high/low beam.

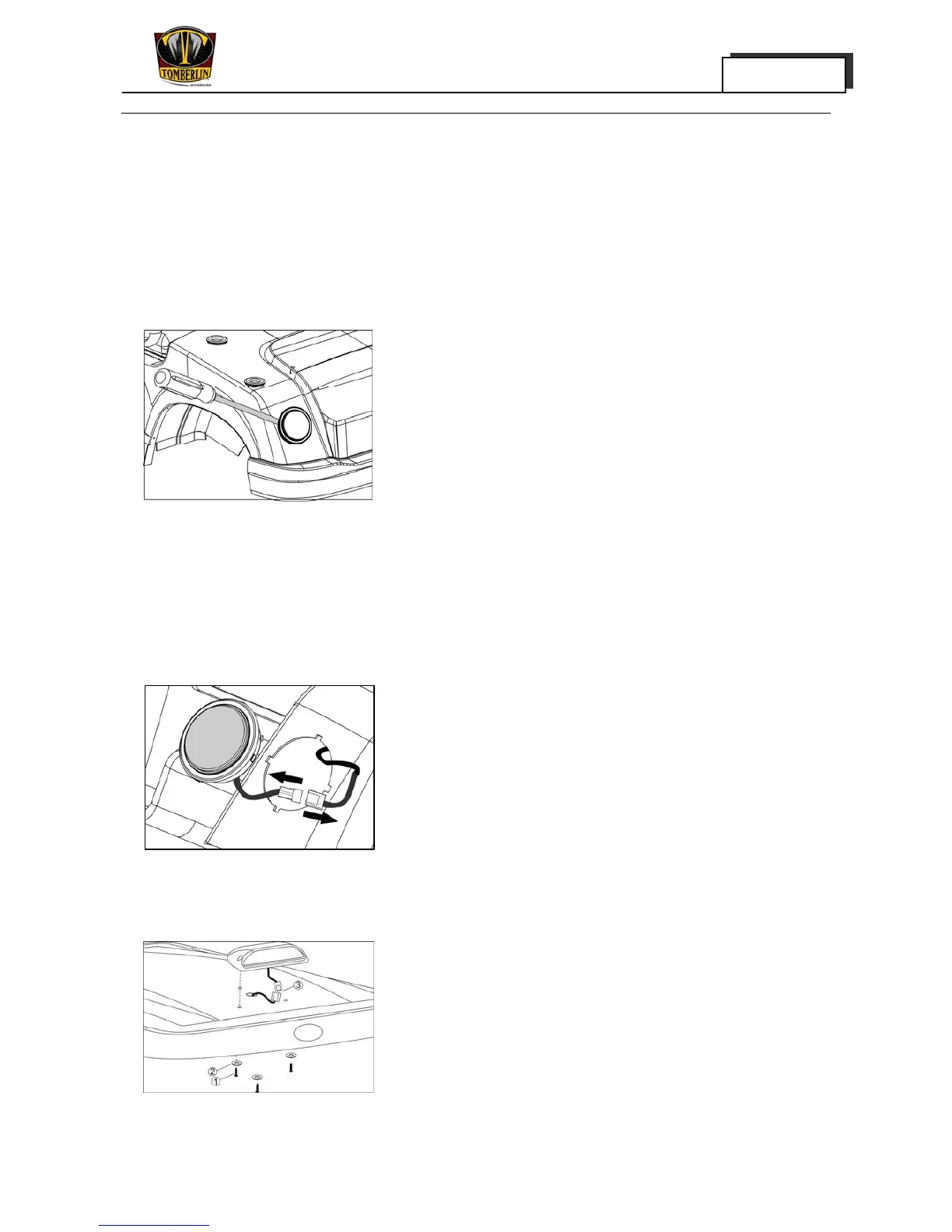

Tail light removal
Any defective or dim tail light shall be replaced.
1. Take out the key from the key switch.
2. Apply the parking brake.
3. Turn Tow/Run switch to TOW.
Please refer to Chapter 1 “Protection for Electrical
Safety”.
4. Remove the tail light with a flat head screwdriver.
CAUTION:
Don't break the 4 snaps on the lens; the tail light
must be replaced if any of them is broken.
5. Disconnect the wire.
Tail light installation
Back to removal steps
High mount stop lamp removal
1. Take out the key from the key switch.
2. Apply the parking brake.
3. Turn Tow/Run switch to TOW.
Please refer to Chapter 1 “Protection for
Electrical Safety”.
4. Remove the screw with a screwdriver①②.
