Electric Component
MERGE 9-8
Chapter 9

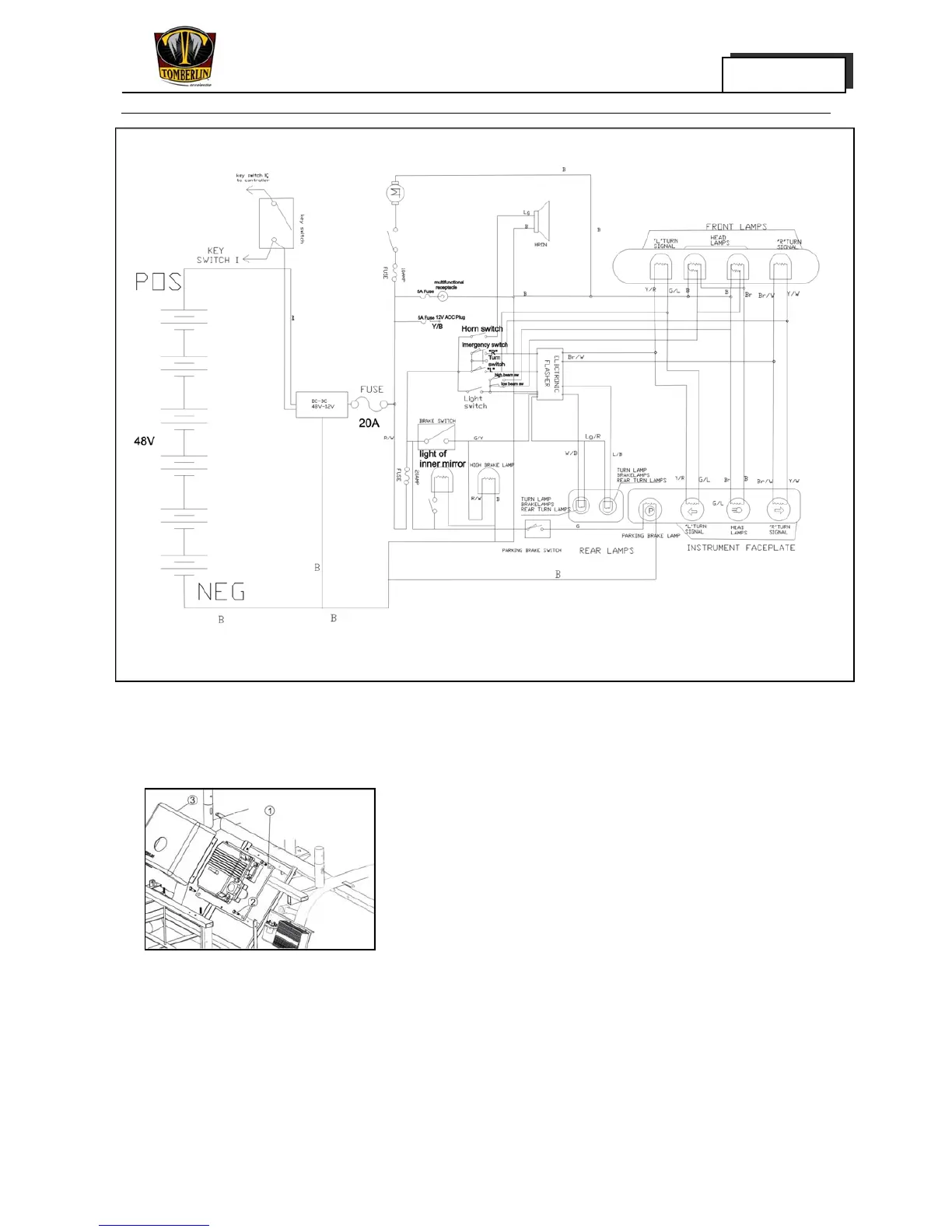

Lighting circuit
10. Unscrew the 4 screws on the controller mount
and remove the controller.
Controller installation
Back to the removal steps.
Check the electric vehicle for normal operation:
• When Forward/Reverse gear switch is on
FORWARD position, make sure the electric vehicle
is running forward.
• When Forward/Reverse gear switch is on
REVERSE position, make sure the electric
vehicle is running backward. When
To Next Page
