Electric Component
MERGE 9-10
Chapter 9
4. Disconnect the battery cable according to the
directions.
Please refer to Chapter 1 “Protection for Electrical
Safety”.
5. Remove the nut on the battery hold down.
6. Remove the battery hold down

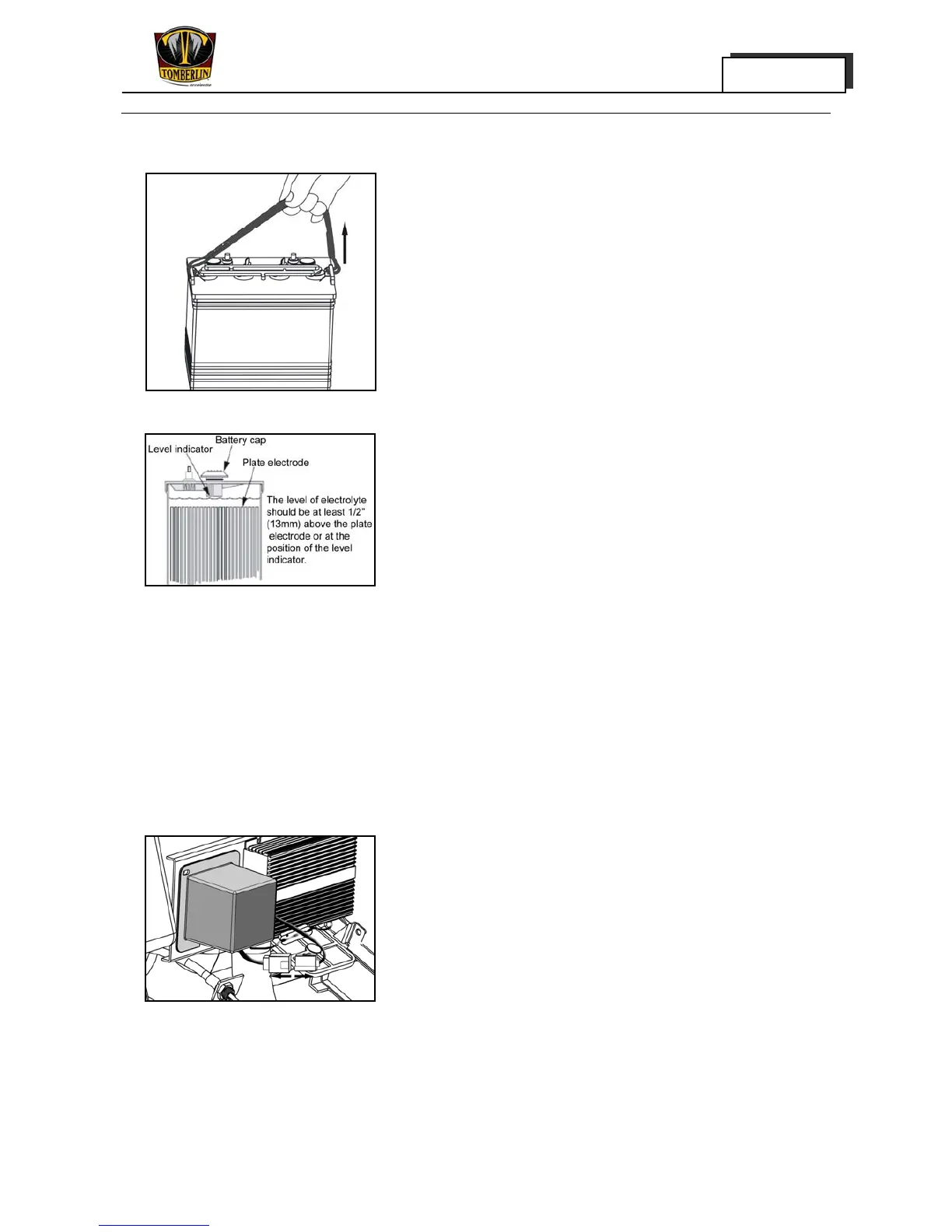

7. Remove the battery with a special battery lifting
tool.
8. Check:
Check the electrolyte level of the battery; add
distilled water to 13mm above the plate electrode
if the level is below the plate electrode.
Battery installation
Back to the removal steps
NOTE:
The battery must be removed with a special
battery lifting tool.
DC converter removal
1. Take out the key from the key switch.
2. Apply the parking brake.
3. Remove the seat pad assembly.
4. Turn Tow/Run switch to TOW.
Please refer to Chapter 1 “Protection for Electrical
Safety”.
5. Disconnect the wire plug-in package of DC
converter.
6. Remove the four set bolts.
To Next Page
