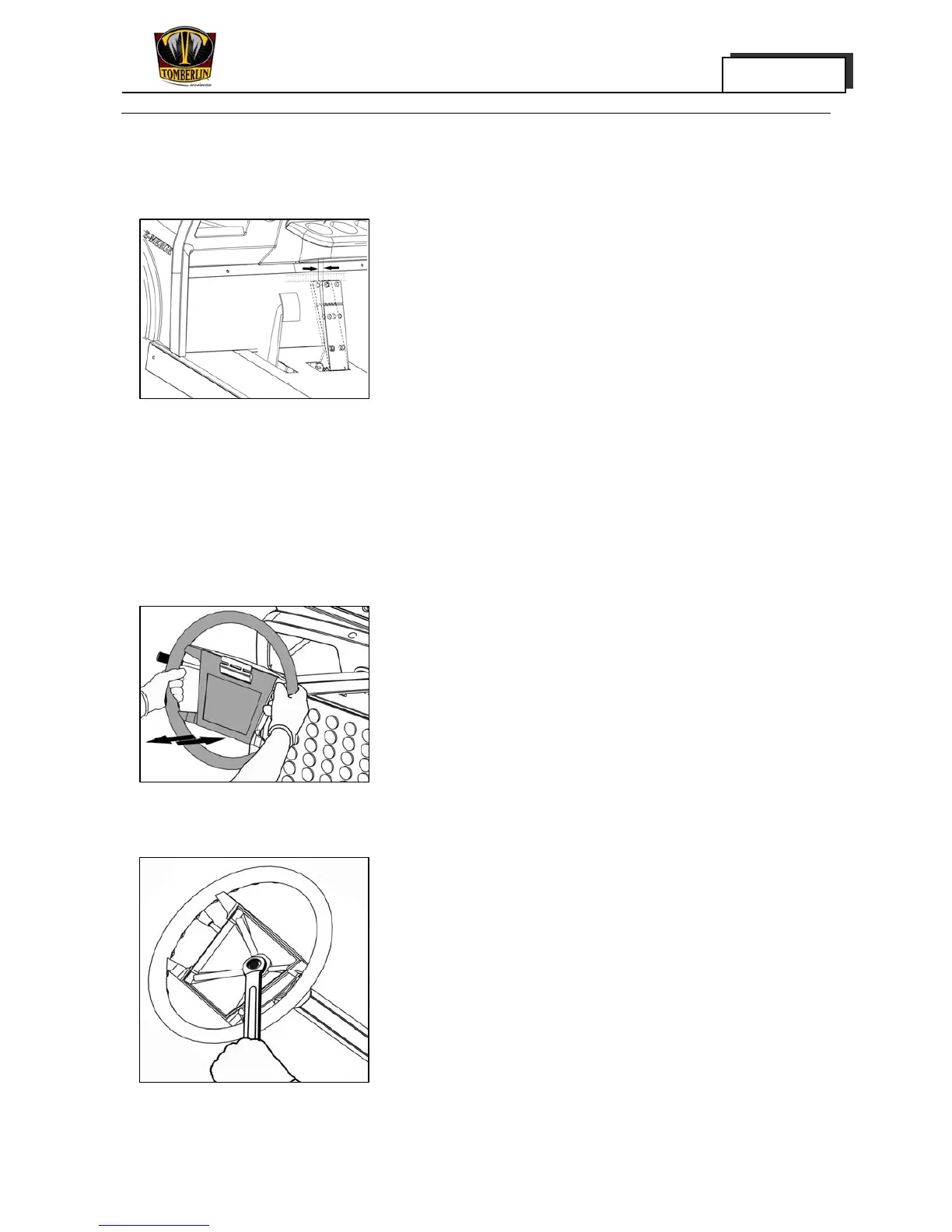

Inspection of the Accelerator Pedal
1. Inspect：
Operating condition of the pedal
In case of unsmooth operation, the pivot should be
lubricated.
2. Inspect：
Lateral free travel of the pedal
4mm (0.158 in)
Step on the pedal and replace the pivot in case the
free play is too loose.
Limit value to the free pedal travel:
95mm (3.74in), measured at the top of the pedal
Inspection of the Steering System
State of the Steering Wheel in Steering Operation
1．Inspect：
Steering clearance
Push and pull or turn the steering wheel. In case of
over-looseness, the steering wheel or cross-pin type
joint bolts should be tightened.
Limit value to steering clearance of steering wheel:
5°(arc length:15.27mm)
2．Tighten:
Nuts (of steering wheel)
Tightening torque to
