Driving Axle
EMERGE 6-1
Chapter 6
Driving axle

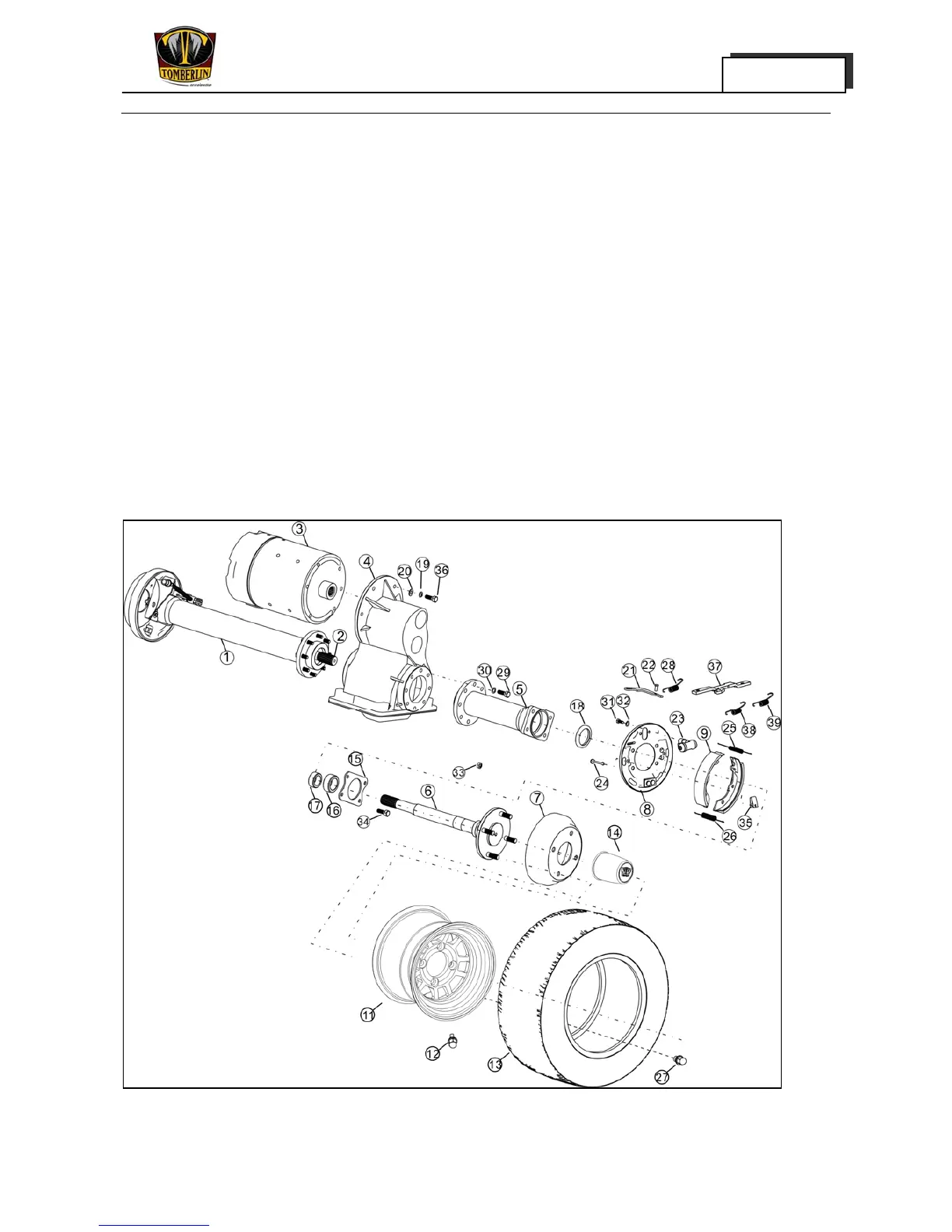

1. Outer tube of left half axle 2. Left half axle 3. Electric motor 4. Differential gear
5. Outer tube of right half axle 6. Right half axle 7. Brake drum 8. Brake base plate
9. Brake shoe plate 10. Cable retaining plate 11. Wheel rim 12. Air valve
13. Tire 14. Wheel rim decorative cover 15.Retaining plate 16. Bearing 6206
17. Bearing fixing bush 18. Oil seal 19. Spring washer 20. Flat washer
21. Brake rocker arm 22. Locating dowel 23. Wheel cylinder 24. Locating dowel
25. Upper tension spring 26. Lower tension spring 27. Wheel nuts 28. Return spring
29. Bolt 30. Spring washer 31. Bolt 32. Spring washer
33. Nut 34. Bolt 35. Clipping spring 36. Bolt
37. Adjusting ratchet 38. Left tension spring 39. Right tension spring
