Regular Inspection and Adjustment
MERGE 2-11
Chapter 2

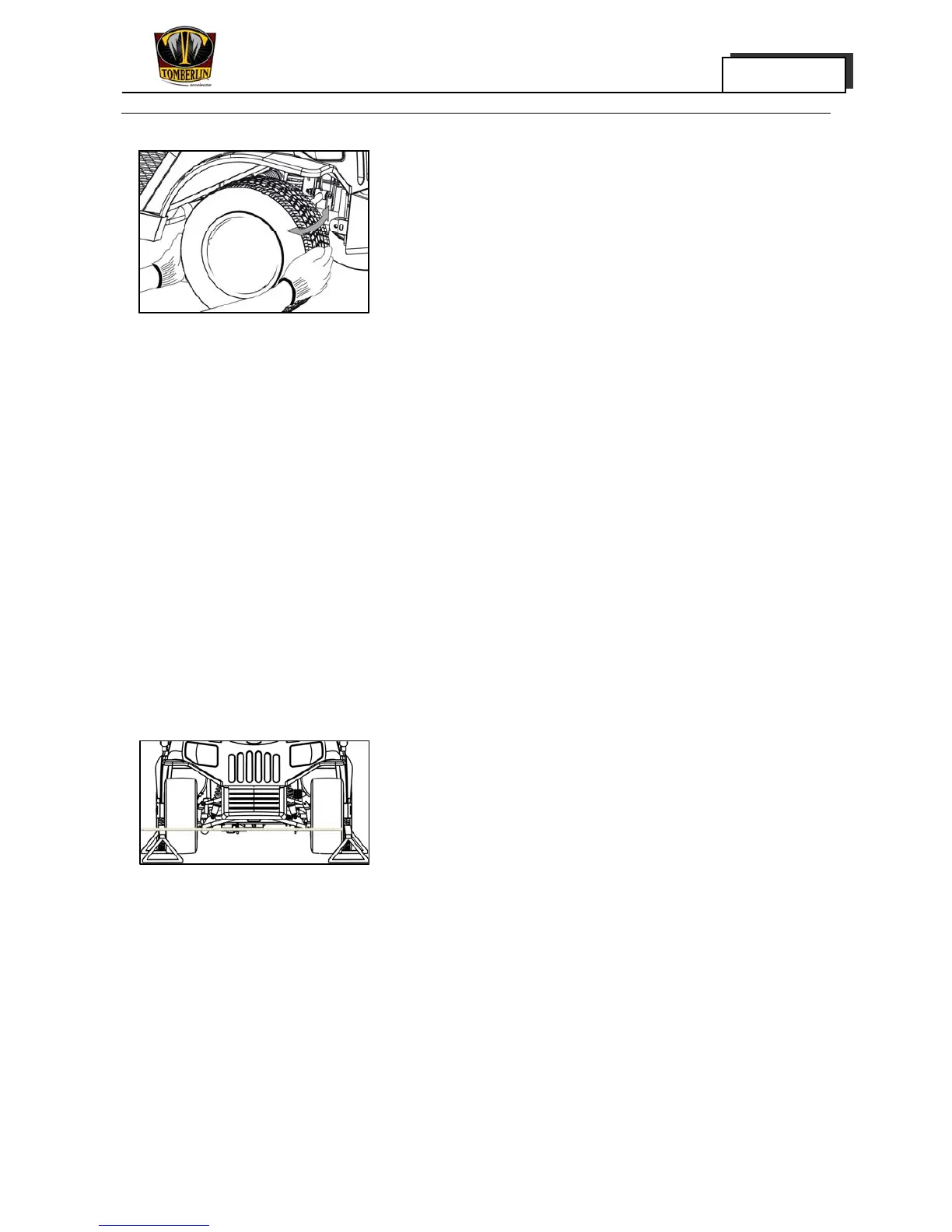

Inspection of Stub Axle
· Free gap of kingpin bolt, spacer and bushing
a. Park the vehicle on flat surface and apply
parking brake
b. Jack up the front wheels of vehicle
c. Move the wheels lightly
In case the free clearance is too large, the bushing is to
be replaced or the bearing clearance is to be adjusted.
Inspection of the Front Wheel Alignment
Toe-in
1. Park the vehicle on flat surface.
2. Push the vehicle straightly ahead for about 20 steps
to stabilize the suspension.
NOTICE:
Do not pull back the vehicle or step on the brake
pedal, as it will leads to changing of toe-in.
3. Measure:
· Toe-in
Empty：5～8mm (0.20～0.32in)
Full load：0-3mm (0in-0.118in)
In case of non-compliance with standard specified,
adjustment is to be made
