Regular Inspection and Adjustment
MERGE 2-4
Chapter 2
Braking System

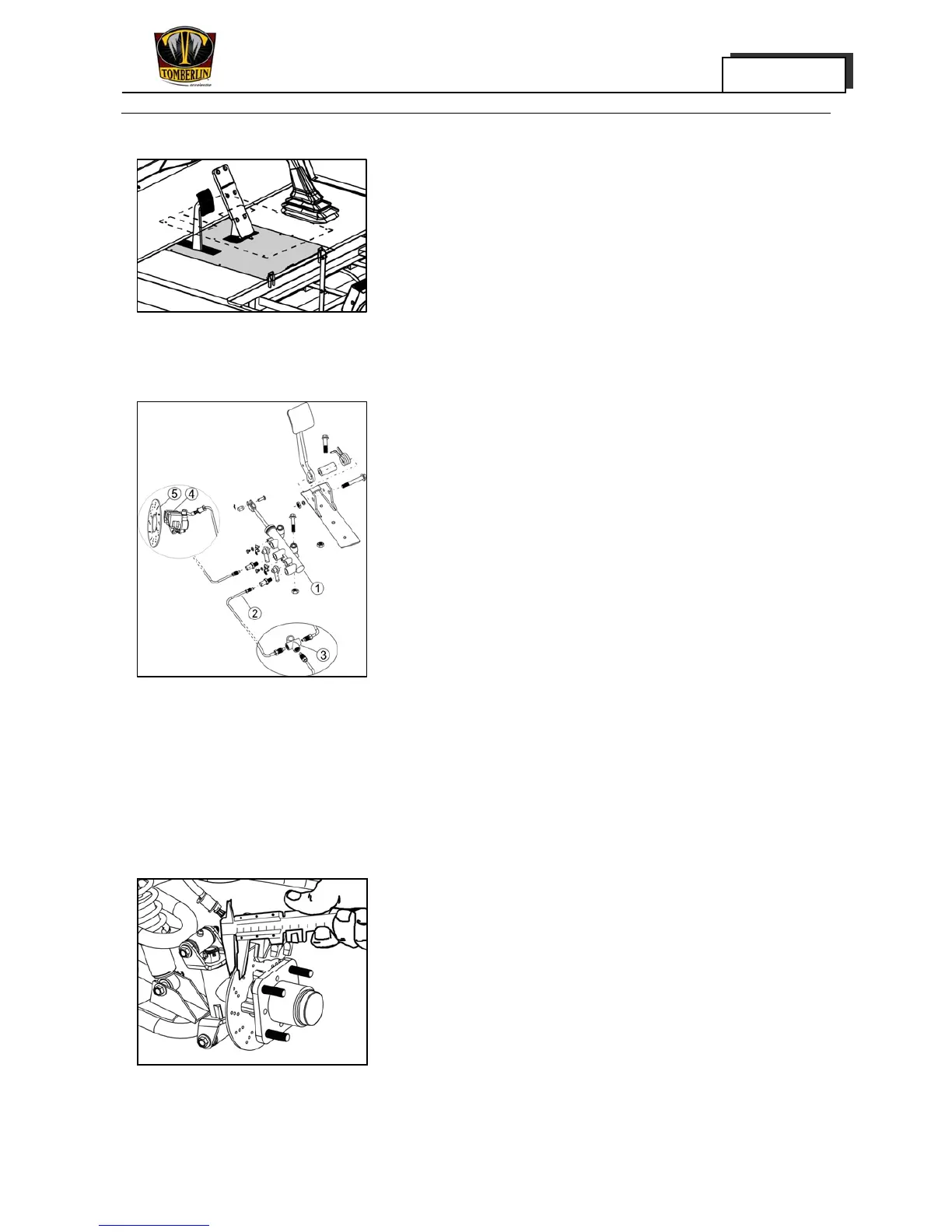

Main Brake Inspection
1. Remove:
· Anti-slip pedal
· Protective cover plate
Care should be taken to avoid scraping the body.
2. Inspect：
· Brake master cylinder ①
· Brake Oil Pipeline ②
· Tee joint ③
· Front wheel brake caliper ④
Oil leakage →if any, replacement is required
· Front wheel brake shoe
Standard thickness
7.0 mm (0.28 in)
Maximum wear value of thickness:
2.5 mm (0.1 in)
· Brake disc
Standard thickness:
4.0 mm (0.16 in)
Maximum thickness wear value:
1.0 mm (0.04 in)
Damaged/defective one is to be replaced
To Next Page
