Front Axle
EMERGE 5-1
Chapter 5
Front axle

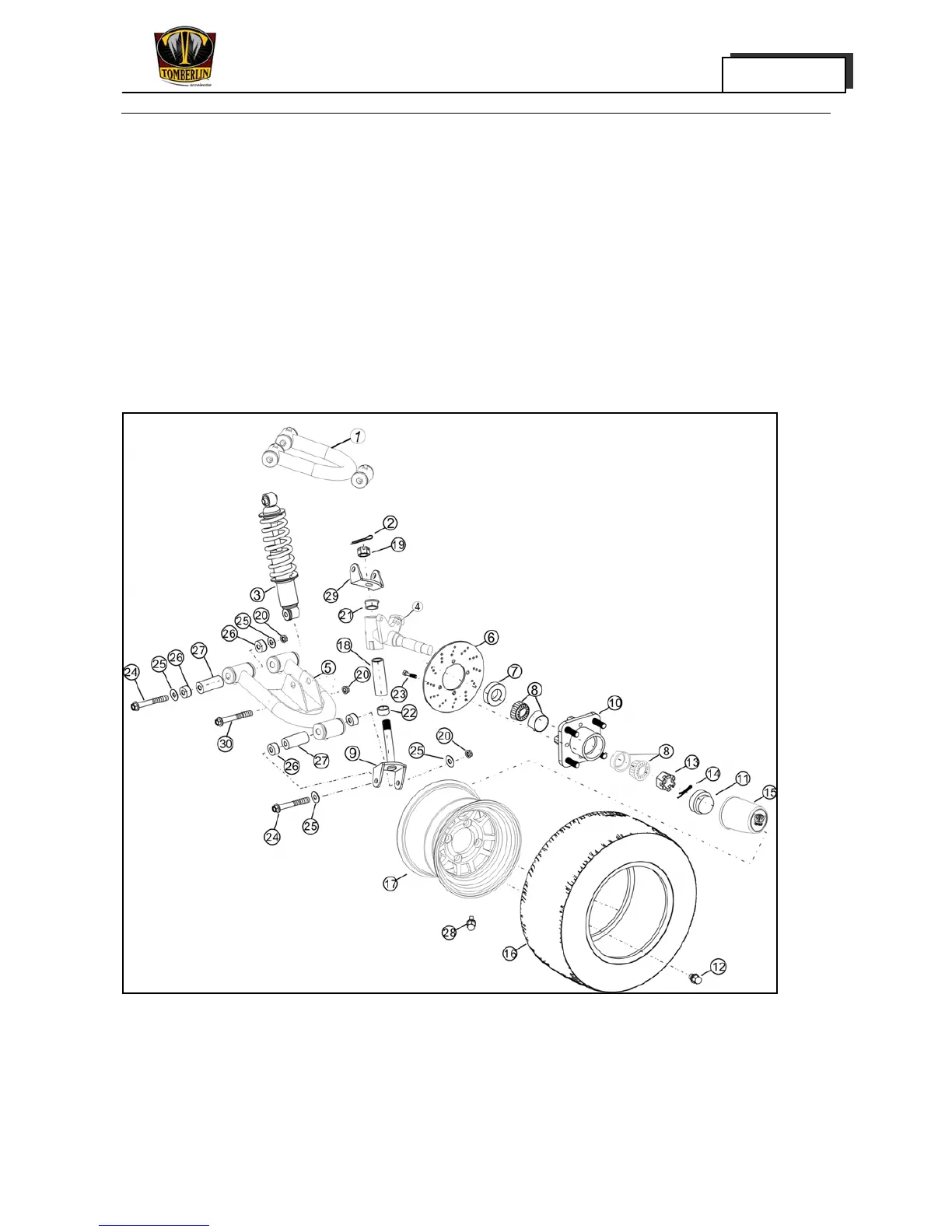

1. Upper swing arm 2. Split pin 3. Front shock absorber 4. Spindle
5. Lower swing arm 6. Brake disc 7. Oil seal 8. Cone bearing
9. Lower lug shaft 10. Hub connected plate 11. Large dust cover 12. Wheel nuts
13. Slotted nut 14. Split pin 15. Wheel rim decorative cover 16. Front wheel
17. Front wheel rim 18. Inside spacer of Spindle 19. Slotted nut 20. Nut
21. Upper bush 22. Lower bush 23. Bolt 24. Bolt
25. Dust cover 26. Nylon bush 27. Inside spacer of swing arm 28. Air valve
29. Upper lug 30. Bolt
