Canopy
MERGE 3-1
Chapter 3

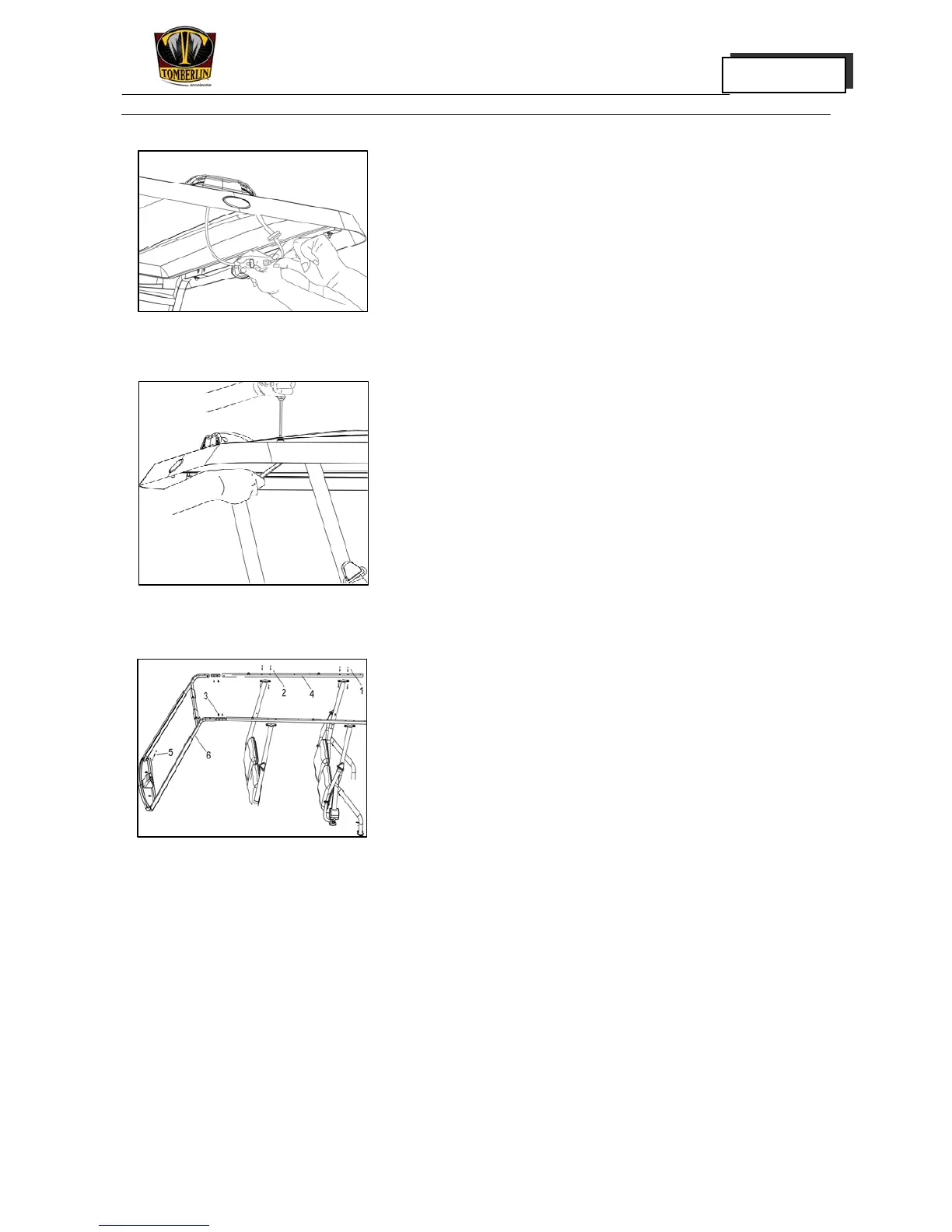

Removal of the Canopy
Remove:
1． Disconnect high－mounted center light wire
2． Fixing bolts of the canopy
3． Canopy
Install:
Canopy
In the reverse order of the removal procedures
Tightening torque：
9N·m (6.6ft·1b)
Removal of Canopy Rods
Remove:
1． Fixing bolt on the rear pillar ①
2． Fixing bolt on the center pillar ②（E-4）
3． Install slip bolt ③
4． Canopy rod ④
5． Fixing bolt of front canopy rod ⑤
6． Front canopy rod ⑥
