Electric Component
MERGE 9-5
Chapter 9

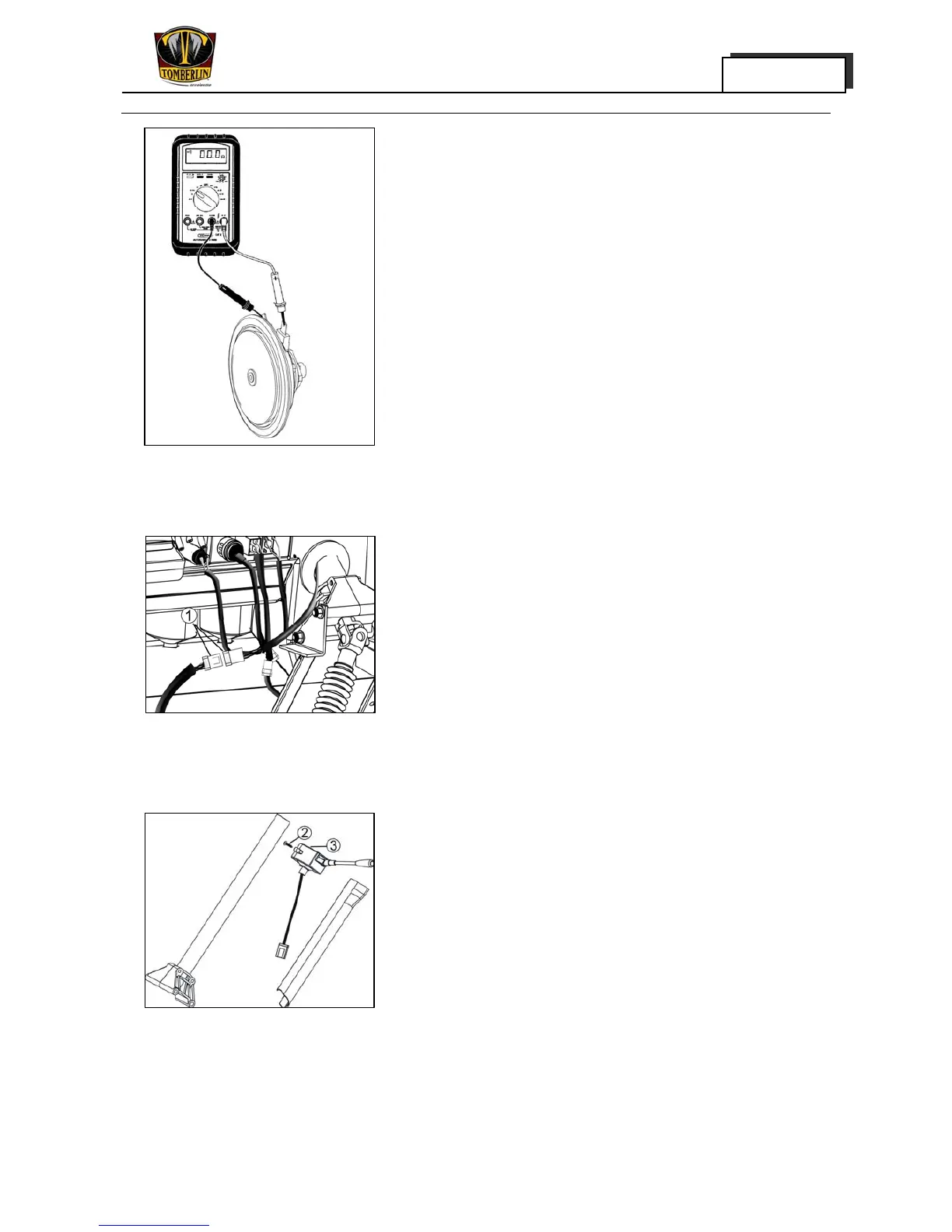

Horn installation
Return to disassembling steps
NOTE:
The horn wire must be connected correctly.
The tightening torque of the horn set bolt is:
9N·m (6.6ft·1b)
Combination switch removal
1. Take out the key from the key switch.
2. Apply the parking brake.
3. Turn Switch Tow/Run to TOW.
Please refer to Chapter 1 “Protection for Electrical
Safety”.
4. Remove the protective sleeve for the wire
harnesses of combination switch.
5. Remove the set bolt ② from the top of the
switch.
6. Remove the instrument panel; refer to the
relevant contents in Chapter 4.
7. Disconnect the wire plug-in package ① of the
combination switch and remove the combination
switch ③.
