Driving Axle
EMERGE 6-8
Chapter 6
Gearbox

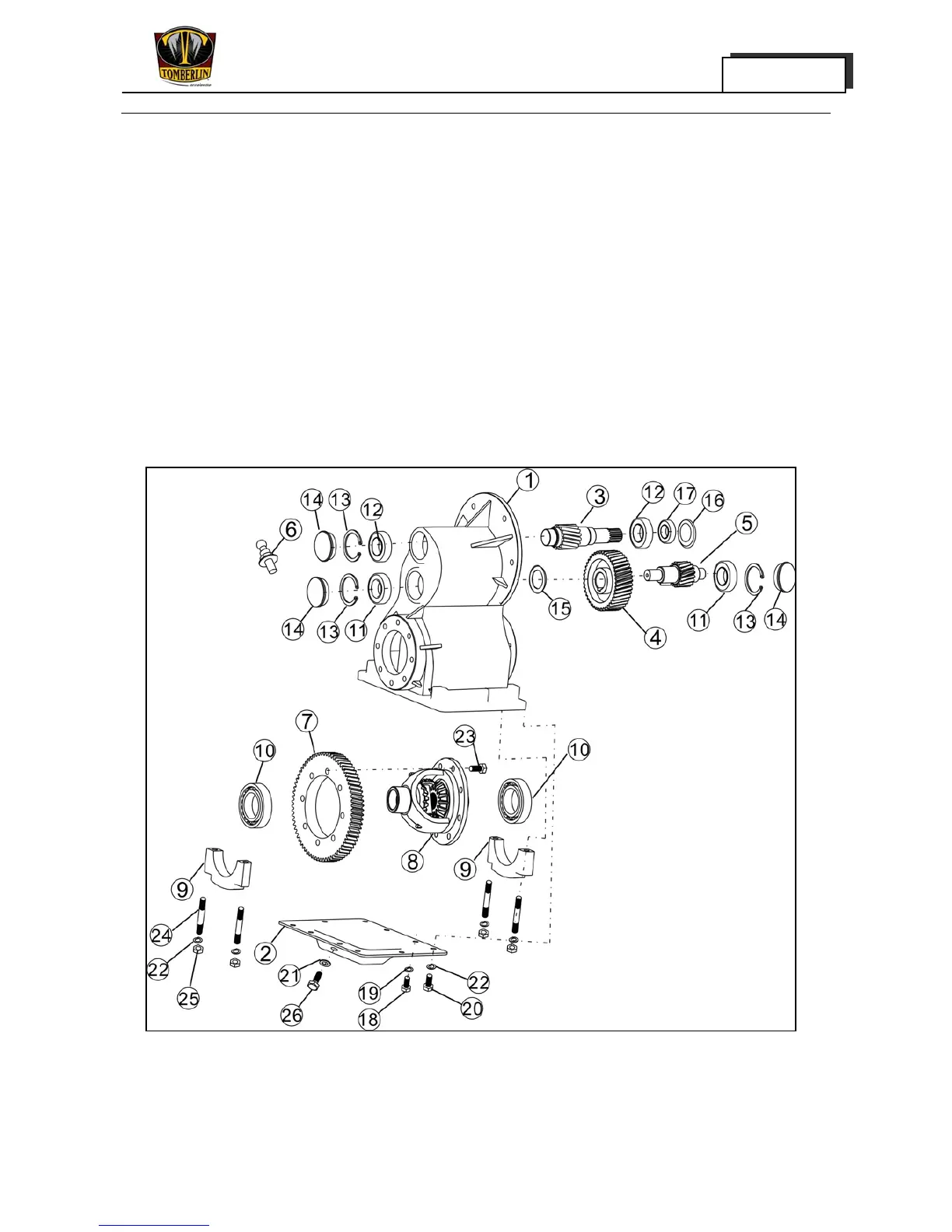

1. Gearbox body 2. Bottom cover of differential gear 3. Input shaft 4. Middle gear
5. Middle shaft 6. Oil filler plug 7. Ring gear 8. Differential gear
9. Bearing pressing block 10. 6008 bearing 11. Bearing 6303RS 12. Bearing 6005RZ
13. Inner clasp 14. Rubber cover 15. Gear bush 16. Oil seal
17. Bearing bush 18. Bolt 19. Spring washer 20. Bolt
21. Copper washer 22. Spring washer 23. Bolt 24. Stud bolt
25. Nut 26. Bleeding bolt
