Driving Axle
EMERGE 6-7
Chapter 6
Procedures for the installation of brake shoe:
· Apply the high temperature grease over the two
ends of the metal support of the brake shoe.
WARNING
In handling the brake shoe, ensure that the
hands are clean and the shoe plate surface is
not tainted with grease.

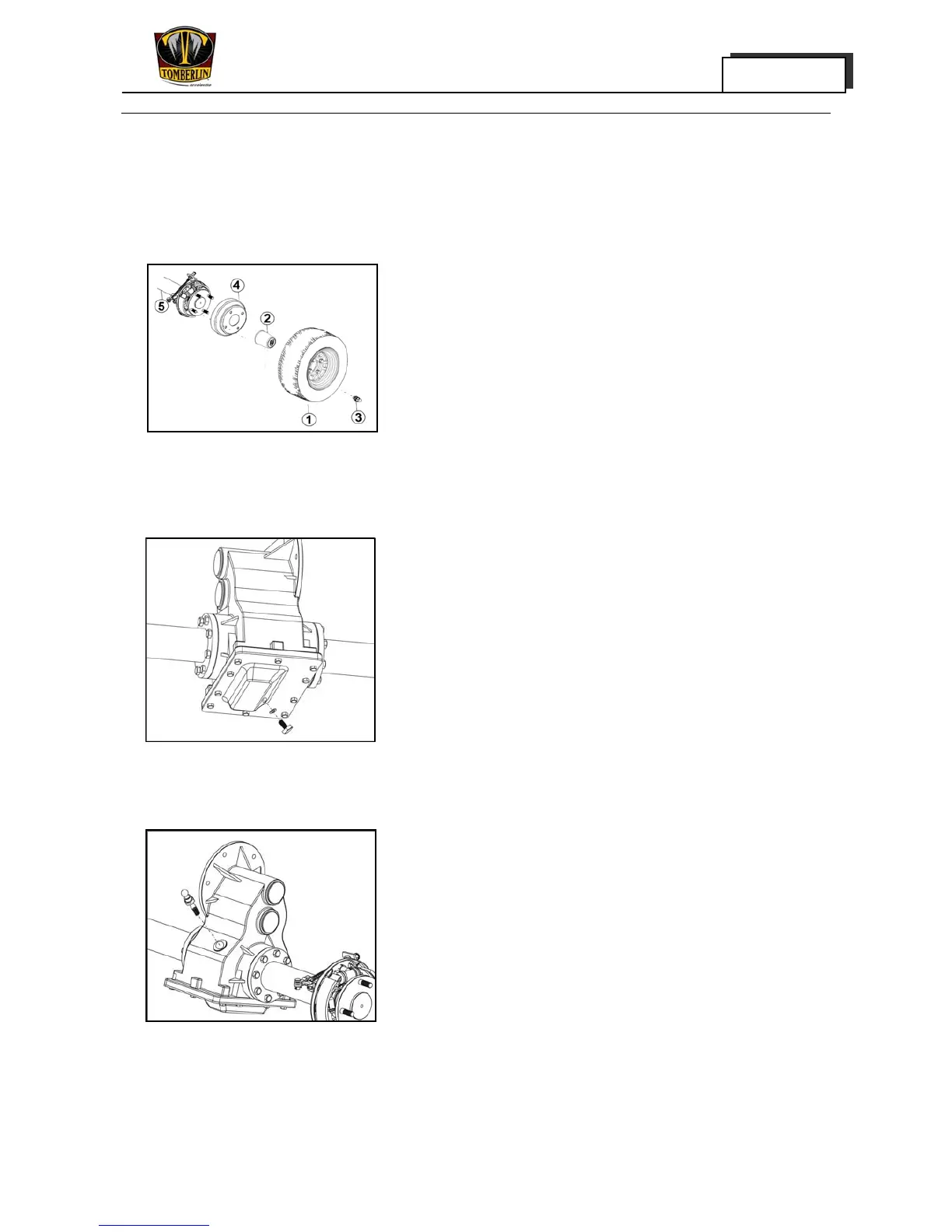

5. Install
· Brake drum
· Rear wheel assembly
· Wheel nut (of rear wheel)
Tightening torque
70N·m (51.7 ft·1b)
6. Install
· Bleeding bolt
Tightening torque
70N·m (51.7ft·1b)
Remarks:
Apply 1100mL lubricating oil (GL -4 or GL- 5) to the
rear axle.
7. Install
· Oil filler screw plug
To Next Page
